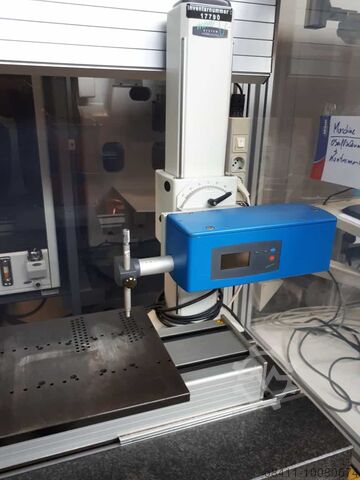

Measuring station for roughness measurement

HOMMEL-Etamic JENOPTIK Wavesystem T 8000 R

Year of construction: 1999, condition: excellent (used), Control: CNC-controlled and manually controlled PC P 2000 MMX-PCI Desktop ATX color screen 15", keyboard CNC-Turbo roughness for WINDOWS Phjdpfx Acjlxyp Ho Hea TECHNICAL DATA Hard stone test plate (DIN 876) length x width 1200 x 500 mm Accuracy grade 2 Flatness 16,6 µm Weight 250 kg Linear feeder Waveline 60 Basic Probe length 60 mm Resolution 0.014 µm Measuring column Wavelift 400 CNC Travel 400 mm Positioning repeatability ˂ 10 µm Device dimension W x D x H 1.8 x 0.8 x 2.2 m Weight 600 kg EQUIPMENT/ACCESSORIES  Complete enclosure with electrically operated roller blinds  hard stone plate 1200 x 500 mm  ISEL-feed axis with ball screw drive  Workpiece mounting plate  Linear feed unit Waveline 20/60  Measuring column Wawelift 400 CNC  Tilting unit KEG 60 at the measuring column, manual to the Waveline  Installation kit for roughness measurement  Installation kit for contour measurement  Various probes and holders for roughness and contour measurements  Instrument table  Emergency stop button on the instrument table  Calibration set  Support prisms  Maintenance unit for compressed air preparation  Air damping elements for mounting the hard stone plate  Documentation

Condition: excellent (used), Year of construction: 2017, For sale is a Jenoptik test table of the type T8000 Wavemove for housings The device was used for housing surface testing as the type describes and is in good to very good condition Year of manufacture: 2017 Weight: 2,500 kg The offer includes the components shown as well as computers and software Loading & or shipping possible for an additional charge Prices plus VAT Podpomfty Hefx Ac Hjha Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit us on our website

Condition: like new (used), Year of construction: 2007, Citizen M32V - Baujahr : 2007 Anbei mal paar Maschinendaten der M32-M332V - Durchlass für Stangen: 32mm Phedexfr Tdjpfx Ac Hsa - 10 Werkzeugplätze auf Revolver mit Y-Achse für Stirn- und Rückseitenbearbeitung - ⁠5 Kammwerkzeugplätze - ⁠3 Werkzeugplätze auf Bohrblock f.Rückseitenbearb. - ⁠4 angetriebene Werkzeuge für Quer - C-Achse Hauptspindel - Fräsinterpolation - schneidenradiuskompensation - ⁠synchron gewindebohren - ⁠ER16 Aufnahmen Juni 2023 – Motor Gegenspindel getauscht Juli 2023 – Tacho Gegenspindel getauscht November 2023 – Kabel Ti-Achse getauscht November 2023 – Motor Ti-Achse getauscht Juni 2024 – Festplatte getauscht Juli 2024 – komplette NC

Condition: good (used), Year of construction: 2007, functionality: fully functional, turning length: 320 mm, spindle speed (min.): 8,000 rpm, bar passage: 32 mm, Machining Data Maximum bar capacity: 32 mm Maximum turning length: 320 mm Maximum drill diameter (front): 12 mm Maximum tapping size (front): M12 Phedpjxb R R Hsfx Ac Hsa Main spindle speed: up to 8,000 rpm Sub spindle speed: up to 8,000 rpm Number of tools: 25 to 27 Dimensions & Weight Dimensions (W x D x H): 2,860 mm x 1,465 mm x 1,900 mm Weight: 4,300 kg 10-position turret Rotating tools for complex machining operations FMB Turbo 3-36

Condition: like new (used), Year of construction: 2004, functionality: fully functional, Citizen M32V - Baujahr : 2004 Anbei mal paar Maschinendaten der M32-M332V - Durchlass für Stangen: 32mm - 10 Werkzeugplätze auf Revolver mit Y-Achse für Stirn- und Rückseitenbearbeitung - ⁠5 Kammwerkzeugplätze - ⁠3 Werkzeugplätze auf Bohrblock f.Rückseitenbearb. - ⁠4 angetriebene Werkzeuge für Quer - C-Achse Hauptspindel - Fräsinterpolation - schneidenradiuskompensation - ⁠synchron gewindebohren - ⁠ER16 Aufnahmen Phedsxfr T Rspfx Ac Hja Februar 2022 – Kugelrollspindel X2 Achse getauscht und Lager gewechselt August 2022 – Regler X2 Achse getauscht September 2023 – Messsystem / Regler Ti-Achse getauscht März 2025 – Messsystem Ti-Achse getauscht

Condition: used, Year of construction: 2019, machine/vehicle number: IntNr231109, Technical data: first-class condition, only approx. 9000 operating hours Fanuc, high-performance CNC control series 31i-B5, 3-channel control, 3 turrets, 12 CNC axes, (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3), Rapid traverse speed 30 mm/min, Bar diameter max. 38 mm, Turning length max. 350 mm, Main spindle, max. speed 7,000 rpm, C-axis 0.001 degrees, Main spindle drive power 11 kW Counter spindle speed max. 7,000 rpm, C-axis 0.001 degrees, Counter spindle drive power 7.5 kW Turret Speed max. 5,700 rpm, (with corresponding tool holder also higher) Turret drive power 4 kW Tool holder stations for a total of 30 (10 per turret) (prepared for internally cooled tools) Tool holder set, (non-driven) Guide bushing unit (pull system, JBS) Oil cooler unit High-pressure conveyor (with integrated high-pressure unit) type Müller combistream CS 3 Coolant: Oil Weight: 6.25 tons Dimensions: (LxWxH) 3477x1860x1865 mm The machine can be inspected under power by appointment. Changes and errors in the technical data and information as well as prior sale reserved! Technical data: first-class condition, only approx. 9000 operating hours Fanuc, high performance CNC control series 31i-B5, 3-channel-control, 3 turrets, 12 CNC axes, (X1/Z1/Y1/C1/X2/Y2/YA2/C2/X3/Z3/Y3), rapid traverse speed 30 mm/min, bar diameter max. 38 mm, turning length max. 350 mm, main spindle, speed max. 7,000 rpm, C-axis 0.001 deg, main spindle drive power 11 kW Counter spindle speed max. 7,000 rpm, C-axis 0.001 deg, counter spindle drive power 7.5 kW Turret speed max. 5,700 rpm, (with appropriate tool holder also higher) turret drive power 4 kW Psdpjx Hib Dofx Ac Hjha Tool holder stations for a total of 30 (10 per turret) (prepared for internally cooled tools) Tool holder set, (non-driven) Guide bushing unit (tension system, JBS) Oil cooler unit High-pressure conveyor (with integrated high-pressure unit) type Müller combistream CS 3 coolant application: oil Weight: 6,25 to Dimensions: (LxWxH) 3477x1860x1865 mm The machine can be inspected under power by appointment. Changes and errors in the technical data and information and subject to prior sale!
