Folding Machine

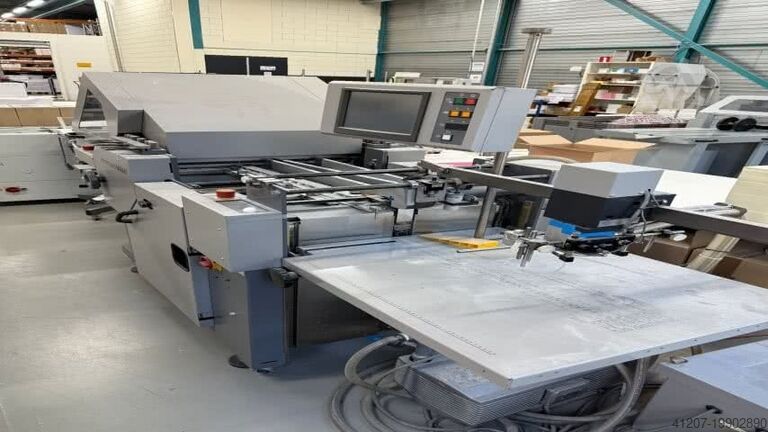

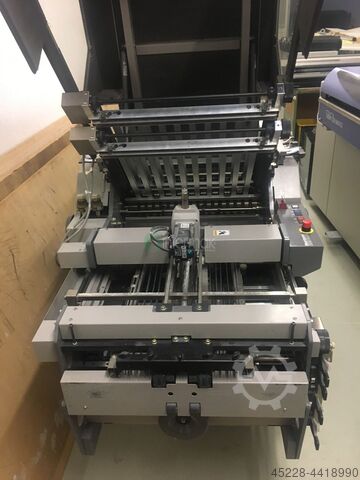

Horizon AFC-544 AKT

The Horizon AFC-544 AKT is a versatile cross folder currently in operation at a printshop in Germany. Designed for sheet sizes up to 540 x 760 mm (minimum 120 x 172 mm), it combines efficiency with flexibility for a wide range of folding applications. The machine features 4 buckles with knife in the first folding unit and 2 buckles in the second unit, supported by a fully automatic knife for precise folding.
Bwodpfx Aew Upqmebmjw



Equipped with Zolltouch & work Zoll technology, it offers intuitive operation and includes 17 standard folding types preprogrammed, along with memory capacity for 200 repeat jobs. Capable of handling paper weights from 40 to 250 g/qm2, it delivers a maximum speed of 40,000 cycles per hour.



Additional specifications include:



Fold length: minimum 58 mm (1st buckle), 35 mm (other buckles)



Pile height: 650 mm



Power: 400V / 50Hz ??? 2.5 kW



Dimensions: 2,700 x 1,050 x 1,650 mm



Weight: 1,050 kg (without conveyor)



This machine offers a compact, high-performance solution for professional folding needs, combining automation, memory functions, and robust engineering.
Format: 540 x 760 mm

Equipment:
4-buckles cross folder
Parallel fold
Crossfold
Technology: touch & work
Memory folding types:
17 standard-typs of fold preprogrammed
- Saveable jobs: 200 memories for repeat orders
1.folding unit: 4 buckles + knife
2.folding unit: 2 buckles
Knife: full automatic
Sheet size:max. 540x760mm; min. 120x172mm
- Fold length:1. buckle: min. 58mm all other buckles: min. 35mm
Paper weight: 40-250g/sqm
Pile height: 650mm
Speed: max. 40.000 cycles/h
Power: 400V/50Hz - 2,5kW
Dimensions: 2.700x1.050x1.650mm
Weight: 1.050kg
(without conveyor)
