CNC Lathe

Hwacheon Cutex 160

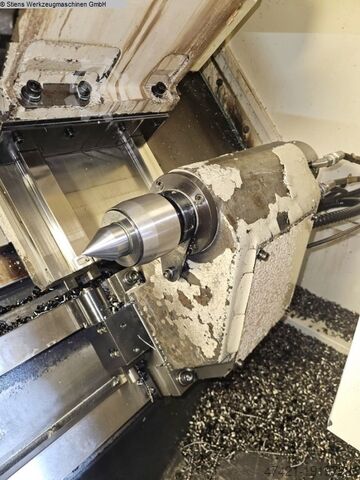

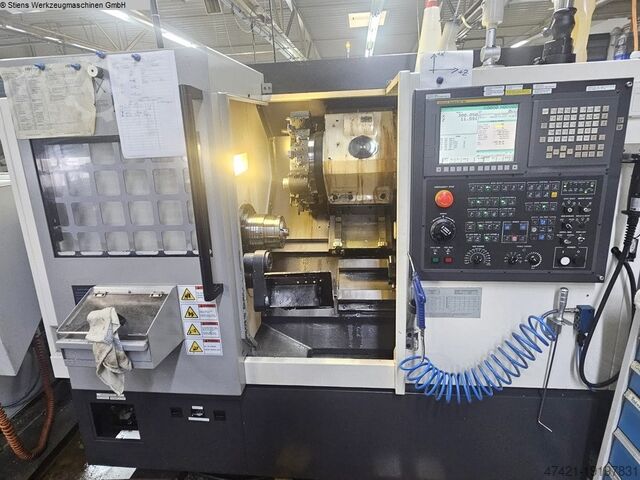

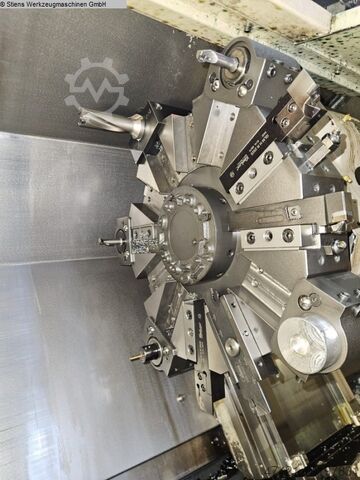

Condition: used, Year of construction: 2013, functionality: fully functional, HWACHEON - Cutex 160 B Offer Details Stock Number: 1039-9338 Machine Type: CNC Lathe Manufacturer: HWACHEON Model: Cutex 160 B Year of Manufacture: 2013 Control System: Fanuc Oi-TD Location: D-59302 Oelde Country of Origin: Korea Delivery Time: by arrangement Freight Terms: ex location Additional Information: Chedpfx Agjxt N I Ieded CNC Lathe HWACHEON - Cutex 160 B Operating Hours: - Control on: approx. 26,932 h - Machining time: approx. 7,546 h WE OFFER YOU: - Workshop-inspected machines - Free loaded on truck - NO auction fee - Delivery possible (at extra cost) - Unloading and commissioning (at extra cost) Technical Details Turning diameter max.: 300 mm Turning length max.: 284 mm Control: Fanuc Oi-TD Swing diameter over bed: 550 mm Chuck diameter: 210 mm Spindle nose: A2-6 Main Spindle: Max. speed: 4,500 rpm Spindle bore: 62 mm Bar capacity: 51 mm Spindle bearing diameter: 100 mm Main spindle drive power: 11 / 7.5 kW Travel: X-axis travel: 170 mm Z-axis travel: 335 mm Tool Turret: Number of tool stations: 12 positions Tool size: Ø25 x Ø40 mm Feed Rates: Rapid traverse (X / Z): 36 / 36 m/min Tailstock: Quill diameter: 60 mm Quill stroke: 80 mm Tailstock taper: MT 4 Total power requirement: 25 kVA Machine weight approx.: 3.2 t Space requirement approx.: 8.5 x 2.5 x 2.0 m Accessories - Documentation - Chip conveyor - Coolant system - Tailstock - Signal lamp - Parts catcher - Hydraulic unit - 3-jaw chuck: SEOAM CAH-08 - Collet chuck: HAINBUCH nova size 65 - Tool measurement - Interface for bar feeder - Bar loading magazine: Breuning SIMAG 70.1-3000 - Various toolholders

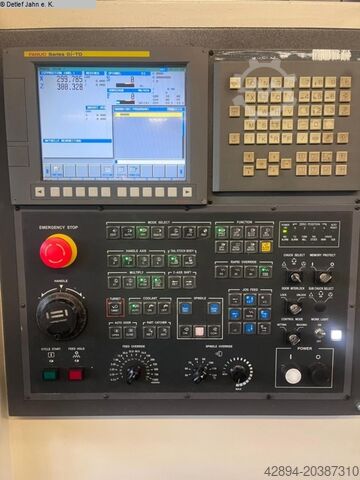

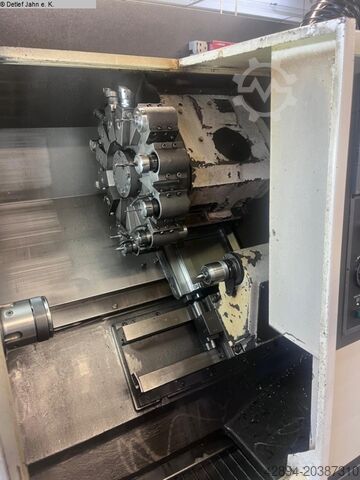

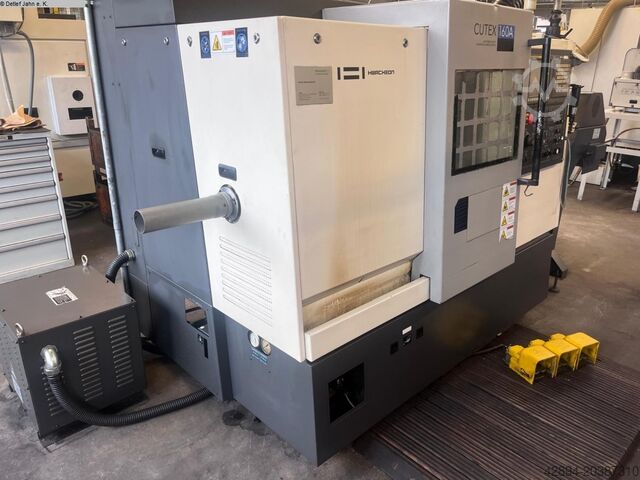

Condition: used, Year of construction: 2012, turning diameter 300 mm turning length 300 mm control Fanuc Oi-TD greates pass round over bed 550 mm spindle passage 45 mm spindle speed: 6000 U/min spindle motor 11/7,5 kW no. of tools in turret 1 12 rapid traverse 36/36 m/min range L-W-H 3,9 x 1,65 x 2,0 mm chip conveyor ja/yes Number of working hours 3527 h weight of the machine ca. 3300 t CNC lathe Hwacheon CUTEX 160A, built in 2012 12-station tool turret Fanuc 0i TD control Manual Guide user interface Foot switch for clamping devices Chodpfx Agoxrgtrsded Fanuc drives Chip conveyor Automatic tailstock Programmable quill Hydraulic unit Electric handwheel Coolant system 6 BAR Central lubrication Standard tool holder Tool measuring arm Tool life monitoring Oil mist extraction system Accessories: 7 boring bar holders, 1 Kitagawa B-206 chuck Chuck Ø 169 mm Technical data: • Swing diameter over bed: 550 mm • Max. turning diameter: 300 mm • Standard turning Ø 170 mm • Max. turning length: 300 mm • Chuck size: 6" Spindle • Spindle nose (ASA): A2-5 • Max. spindle speed: 6000 rpm • Spindle bore Ø: 56 mm • Max. bar capacity Ø: 45 mm • Spindle motor: 11/7.5 kW Turret • Number of tool turret stations: 12 positions • Turret change time (s/stations): 0.15 Feed rates • Rapid traverse X-axis: 36 m/min • Rapid traverse Z-axis: 36 m/min • Max. travel X-axis: 170 mm • Max. travel Z-axis: 335 mm • Feed motor X/Z: 3.0/1.8 kW Tailstock • Quill diameter: 60 mm • Quill stroke: 80 mm • Taper bore/tailstock mount: 4 MK Translated with (free version)

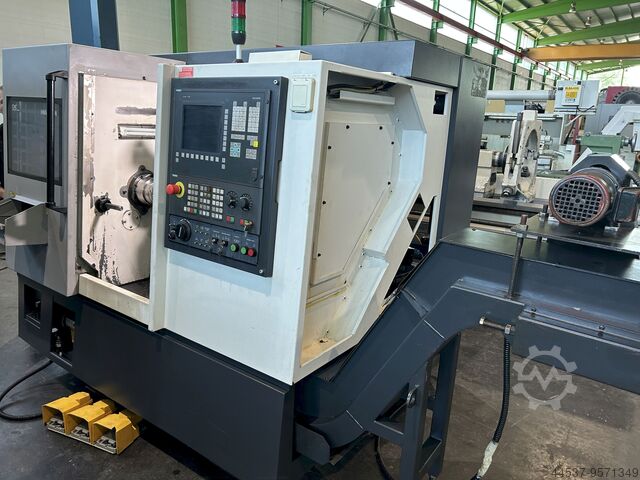

Condition: excellent (used), Year of construction: 2007, Hwacheon Cutex 160 CNC lathe Cedjxptymjpfx Agdohd

Condition: used, Year of construction: 2013, turning diameter max. 300 mm turning length max. 284 mm control Fanuc Oi-TD turning diameter over bed 550 mm chucking diameter 210 mm spindle nose A2-6 Max. rpm 4.500 min/-1 spindle bore 62 mm bar material dia. 51 mm spindle bearing diameter 100 mm power capacity - main spindel 11 / 7,5 kW travel -x axis 170 mm travel -z axis 335 mm number of toolpositions 12 pos. Tool size Ø25 x Ø40 mm rapid traverse ( X / Y / Z ) 36 / 36 m/min dia. of quill 60 mm quill stroke 80 mm taper of center MT 4 total power requirement 25 kVA weight of the machine ca. 3,2 t dimensions of the machine ca. 8,5 x 2,5 x 2,0 m CNC-Lathe HWACHEON - Cutex 160 B Operating-Hours: Chjdpfx Agewl N Riodjd - Control on: ca. 26,932 hours - Processing time: ca. 7,546 hours
