CNC portal milling machine - 5 axes - simultaneous

IGREK 3500 XXL

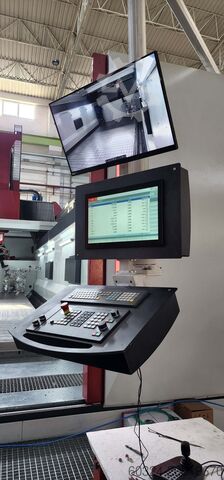

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,000 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 18,000 rpm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 30 m/min, torque: 38 Nm, overall weight: 65,000 kg, Initial commissioning: 2012 Control system: Heidenhain iTNC 530 X-axis: approx. 7,000 mm Y-axis: approx. 3,500 mm Z-axis: approx. 2,000 mm A-axis: ± 100° C-axis: ± 360° Clamping table: 6,000 x 3,000 x 160 mm (sunken) with 18H12 T-slots / 250 mm spacing 2-axis milling head VH 12 Spindle power: 24 kW Spindle speed: max. 18,000 rpm Torque: max. 38 Nm Tool holder: HSK 63A Linear axis drives Feed rate X, Y, Z axes: up to 50 m/min / 30 m/min Axis acceleration X, Y, Z axes: up to 2.5 m/s² Connection data Voltage: 400 V Frequency: 50 Hz Main fuse: 200 A Power consumption: 85 kVA Dimensions, weights Machine footprint without peripherals: approx. 10,000 x 6,650 x 5,900 mm Total weight: approx. 65,000 kg Dsdpfxeyrdc Ej Aktjkn Additional equipment - Double-sided access doors - 10-position tool changer Optional at extra cost: - Wireless probe - Heidenhain remote diagnostics Machine condition Fully functional, very good condition. Can be inspected under power. !!! The machine was completely mechanically overhauled in 2022 !!!

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: 9101, travel distance Y-axis: 4,600 mm, travel distance Z-axis: 1,600 mm, rotational speed (max.): 6,000 rpm, Equipment: rotational speed infinitely variable, Machine configuration: • PowerPortal4000 • 45° diagonal milling head (C 0.01° / A 0.01°) • Camera system integrated in SHW diagonal milling head • 4-point Hirth-type milling head interface • Heidenhain TNC 7 • HR 550 FS handwheel • Heidenhain optimization for 5-axis machining • X = freely selectable, Y = 4,600 mm, Z = 1,600 mm • ToolCenter with 90 tools Djdpfx Ajygtnaoktjkn • Coolant system 2,500 l • Coolant pump 70 bar / 30 l/min • Coolant/air switching • Wash gun in the working area • Main drive 75 kW up to 6,000 rpm • Tool holder SK 50 BIG-PLUS • Panelling and grating • Double chip conveyor • SHW-UniScan • Sealing air • Operating mode 3 • Hexagon wireless probe • LED workspace lighting • Second camera in the working area

Condition: new, Year of construction: 2025, Ref. -No.: 10463 Manufacturer: IGREK Type: FR 3500 XL Year of construction: 2025 Type of control: CNC-Steuerung Control: Siemens 840 D / Heidenhain iTNC 640 Storage location: Istanbul Country of origin: Türkiye X-Travel: 6500 mm Y-Travel: 3500 mm Z-Travel: 1400 mm A-Axis: +/- 115 ° C-Axis: 360 ° Turning Speeds: 12500 RPM Max. Torque: 235 Nm Rapid Traverse X/Y/Z: 30 m / min Djdpfx Asxmd Szjktjkn Table-Size (Lxw): 2290 - 6490 x 3580 mm Drive power spindle: 54 kW Table load max.: 4000 kg Tool Taper: HSK-A100 Machine length: 11500 mm Machine width: 7400 mm Machine Height: 6600 mm Weight: 120 t Further information: IGREK FR 3500 XL – Precision and performance at the highest level The IGREK FR 3500 XL is a CNC-controlled 5-axis portal milling machine of the latest generation (year of manufacture 2024). It was specially developed for the demanding machining of large workpieces and impresses with its versatility and precision. With a modern control system from Siemens 840D or Heidenhain iTNC 640 and a robust construction, the machine offers optimal conditions for manufacturing in a wide range of industries. Key features: Large machining areas: With travel distances of 6,500 mm (X), 3,500 mm (Y) and 1,400 mm (Z), the machine is ideal for machining large components. 5-axis simultaneous machining: The A-axis with a swivel range of +/- 115° and the C-axis with a rotation of 360° enable highly precise machining of complex geometries. Powerful spindle: The spindle reaches speeds of up to 12,500 rpm and a maximum torque of 235 Nm – perfect for demanding milling work. High stability: The machine weight of 120 tons and the table load of up to 4,000 kg ensure low-vibration machining even with heavy workpieces. Flexible tool holding fixture: The HSK-A100 tool holding fixture enables quick tool changes and optimal process times. Rapid feed rate: High productivity is achieved with 30 m/min in the X, Y and Z directions. Technical data at a glance: Table size: 2,290 – 6,490 x 3,580 mm Spindle power: 54 kW Max. torque: 235 Nm Tool holder: HSK-A100 Machine dimensions (LxWxH): 11,500 x 7,400 x 6,600 mm Max. table load: 4,000 kg The IGREK FR 3500 XL sets new standards in the machining of large parts. It is available immediately and offers comprehensive warranties and services directly from the manufacturer, internationally and across the board. Use the latest technology for your production – contact us for further details!

Condition: good (used), Year of construction: 1999, functionality: unexamined, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 2,050 mm, total length: 13,000 mm, table length: 5,000 mm, table width: 3,000 mm, total width: 8,000 mm, spindle speed (min.): 12,000 rpm, total height: 6,000 mm, table load: 50,000 kg, overall weight: 120,000 kg, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, HEYLIGENSTAEDT HEYMUNILL 3200-P heavy-duty portal-type machining center with fixed cross beam, designed for processing large and heavy workpieces. Large working area with travel distances of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, table size approximately 5,000 x 3,000 mm, and table load capacity of approx. 50,000 kg. Portal clearance approx. 3,220 mm width / 2,050 mm height. 5-axis machining / milling heads A and B axes (swivel axes in the milling head) C axis (360° rotation) Simultaneous 5-axis machining possible (with fork milling head) Milling heads: Straight milling head FK 120/340 90° angular milling head WFK 100/750M Fork milling head FK 100/2D Milling head magazine: Dkodpfxey Anrte Aktsn 5 positions automatic milling head changer Additional equipment: ICS approx. 7 bar 32-position tool changer (SK50, Fibro ATC 32/50) Tool holder SK50 (DIN 69871) Tool length measuring system (laser) Chip conveyor Coolant system Adaptive feed control Heidenhain linear measurement systems X/Y/Z

Condition: like new (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,500 mm, total length: 10,500 mm, table length: 6,000 mm, table width: 3,000 mm, total width: 7,475 mm, spindle speed (min.): 2,670 rpm, spindle speed (max.): 18,000 rpm, total height: 5,380 mm, table height: 300 mm, FPT INDUSTRIE DINOMAX 3 MOVABLE BRIDGE MILLING MACHINE TECHNICAL SPECIFICATIONS Brand: FPT Industrie Model: Dinomax 3 Year: 2016 CNC: Heidenhain TNC 640 Table: 6000 x 3000 X-axis travel: 7000 mm Y-axis travel: 3200 mm Z-axis travel: 1500 mm 40-tool magazine: (25 ISO 50 positions / 15 HSK A63 positions) Pick-up system for tool magazine, 3 positions Internal coolant system, 20 Bar Swarf filter Video surveillance system during machining AutoCal (automatic calibration software) MAPR (ISO 50 measuring and alignment probe) Dkjdpfx Akjy Ta Tketjn MRLUL (verification laser probe)

Condition: good (used), Year of construction: 2018, Ref. -No.: 10643 Manufacturer: FERMAT Type: Gantry Year of construction: 2018 Type of control: CNC Control: Siemens Sinumeric Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 20000 mm Y-Travel: 7800 mm Z-Travel: 2000 mm Dedpfjyzpxfjx Aktekn W-Travel: 1000 mm Turning Speeds: 20000 RPM Speed work spindle: 0 - RPM Max. Torque: 3294 Nm Rapid Traverse X/Y/Z: 40000 m / min Table-Size (Lxw): 20000 x 5000 x 300 mm Power Capacity: 74 kW Headstock - (spindle diameter): 160 mm Further information: - Tool cooling - Low pressure - Tool cooling - High pressure 50 bar (6,000 liters) - Tool cooling - Oil separator - Sludge pump - Machine enclosure (CE) - Electrical - Linear measurement - Electrical - Remote diagnostics - ATC/Robot Robot 140 - Chip conveyor 2 - Operator cabin / protective screen - Electrical - HH iTNC 640 control system - Electrical - Handwheel - Electrical - Air conditioning for the distributor - Head - Type 2x UHA 0.001 The machine can be viewed while powered on by prior arrangement.

Condition: used, Year of construction: 1996, functionality: limited functionality, CNC-Planer-Type Milling M/C - Double Column (Milling and Turning Center) | Brand: DÖRRIES SCHARMANN | Type: 4FZT | Year of construction: 1996 A high-performance gantry milling machine designed for machining large workpieces. Its primary applications include the milling and turning of large, complex workpieces. Dodpeyuptzsfx Aktjkn The machine can be inspected under power by appointment. Condition: Consistent with the year of manufacture; some parts require refurbishment. - A high-quality machine, and therefore well worth modernization / a complete overhaul / highly recommended. TECHNICAL SPECIFICATIONS: Main Dimensions: - Machine width: 13.230 mm - Machine height over the floor: 8.450 mm - Machine length: 31.100 mm - Working length: 11.000 mm - Clearance width: 4.400 mm - Clearance height from the table surface to the spindle nose of the standard milling head: 3.000 mm Table: - Table width: 3.450 mm - Total table length: 13.400 mm - Length of individual table: 6.200 mm - Total clamping area: 3.450 x 11.000 mm - Clamping area of single table: 3.450 x 5.000 mm - Maximum total workpiece weight: 112 tons - Maximum workpiece weight per table: 80 tons Crossbeam: - Travel: 2.000 mm Milling and boring support: - Drive power for milling and boring (spindle): 80 kW - Max. speed of the drive shaft (spindle): 2.500 rpm EQUIPMENT / ACCESSORIES: - 2 tables - 8 machining heads - Control: SINUMERIK 880 - 2 x chip conveyors - Documentation - CE marking No guarantee for completeness and accuracy of technical data and equipment. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: used, Year of construction: 1998, functionality: unexamined, machine/vehicle number: 3.8009, travel distance X-axis: 10,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,200 mm, feed length X-axis: 10,000 mm, feed length Y-axis: 3,500 mm, feed length Z-axis: 12,500 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, spindle speed (min.): 5 rpm, spindle speed (max.): 5,000 rpm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 20 m/min, distance between stands: 2,500 mm, type of input current: AC, spindle motor power: 63,000 W, The machine was originally manufactured in collaboration between Waldrich Coburg and Waldrich Siegen as a heavy-duty CNC portal milling machine for industrial large-part and heavy-duty machining applications. 63 kW milling and drilling unit NC universal milling head B-axis and C-axis Automatic tool changer 60-position tool magazine ISO50 / SK50 Internal coolant system Enclosed work area Heavy-duty industrial design Electronic handwheel Siemens Sinumerik 840D Heavy-duty CNC portal milling machine from Waldrich Siegen for the machining of large and heavy workpieces. The machine comes from an ongoing industrial project / factory closure and is already disassembled or prepared for transport. Particularly interesting for: Heavy-duty machining Large-part machining Dodpfjy Sywgsx Aktekn Machine and plant engineering Steel construction Tool and mold making Important note: Due to an urgent factory clearance, the machine must be picked up from Rüsselsheim no later than the end / mid-June. This makes a very attractive special price possible. Sale from location. Subject to prior sale and errors.

Condition: excellent (used), Year of construction: 2002, travel distance X-axis: 9,000 mm, travel distance Y-axis: 5,000 mm, travel distance Z-axis: 1,500 mm, spindle motor power: 60 W, rapid traverse X-axis: 20 m/min, rotational speed (max.): 4,800 rpm, Equipment: documentation/manual, INNSE ATLAS 2P Gantry Milling Machine Dedpfx Asyynitjktekn 9000 x 5500 x 1500 mm Distance between columns: 3800 mm RAM: 550 x 550 mm 2 Tables – 3000 x 3000 mm (20 t) / 3000 x 4000 mm (25 t) Tool changer with 160 positions Equipped with 7 heads, including one tilting head CNC Siemens 840 D
