Milling / chamfer unit

IMA

Condition: used, Year of construction: 2008, power: 41 kW (55.74 HP), edge thickness (max.): 3 mm, controller model: ICOS OPEN, The machine has the following configuration: Pre-milling unit Manufacturer model: R3 L20 Engagement control: Automatic, time-controlled Motor power: 4 kW Speed: 9,000 rpm Edge processing Number of edge processing units: 10 Crosscut saw unit Manufacturer model: 8.42/39/B Number of motors: 2 Motor power: 0.6 kW Speed: 12,000 rpm Flush trimming and rounding unit Manufacturer model: 08.055 Number of motors: 0.6 (?) Motor power: 1 kW Speed: 12,000 rpm Corner rounding unit Manufacturer model: 08.342 Number of motors: 2 Motor power: 0.66 kW Speed: 12,000 rpm Scraper blade unit Manufacturer model: 08.50 Belt sanding unit 1 Manufacturer model: 08.62 Motor power: 0.18 kW Speed: 1,400 rpm Belt sanding unit 2 Manufacturer model: 08.062 Motor power: 0.18 kW Speed: 1,400 rpm Belt sanding unit 3 Manufacturer model: 08 Motor power: 0.18 kW Speed: 1,400 rpm Belt sanding unit 4 Manufacturer model: 08.617-2 Motor power: 0.18 kW Speed: 1,400 rpm Belt sanding unit 5 Manufacturer model: 08 Processing unit 10 Manufacturer model: 08.190 Motor power: 4.5 kW Speed: 9,000 rpm Fsdpozmtkaofx Akhepk TECHNICAL DETAILS Workpiece dimensions Max. panel height: 60 mm Min. panel length: 130 mm Min. panel width: 65 mm Edge material Min. edge thickness: 0.4 mm Max. edge thickness: 3 mm Feed Max. feed rate: 30 m/min Pressure: Rubber belt Number of panel sizing/milling units: 1 MACHINE DETAILS Control system: ICOS OPEN Total connected power: 41 kW EQUIPMENT Number of panel sizing/milling units: 1 Lamps for preheating the panel side Edge roller magazine with 2 positions PUR pre-melting unit Pressure roller set with 5 pressure rollers Spraying unit The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at its destination. External reference: 5657

Condition: ready for operation (used), Year of construction: 2009, Edgebander manufactured in 2009. This IMA Novimat/I/680/650/R3 features joint milling, a gluing section, and a pressure zone. It also includes trimming, flush milling, a multi-profile milling unit, and a sanding unit. If you are looking to get high-quality edge banding capabilities, consider the IMA Novimat/I/680/650/R3 machine we have for sale. Contact us for further details. • Technical features: • Joint milling • Gluing section • Pressure zone • Trimming • Flush milling • Multi-profile milling unit • KFA unit • Multi-profile scraper • Surface scraper • Sanding unit Fpedpozt Dgfsfx Akhok • 2 NC-controlled grooving units Additional equipment • Workpiece return

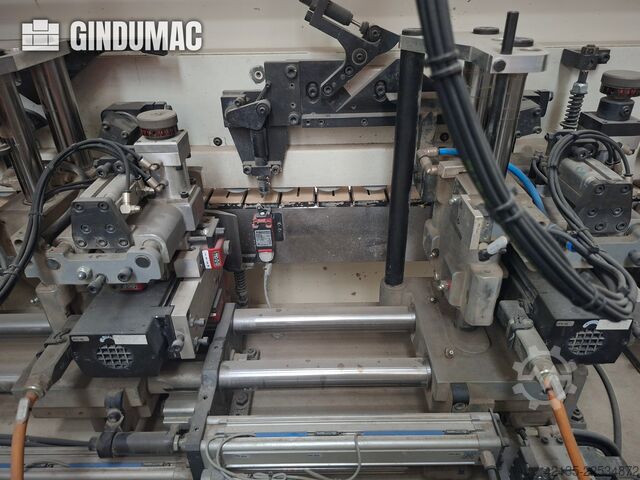

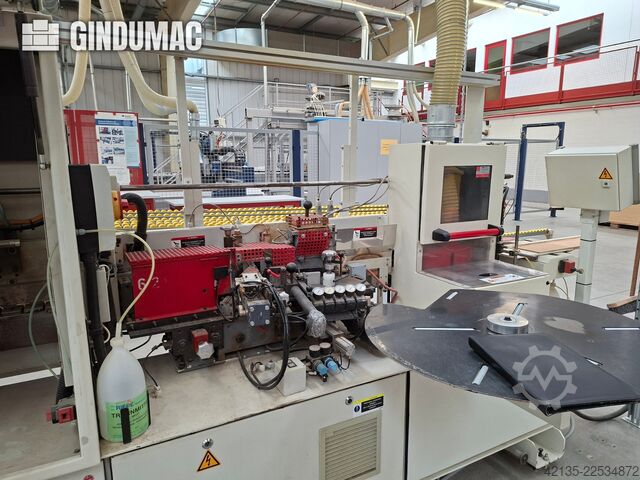

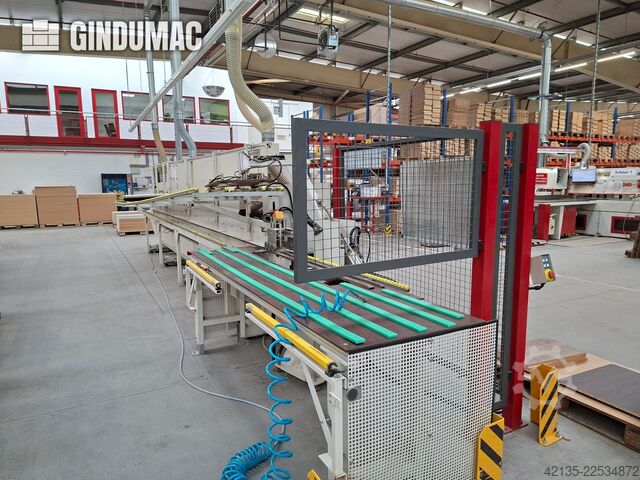

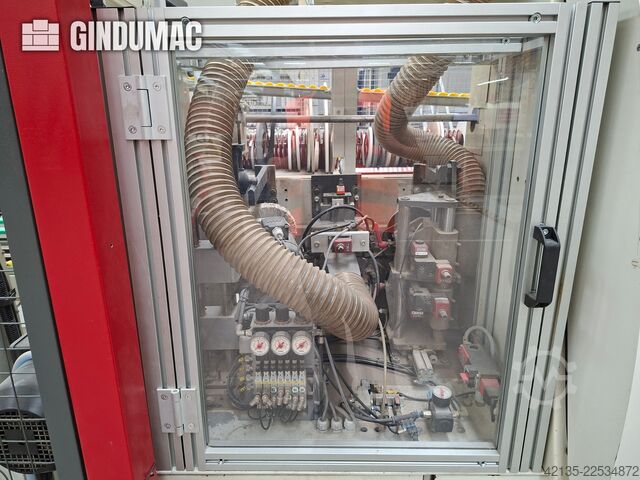

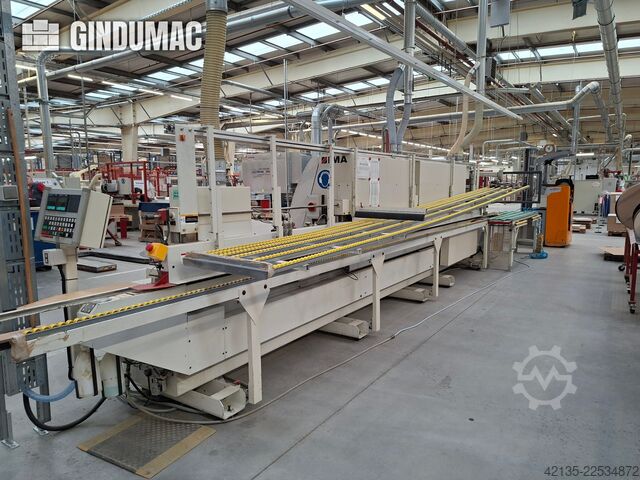

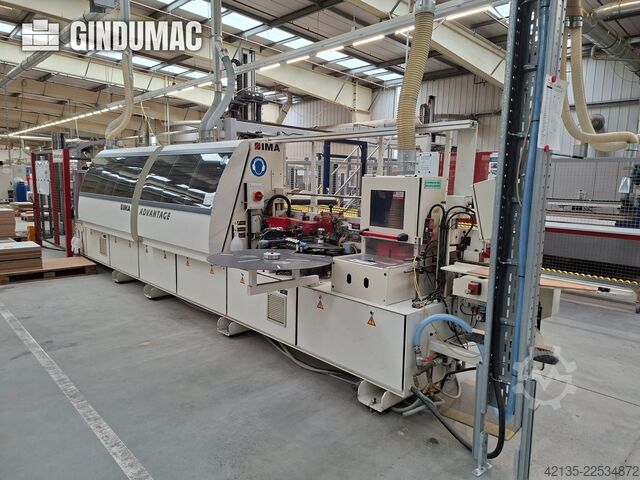

Condition: ready for operation (used), Year of construction: 2005, Edgebander manufactured in 2005. This IMA Advantage 600 features jointing cutters, a gluing unit for thin and thick edges, and a pressing zone. It includes two trimming units, flush trimming, and profile and surface scrapers for enhanced finishing. If you are looking to get high-quality edge banding capabilities, consider the IMA Advantage 600 machine we have for sale. Contact us for further details. • Equipment/units included: • Jointing cutters • Gluing unit for thin and thick edges • Pressing zone • 2x trimming units • Flush trimming • MFA Fodpozt A A Eofx Akhspk • Profile scraper • Surface scraper • Buffing • Return mechanism on top pressure

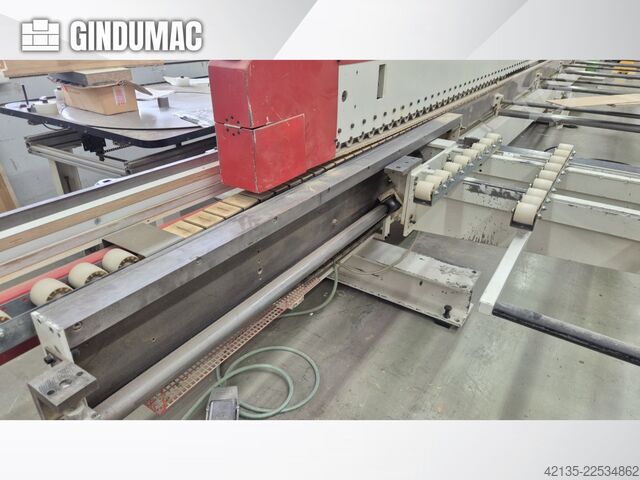

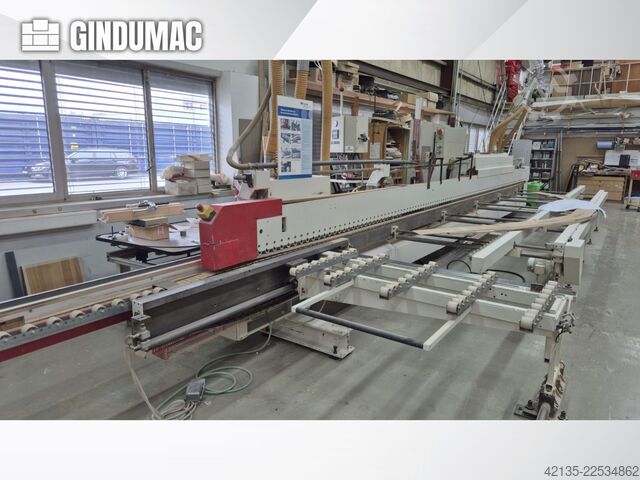

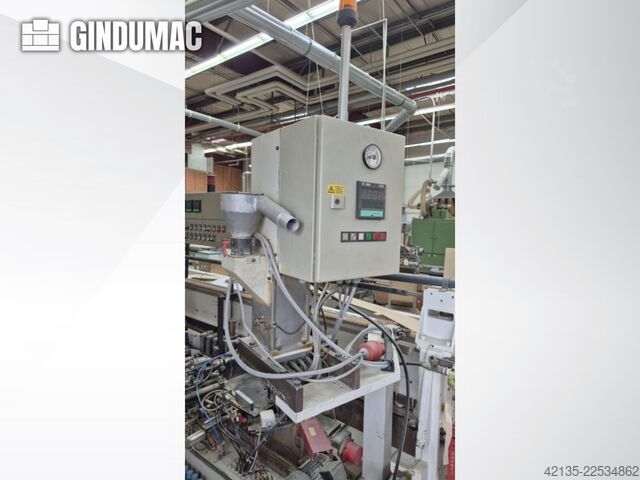

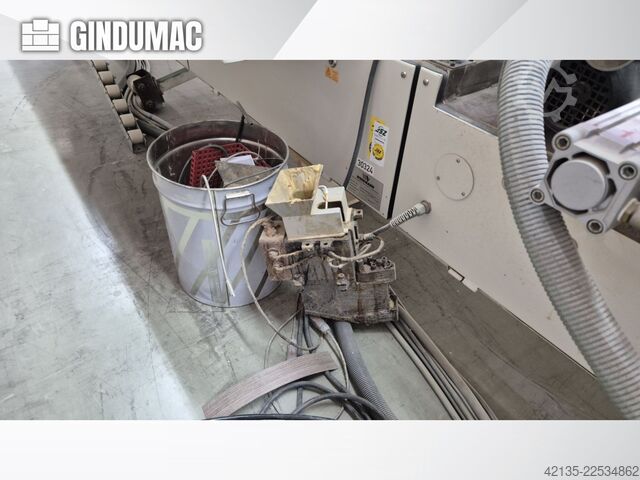

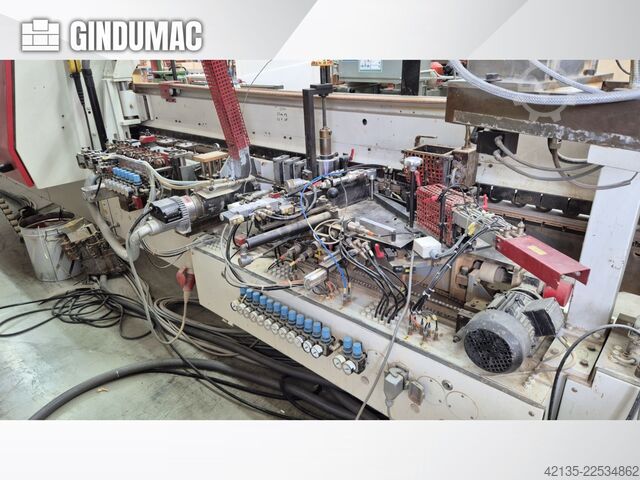

Condition: ready for operation (used), Year of construction: 2003, Edgebander manufactured in 2003. This IMA AVM/K/I/G80/822/S3R3L20 is designed for milling, edge banding, and postproduction for rebate doors. It features a heavy machine base, a drive for feed speed of approximately 5-25 m/min, and a glue application unit for various edge materials. If you are looking to get high-quality edge banding capabilities, consider the IMA AVM/K/I/G80/822/S3R3L20 machine we have for sale. Contact us for further details regarding this machine. • Spindle motor power: • 1 pre-milling unit with 2 motors, each 3 kW • 1 milling unit with 2 motors, 1 kW • 1 milling unit with 2 motors, 660 W • Spindle speed range: 12.000 rpm • Heating capacity: 5,0 kW • Used single-sided rebate and edge-banding machine • Year of manufacture: 2003 • For milling, edge banding and postproduction for a rebate - only on formated / pre-rabbet doors and unrebate doors • Left machine (fix stop on the left side) • Total processing in 3 throughfeeds: • • throughfeed: door top side (cross processing) • • throughfeed: door long side • • throughfeed: door long side • During 2. and 3. throughfeed the edge projection from 1. throughfeed is beeing milled by normal-reverse milling • The double rebate glueing is only possible by readjustment of the machine and manual postprocessing of the edge Fjdpfxozt A Are Akhopk • Max. door thickness: • Vertical edge: approx. 70 mm • Rebate glueing: approx. 60 mm • Heavy machine base as carrier for units • Drive for feed speed of approx. 5-25 m/min., mechanical stepless adjustable • Transport chain with plastic plates, approx. 80 mm wide, with automatic central lubrication • Manually height-adjustable top pressure with v-belt 80 mm wide • Infeed table • 1 horizontal manually adjustable unheated infeed fence • 1 pre-milling unit controllable, not swivable, not tracing • Glueing unit for optional use of straight edges or softforming, by change of glue application device • Edge material: • Strips: up to 1,3 mm • Coil material: 0,4-3 mm • Solid wood strips: 6 mm • Strip length max.: 2550 mm • Strip height: 14-80 mm (depending on glue application) • Manual side adjustment for pneumatic moveable glue application • Manual height adjustment from -15 mm up to +10 mm • 1 glue application 0,8 L, max. edge height 70 mm, straight edge with pneumatic quick lock, Chem-Coat, electronic temperature control • 1 hot melt glue application 0,8 L with quick-lock, edge height max. 80 mm, soft edge, Chem-Coat, with temperature control and control unit for strips • 1 automatic Quickmelt hot melt glue application • 1 2-fold magazine for edge material up to 3,0 mm thickness, manually mountable on the single coil magazine • 1 rebate shape pressure zone for pressing of edge material to a rebate with: • an activation unit 15 kW for reactivation of the edge material for rebate-shaping • a pneumatic controlled shaping tool for the bottom fold edge • a pneumatic controlled shaping tool for the complete rebate • additional pressure rollers for the edge areas with rebate • an electropneumatic side-moving device for the complete pressure zone • 1 horizontal adjustment with mechanical digital readout • 1 trimming unit for 2 motors mounted on top pressure for trimming of the front and rear edge/strip projection for trimming flush or with chamfer • 1 milling unit for 2 motors with height tracing, side tracing, for flush milling from bottom and top, 30° swivable

Condition: ready for operation (used), Year of construction: 2012, travel distance X-axis: 5,300 mm, travel distance Y-axis: 1,400 mm, number of axes: 4, spindle motor power: 10,000 W, spindle speed (max.): 24,000 rpm, This 4-axis IMA BIMA/300/125/530 CNC processing center was manufactured in 2012. It features an extensive working range with an X-direction of 5300 mm and Y-direction of 1400 mm. The machine includes a powerful main spindle with a speed range of 0-24,000 rpm and a tool holder of HSK F63. If you are looking to get high-quality CNC machining capabilities, consider the IMA BIMA/300/125/530 machine we have for sale. Contact us for further details. Working range • Y (main spindle + tool Ø20 mm): 1400 mm • Y (drilling unit, all vertical drills): 890 mm • Single-station machining: X = 2 × 2550 mm; center clearance X = 200 mm • Indexing table machining: X = 2 × 2250 mm; free space in center = 800 mmTool magazine • Automatic tool/adapter changer, turret type, 18 slots • Mounted on support, moves in X-directionGuiding and lubrication • Preloaded, surface-hardened precision roller guides on all axes • Manual central lubrication for main-axis linear guides and Z-axis ballscrewVacuum/fixturing and table • 1 vacuum pump, 90 m³/h • Console table with 2 fixed right and 2 fixed left workpiece stops (X-direction) for Y movement • 10 support arms, infinitely adjustable in X, each with rear stop • All stops program-controlled • Suction plates with patented 2-circuit clamping system (hose-free) • 8 smooth support rails, automatically lowerable • 2 mushroom buttons for clamp/releaseSpindle and machining units • Main spindle: 10.0 kW (S6), 7.5 kW (S1); HSK F63 (Ø38 mm, per DIN 69893); 0–24,000 rpm, programmable • Centrally integrated CNC axis: 360° rotation for adapter units, torque support on main spindle, pneumatic interface • Drilling/grooving: Vertical drilling unit l14 with 6 horizontal spindles; horizontal units each with 2 outlets • Attached groove saw unit, swivel 0°/90°Control and software • ICOS CNC control: PC-based, Windows UI, path control of all servo axes, job list/order processing, IMA backup & recovery on two hard drives, UPS • IMAWOP software: Dialog programming, 3D view and basic simulation of workpiece, suction cups, brackets, tools, and adapters Fpodpfx Aszt Axaskhjk Additional equipment • Additional 2nd vacuum pump, 90 m³/h • Additional center stop row for centering workpieces • Chip conveyor belt

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, number of axes: 3, This 3-axis IMA BIMA 410 CNC Wood Machining Centre was manufactured in 2000. It features a working area of 3000 mm in X and 1200 mm in Y, with a maximum clamping height of 100 mm. The machine is equipped with an automatic central lubrication system and AC servo motors for precise operation. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 410 machine we have for sale. Contact us for further details. • Working area X: 3000 mm • Working area Y: 1200 mm • Max. clamping height Z1: 100 mm • Max. workpiece thickness Z2: depending on equipment/application • Table height: approx. 1000 mm • Pendulum operation X: 2 × 1400 mm • Free space center X: 200 mm • Pendulum operation alternative X: 2 × 900 mm • Free space center alternative X: 1200 mm • Machine weight: approx. 6000 kg • Guide system: precision linear guides hardened approx. 62 HRC • Central lubrication: automatic for all main axes and ball screw • Drive system: AC servo motors with encoder • X/Y drive: rack and pinion • Z drive: ball screw • Feed rate: 40 m/min • Rapid traverse X/Y: 80 m/min • Rapid traverse Z: 25 m/min • Acceleration: 3 m/s² • Extraction connection main spindle: 300 mm • Extraction connection drilling spindles: 120 mm • Air speed: approx. 28 m/s • Air volume: approx. 7080 m³/h • Vacuum pump capacity: 100 m³/h • Compressed air connection: 1/2" • Air pressure: 6 bar • Control voltage: 24 V DC • Connected load: approx. 24 kVA • Power supply: 3/N/PE 400/230 V 50 Hz • Frequency converter: 0–480 Hz • Ambient temperature: +15 to +35 °C • Control system: IMATRONIC NT 231 • Interpolation: linear all axes, circular 2.5D • Resolution: 0.001 mm • Spindle: HSK F63 • Tool clamping force: 11000 N • Max tool weight: 6 kg • Speed range: 1500–18000 rpm • Spindle power: 7.5 kW • Cooling: water cooled • CNC axis: 360° rotating • Tool magazine type: plate changer • Tool positions: 18 • Max tool length: 150 mm • Max tool diameter: 100 mm (150 mm with free сосед positions) • Max load: 60 kg • Saw unit motor: 1.5 kW • Saw speed: 5600 rpm • Saw blade diameter: max. 150 mm • Drilling unit: 14 spindles • Spindle stroke: 70 mm • Drive: 2.2 kW • Speed: 3150 rpm • Drill diameter max: 20 mm • Adapter head spindles: 4 • Speed max: 6000 rpm • Drill diameter max: 12 mm Table equipment: • 6 adjustable support arms • 12 suction cups 114 × 159 × 100 mm • 6 suction cups 125 × 75 × 100 mm Fsdpfx Aszt Aw Askhopk • Vacuum system: 2-circuit clamping system • Electrical cabinet size: 2000 × 1800 × 600 mm DEFECT: • The main spindle no longer releases the interchangeable drill head

Condition: ready for operation (used), Year of construction: 1996, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, number of axes: 3, number of slots in tool magazine: 5, total height: 3,100 mm, overall weight: 7,500 kg, table length: 4,000 mm, table width: 1,200 mm, spindle motor power: 7,500 W, spindle speed (max.): 18,000 rpm, This 3-axis IMA BIMA 610 V CNC Wood Machining Centre was manufactured in 1996. It features a working area of 4000 mm in the X-axis and 1200 mm in the Y-axis, with a maximum drilling diameter of 45 mm. The machine is equipped with 5 drilling spindles in the X direction and 11 in the Y direction. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 610 V machine we have for sale. Contact us for further details. • CNC Control: NUM CNC Control • Drive System: Siemens SIMODRIVE 611 • Maximum Workpiece Length: 4000 mm • Minimum Workpiece Length: 150 mm • Maximum Workpiece Width: 1650 mm • Minimum Workpiece Thickness: 10 mm • Maximum Workpiece Thickness: 65 mm • Drilling Spindles (X): 5 • Drilling Spindles (Y): 11 • Maximum Drilling Diameter: 45 mm • Main Spindle Power: 7.5 kW • Main Spindle Motor: Water-cooled • Tool Holder: HSK F63 DIN 69893 • Feed Drive Motor Power: 4 kW • Feed Speed: 1,500–18,000 mm/min • Maximum Tool Weight: 5 kg • Maximum Tool Clamping Force: 10,000 N • Operating Voltage: 400 V ±5% • Supply Voltage: 3/N/PE, 400 V, 50 Hz • Frequency: 50 Hz • Total Connected Load: 33 kVA • Rated Power: 41 kW • Rated Current: 62 A • Connection Cross Section: 16 mm² • Control Voltage: 24 V • Control Current: 52 A • Compressed Air Pressure: 6–10 bar • Air Connection: 1/2" • Required Air Consumption: 28 m³/h • Dust Extraction Connection: Ø100–300 mm • Air Flow Ø100: 14 m³/min • Air Flow Ø140: 28 m³/min • Air Flow Ø160: 36 m³/min • Air Flow Ø180: 46 m³/min Fpsdpfx Aezt Awpekhek • Air Flow Ø200: 56 m³/min • Air Flow Ø280: 105 m³/min • Air Flow Ø300: 127 m³/min • Number of Dust Extraction Ports: 1 • Machine Condition: Disassembled but fully functional Optional Equipment, not included: • Vacuum block suction cups (aluminum) and sliding console • Two milling spindles for synchronous milling with integrated tool changers • Safety fence with associated safety mats • Control cabinet and operating unit • Waste conveyor belt for milled sections

Condition: used, machine/vehicle number: 007857, Position 1: Horizontal Storage Systems IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 2: Beam panel saws with automatic warehouse IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 3: Single Edgebanders IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 4: Panel Feeding and Loading IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 5: Panel Stacking and Offloading IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 6: CNC Machine Centres For Routing, Drilling And Edgebanding. IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 7: CNC Machine Centres For Routing, Drilling And Edgebanding. IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 8: Cardboard Cutters IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Position 9: Strapping machine IMA + MEINERT-COMBIMA SYSTEM/I/R75/1170/F/R3 Fodpfx Aewuuf Dekhopk

Condition: used, machine/vehicle number: 006619, Position 1: Panel Feeding and Loading IMA + MEINERT-COMBIMA/I/R75/2050 Position 2: Double Squaring Machines IMA + MEINERT-COMBIMA/I/R75/2050 Position 3: Panel Turning Device IMA + MEINERT-COMBIMA/I/R75/2050 Position 4: Single Edgebanders IMA + MEINERT-COMBIMA/I/R75/2050 Position 5: Roller Conveyors IMA + MEINERT-COMBIMA/I/R75/2050 Position 6: Single Edgebanders IMA + MEINERT-COMBIMA/I/R75/2050 Position 7: Panel Turning Device IMA + MEINERT-COMBIMA/I/R75/2050 Fpodpfxoqy Em Nj Akhsk Position 8: Panel Stacking and Offloading IMA + MEINERT-COMBIMA/I/R75/2050

Condition: used, machine/vehicle number: 006017, Position 1: Vertical Storage Systems IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 2: Angular Beam Panel Saws IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 3: Panel Feeding and Loading IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 4: Roller Conveyors IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 5: edge bander batch 1 IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 6: Roller Conveyors IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 7: edge bander batch 1 IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 8: Roller Conveyors IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 9: edge bander batch 1 IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 10: Roller Conveyors IMA-COMBIMA SYSTEMS/N/I/R75/1110 Fpsdpfx Akswukzhehsk Position 11: edge bander batch 1 IMA-COMBIMA SYSTEMS/N/I/R75/1110 Position 12: Roller Conveyors IMA-COMBIMA SYSTEMS/N/I/R75/1110
