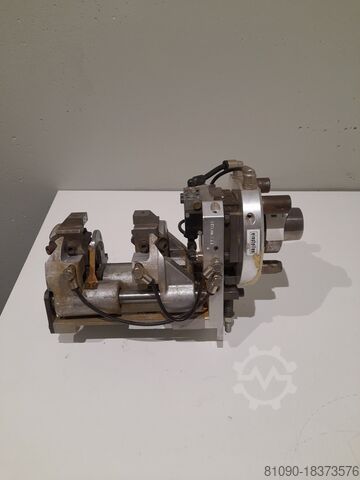

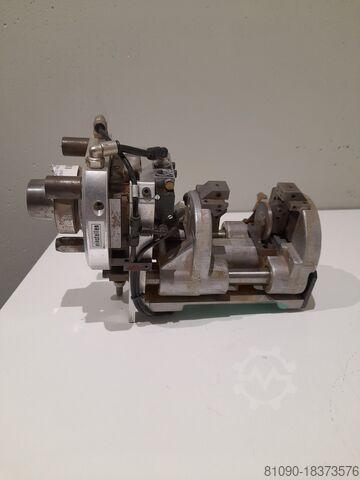

Sharpener

IMA

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, number of axes: 4, This 4-axis IMA BIMA 410 CNC Wood Machining Centre was manufactured in 2000. It features a working area of 3000 mm in X and 1200 mm in Y, with a maximum clamping height of 100 mm. The machine is equipped with an automatic central lubrication system and AC servo motors for precise operation. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 410 machine we have for sale. Contact us for further details. Godpfxoy Aw N Uj Ad Heua Working area X: 3000 mmWorking area Y: 1200 mmMax. clamping height Z1: 100 mmMax. workpiece thickness Z2: depending on equipment/applicationTable height: approx. 1000 mmPendulum operation X: 2 × 1400 mmFree space center X: 200 mmPendulum operation alternative X: 2 × 900 mmFree space center alternative X: 1200 mmMachine weight: approx. 6000 kgGuide system: precision linear guides hardened approx. 62 HRCCentral lubrication: automatic for all main axes and ball screwDrive system: AC servo motors with encoderX/Y drive: rack and pinionZ drive: ball screwFeed rate: 40 m/minRapid traverse X/Y: 80 m/minRapid traverse Z: 25 m/minAcceleration: 3 m/s²Extraction connection main spindle: 300 mmExtraction connection drilling spindles: 120 mmAir speed: approx. 28 m/sAir volume: approx. 7080 m³/hVacuum pump capacity: 100 m³/hCompressed air connection: 1/2"Air pressure: 6 barControl voltage: 24 V DCConnected load: approx. 24 kVAPower supply: 3/N/PE 400/230 V 50 HzFrequency converter: 0–480 HzAmbient temperature: +15 to +35 °CControl system: IMATRONIC NT 231Interpolation: linear all axes, circular 2.5DResolution: 0.001 mmSpindle: HSK F63Tool clamping force: 11000 NMax tool weight: 6 kgSpeed range: 1500–18000 rpmSpindle power: 7.5 kWCooling: water cooledCNC axis: 360° rotatingTool magazine type: plate changerTool positions: 18Max tool length: 150 mmMax tool diameter: 100 mm (150 mm with free сосед positions)Max load: 60 kgSaw unit motor: 1.5 kWSaw speed: 5600 rpmSaw blade diameter: max. 150 mmDrilling unit: 14 spindlesSpindle stroke: 70 mmDrive: 2.2 kWSpeed: 3150 rpmDrill diameter max: 20 mmAdapter head spindles: 4Speed max: 6000 rpmDrill diameter max: 12 mmTable equipment:6 adjustable support arms12 suction cups 114 × 159 × 100 mm6 suction cups 125 × 75 × 100 mmVacuum system: 2-circuit clamping systemElectrical cabinet size: 2000 × 1800 × 600 mmDEFECT: The main spindle no longer releases the interchangeable drill head

Condition: excellent (used), Year of construction: 2005, machine/vehicle number: 20787, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, IMA BIMA 410 V 140/600 – Professional CNC Woodworking Machining Centre. The machine features a gantry construction and is designed for the production of furniture, stairs, and special components. The large Z-axis travel (600 mm) enables machining of high workpieces. It is equipped with a 7.5–11 kW spindle, automatic tool changer, vertical and horizontal drilling heads, and a vacuum table with consoles. Controlled by IMA WOP. Manufacturer: IMA (Germany) Model: BIMA 410 V 140/600 Type: CNC Machining Centre for Wood (point-to-point) 🧩 Working Area • X-axis: up to approx. 6000 mm • Y-axis: approx. 1400 mm • Z-axis: version 140 / 600 mm (high Z-axis – large clearance) • Number of axes: 3–5 (depending on configuration and head) ⚙️ Main Spindle • Power: 7.5 – 11 kW • Speed: 1,500 – 24,000 rpm • Tool holder: HSK F63 • Max. tool diameter: approx. 100–150 mm • Max. tool length: approx. 150 mm • Max. tool weight: approx. 6 kg 🔧 Tool Magazine • Automatic tool changer • Number of positions: 18 🪚 Working Units (typical) • Vertical drilling heads: up to 21 spindles • Horizontal (cross) drilling heads • Special aggregates (optional): • Lock case routing units • Grooving saw • Blum/Lamello hardware aggregates • Angular aggregates 🧲 Worktable • Pod & rail vacuum table (consoles) • Approx. 8 working consoles Guedpfx Ajyky Hdod Hoa • Vacuum pumps: 2 units (approx. 100–140 m³/h) ⚡ Drives and Feed Rates • Rapid traverse: • X: up to approx. 100 m/min • Y: up to approx. 80 m/min • Z: up to approx. 25 m/min 💻 Control • CNC: IMA WOP / IMAWOP (optionally Siemens / Beckhoff) ⚙️ Installed Power • Total connected load: approx. 23 kW 📏 Machine Weight • approx. 6,500 – 8,500 kg (depending on configuration)

Condition: excellent (used), Year of construction: 2014, machine/vehicle number: 24406, functionality: fully functional, operating hours: 900 h, input voltage: 400 V, input frequency: 50 Hz, ⚙️ IMA BIMA CUT 145/330 – Technical Specifications (Main) 🔹 Working range (axis travel) • X axis: approx. 3300 mm • Y axis: approx. 1450 mm • Number of axes: 3 (typically X, Y, Z) 🔹 Spindle • Spindle power: approx. 18 kW • Applications: milling, drilling, and board nesting 🔹 Tool changer • Automatic tool changer (ATC): up to 18 positions 🔹 Material clamping system Gsdjykn Dwopfx Ad Houa • Vacuum table with beams and suction cups 🔹 Saw unit • Saw projection: approx. 145 mm • Cutting length: approx. 330 mm ⸻ 🛠️ Typical features and equipment • 5-sided drilling (top + X+/X−/Y+/Y− sides) • Saw unit for cutting and grooving • Optional horizontal milling aggregate (HBO) • Automatic loading and unloading table (depending on configuration) • Nesting system (panel optimization with simultaneous machining) • Automatic lubrication • Waste and chips conveyor (belt) ⸻ 📌 General information • Manufacturer: IMA Schelling (Germany) • Year of manufacture commonly found in offers: approx. 2010–2016 (often 2014) • Applications: furniture production, MDF panels, HPL, solid wood, nesting

Condition: not inspected (used), Year of construction: 2014, functionality: unexamined, workpiece height (max.): 60 mm, edge thickness (max.): 20 mm, feed rate X-axis: 30 m/min, controller model: ICOS OPEN, The machine has the following configuration: Unit: Pre-milling Manufacturer model: 08.379 Motor power: 4 kW Speed: 8,800 rpm Unit: Cut-off saw unit Manufacturer model: 08.42 / 30 / B Number of motors: 2 Motor power: 0.660 kW Unit: Corner rounding unit Manufacturer model: 08.055 Number of motors: 2 Motor power: 1.850 kW Speed: 12,000 rpm Unit: Profile trimming unit Manufacturer model: SKF-L Number of motors: 4 Max. machining speed: 20 m/min Motor power: 0.180 kW Speed: 12,000 rpm Unit: Scraper blade unit Manufacturer model: 08.519 Unit: Glue scraper unit Manufacturer model: 08.521 Unit: Brushing unit Manufacturer model: 08.617-2 Number of motors: 2 Motor power: 0.180 kW Speed: 1,400 rpm TECHNICAL DETAILS Min. panel height: 8 mm Max. panel height: 60 mm Min. panel length: 150 mm Min. panel width: 65 mm Min. edge thickness: 0.3 mm Max. edge thickness: 20 mm Max. feed speed: 30 m/min Guedpfxeyzy Iwo Ad Hoa MACHINE DETAILS Control: ICOS OPEN EQUIPMENT Magazine for coil material Tank for hot-melt adhesive Edge pressure roller unit Pressure by rubberized belt The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents of descriptive character. The buyer has the right to inspect the goods prior to collection and assumes responsibility for the installation, securing, and operation of the machine at the destination. External reference: 6089

Condition: used, machine/vehicle number: 006561, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt Gjdpfx Adeyzplfs Hsua Combination Squaring Edgebanding Machine: First Pass Max Panel Width: 2800 mm Operating Units Right Side: 11 nr Operating Units Left Side: 11 nr

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Edge Banding Machine Manufacturer: IMA Type: Quadromat 3512 U Year of 1999 Edge material: veneer rolls and strips, plastic, solid wood strips Edge height: 14-50 mm Edge thickness: 0.4-12 mm Speed: 18,000 rpm Guodpfxjv T R Ers Ad Hsa Cutting unit Milling units Profile scrapers Buffing unit Flat scrapers

Condition: used, Year of construction: 2004, Used IMA model VORTEX 075 stainless steel high share mixer/granulator. - Manufacturer: IMA - Model: Vortex 075 - Vessel capacity: 85 litre total capacity, working capacity min/max 8/40 kg Gedpfxswm Atme Ad Heua - Vessel lid and outlet valve are pneumatically operated - Includes: local control panel and switchboard Mixing system: - Impeller agitator is driven by 3,0 kW motor, maximum speed 118 rpm - Chopper is driven by 1,5 kW motor, speed 3000 rpm

Condition: good (used), Year of construction: 2005, functionality: fully functional, Equipment: documentation/manual, IMA BIMA CUT Working range (axis travel) • X axis: approx. 3300 mm • Y axis: approx. 1450 mm • Number of axes: 3 (typically X, Y, Z) Spindle Godpfjyzc Nkex Ad Hsua • Spindle power: approx. 18 kW and 12 kW • Application: milling, drilling, board nesting, curvilinear edge banding Tool magazine • Automatic tool changer (ATC): up to 18 positions Material clamping system • Vacuum table with beams and suction cups—automatic repositioning 🛠️ Features and equipment (typical) • Drilling from 5 sides (top + sides X+/X−/Y+/Y−) • Saw aggregate for cutting and grooving • Optional horizontal milling unit (HBO) • Automatic loading and unloading table (depending on configuration) • Nesting system (panel optimization with simultaneous machining) • Automatic lubrication • Conveyor for waste and chips (belt)

Condition: excellent (used), Year of construction: 2009, machine/vehicle number: 70004, functionality: fully functional, Equipment: CE marking, Technical Specifications Dimensions - length: 9.8 m Gusdpsyzc Igofx Ad Hja - width: 1.5 m - height: 1.8 m Motor power: 40 kW Equipment - feed speed: 6 - 30 m/min - panel thickness: min. 8 mm, max. 60 mm - panel width (including edge): min. 65 mm (with edge thickness 0.4 - 3 mm) - panel length: min. 150 mm - edge height: min. 14 mm, max. 65 mm - edge thickness: min. 0.4 mm, max. 20 mm

Condition: reconditioned (used), Double side - Stand-alone Machine (or 1st and/or 2nd in a line) Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 Edges thickness in stips / lippings (min/max) mm 0,4 / 1 Panels thickness (min/max) mm 8 / 45 (60) Working width (min/max) mm 236 / 3300 Numerical Control / Software ICOS open (Windows XP) Without Transmission bar (Master & Slave system) Adjustable feeding speed (m/min ) 7 - 35 Distance (center-axes) of the Disappearing Dogs (mm) 270 SIZING PART (for each side): Spraying unit (Anti-sticking liquid) Milling unit (joint Trimmer) 08.379 (2 X kW 4) EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) VTG + 283.205 Pressure zone (N.C. adjustment) + Edge coils supporting unit (No. 6 reels) Snipping (end-cutting) unit 08.42/30/B (2 X Kw 0,66) Max 30 m/min Godpjyyya Djfx Ad Hjua Fine Trimming unit 08.055 (Kw 1 x 2) 0°-30° Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 30 (1 x Kw 0,5 ca.) 30 m/min Profile Scraping unit 08.519 Glue scraping unit 08.521 Spraying Unit (for polishing liquid) Buffing unit 08.617-2 (2 x Kw 0,18)
