Single-side Edge banderIMA
Novimat/Contour/I/G80/790/R3/IMALUX LASE
Single-side Edge bander
IMA
Novimat/Contour/I/G80/790/R3/IMALUX LASE
Condition
Ex-display machine
Location
Roreto

Show images
Show map
Machine data
Price & Location
- Location:
- Via Savigliano 29, 12062 Roreto Di Cherasco (CN), Italia

Call
Details about the offer
- Listing ID:
- A529-2219
- Reference number:
- J01001
- Update:
- 06.02.2025
Description
SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 - in stips / lippings mm max 1
Panels thickness (min/max) mm 8 / 60 (Laser - max 44)
Numerical Control ICOS Open
Feeding speed (adjustable) m/min 16 - 30
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Panels in-feed system 700.101 (mm 500 x 500)
Pre-milling Unit (vertical joint trimmers) 08.379 (2 x Kw 4,0) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt system) 04.0836 + 283.1518 (SERVO-MOTOR band feed) adjustable by CN
Glueing Unit (Thermofusion with Laser) Laser System IMALUX
Spraying Unit (for anti-release liquid)

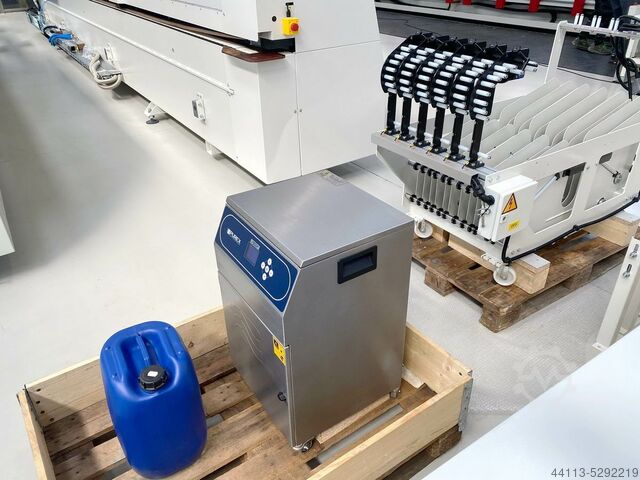

Band Pressure zone + Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) Linear 08.428 LKA V30/2(Kw 0,2 x 2) work speed up to 30 m/min (0°-25°)
Fine Trimming unit (Multi-profile, by N.C.) 08.0587 (Kw 1.0 x 2) 4 profiles
Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 20 (Kw 0,5 x 1) max 25 m/min
Profile edge scraping unit DUO (4 profiles)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.617-4 (Kw 0.18 x 4)
Milling grooving unit 2 x 08.190 (Kw 4,5 x 2) swivelling 90°/180°/270° (adjustable by CN)
Gtjdegbug Nopfx Ac Ast
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 - in stips / lippings mm max 1
Panels thickness (min/max) mm 8 / 60 (Laser - max 44)
Numerical Control ICOS Open
Feeding speed (adjustable) m/min 16 - 30
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Panels in-feed system 700.101 (mm 500 x 500)
Pre-milling Unit (vertical joint trimmers) 08.379 (2 x Kw 4,0) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt system) 04.0836 + 283.1518 (SERVO-MOTOR band feed) adjustable by CN
Glueing Unit (Thermofusion with Laser) Laser System IMALUX
Spraying Unit (for anti-release liquid)
Band Pressure zone + Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) Linear 08.428 LKA V30/2(Kw 0,2 x 2) work speed up to 30 m/min (0°-25°)
Fine Trimming unit (Multi-profile, by N.C.) 08.0587 (Kw 1.0 x 2) 4 profiles
Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 20 (Kw 0,5 x 1) max 25 m/min
Profile edge scraping unit DUO (4 profiles)
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.617-4 (Kw 0.18 x 4)
Milling grooving unit 2 x 08.190 (Kw 4,5 x 2) swivelling 90°/180°/270° (adjustable by CN)
Gtjdegbug Nopfx Ac Ast
