Cold saw

IMET BS 350 AFI-E

Condition: new, saw blade diameter 315 mm cutting diameter 90 mm stroke -- mm mitre joint cuts -/+ degrees -45 + 45 Grad turning speeds 40 / 80 U/min weight of the machine ca. 165 kg dimensions of the machine ca. 1,0 x 1,15 x 1,48 m Manual metal circular saw MKS 315 N Action set / Item no. 3620303SET - two cutting speeds - Rotatable machine head 45° to the left and 45° to the right - Reduction gear, running quietly in an oil bath - automatic diaphragm coolant pump with coolant filter - Vice with counter vice, quick release and anti-burr jaws guarantees a precise and burr-free cut - Lateral material support arm with roller - Vice swivels 45° to the left and 45° to the right - Movable guard ensures optimal safety when cutting - Control handle with safety switch - Vice with counter vice, quick release and anti-burr jaws - Lateral material support arm with roller - Vise can be moved longitudinally and thus for longitudinal cuts and for suitable for slots 0° (round) solid material 55 mm 0° (round) tube 90 mm 0° (square) tube 80 x 80 mm 0° (rectangular) tube 115 x 70 mm -45° (round) solid material 50 mm -45° (round) tube 80 mm Fgjdpfxoibw Sme Aa Noi -45° (square) tube 70 x 70 mm -45° (rectangular) tube 70 x 70 mm +45° (round) solid material 50 mm +45° (round) tube 80 mm +45° (square) tube 70 x 70 mm +45° (rectangular) tube 70 x 70 mm

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, saw blade diameter: 370 mm, CNC Mitre Circular Saw Full-Automatic with Microprocessor Control Details: - Frequency-controlled saw drive: 13-73 rpm - Modern microprocessor control - Max. saw blade Ø up to 370 mm - Mitre angles: 60° left and 45° right - Large chip drawer - Vise with double clamping arm for burr-free cuts - Vertical clamping cylinder - Automatic cooling with electric submersible pump Technical Data: Cutting range at 90°: Ø 120 mm or 180 x 100 mm Saw motor: 3.0 kW-400 V Working height: 925 mm Fsdpfx Aew Uftqoa Njgi Weight approx. 750 kg Air connection: 6 bar Dimensions (LxWxH): 3,300 x 1,250 x 1,400 mm Working height: 900 - 980 mm

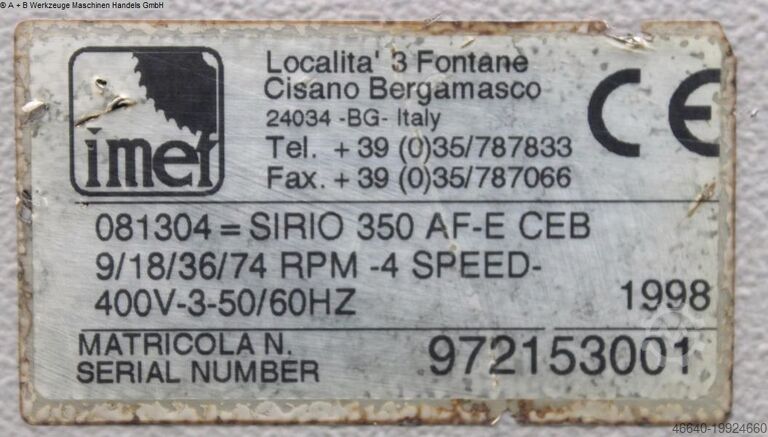

Condition: used, Year of construction: 1998, saw blade diameter 350 mm cutting diameter 110 mm capacity 90 degrees: flat 180 x 85 mm capacity 45 degrees: round 105 mm capacity 45 degrees: flat 130 x 85 mm capacity 60 degrees: round 105 mm capacity 60 degrees: flat 90 x 85 mm turning speeds 9-18-36-74 U/min vice max. 180 mm Control IMET CNC total power requirement 1.5 / 2.2 kW weight 710 kg range L-W-H 2000 x 1100 x 2000 mm Current new price approx. 25.000 euros Special price on request Circular saws are used to cut thin-walled tubes and profiles. Clean, precise cut edges are achieved with the circular saw. Fast sawing and easy miter adjustment are the advantages of the circular saw. Basically, you should also pay attention to the correct cooling of the materials. Cooling lubrication is essential for metallic materials. Cooling lubrication is not required for non-metallic materials such as plastic, brass or cast iron. Choosing the right tooth pitch is decisive for the optimal use of metal circular saw blades. For the material cross-section to be machined in connection with the material quality. Furnishing: - CNC fully automatic / vertically guided metal circular saw - swiveling CNC control, front left * Entry of parameters such as quantities and material lengths - Precision prism guide of the gear head, laterally adjustable - Hydro-pneumatic control of the saw unit - with automatic material feed & quantity specification * electro-pneumatic material feed unit - Smooth-running, powerful worm drive * with large transmission ratio - with miter adjustment via large turntable - continuous saw blade lowering - pneumatic material clamping Fgjdpfjxabzysx Aa Nji - Stable base with built-in automatic cooling and large chip drawer - Micro spray device for stainless steel cuts (untested) - Safety device for feed device (hood) - Saw blade guard - User manual (PDF) * Machine link : ?machineno=1008-9164086

Condition: used, Year of construction: 1999, 145 mm ja zwei Geschwindigkeiten cooling ja type 41103M00U2 mm 6791 volt 400 V Fgsdpsw Syklofx Aa Noi frequency 50 Hz
