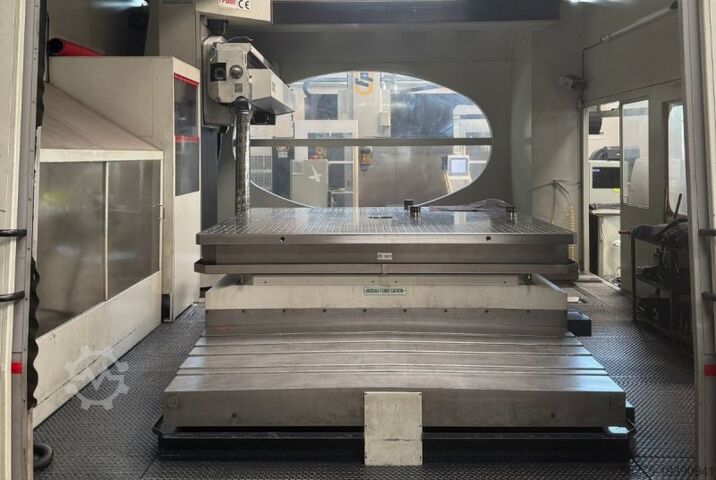

IMSA MF2000 BB

IMSA MF2000 BB

Condition: excellent (used), functionality: fully functional, drilling depth: 2,000 mm, feed length X-axis: 3,250 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 500 mm, total length: 8,000 mm, total width: 6,000 mm, total height: 4,300 mm, overall weight: 45,000 kg, feed rate X-axis: 8 m/min, feed rate Y-axis: 8 m/min, feed rate Z-axis: 8 m/min, spindle speed (max.): 4,200 rpm, drill diameter: 40 mm, spindle motor power: 17,000 W, table length: 2,000 mm, table width: 2,500 mm, table load: 50,000 kg, feed length W-axis: 500 mm, Heidenhain 530 CNC Control Drilling depth (V): 2,000 mm Longitudinal travel (X): 3,250 mm Vertical travel (Y): 1,500 mm Transverse travel (Z) threading axis: 500 mm Workpiece approach (W): 500 mm Rapid traverse speed X, Y, V: 8,000 mm/min "IMSAUTOROTATION" rotary-translating table: 2,000 x 2,500 mm Maximum table load (rotating workpiece – clamped on axis): 30,000 kg Maximum load (stationary workpiece): 50,000 kg Drilling head tilt (C): +/-20° ISO 50 spindle taper Spindle motor power (drilling and milling): 17 kW Spindle speed: 4,200 rpm Solid drilling diameter (min) drill Ø: 6 mm Solid drilling diameter (max) drill Ø: 40 mm Tool magazine: 20 stations Floor space required (approx.): 6,000 x 8,000 mm Height: 4,300 mm Total machine weight (approx.): 45,000 kg Cedpfx Abjwzw Ihjwohc Complete with: - Optical scales (X, Y) - Drilled plate 2,200 x 2,500 mm, thickness 70 mm - Gun drills with bushings - High pressure 80 bar - Full oil-tight enclosure - Chip conveyor USED MACHINE
