CNC Lathe

INDEX C65

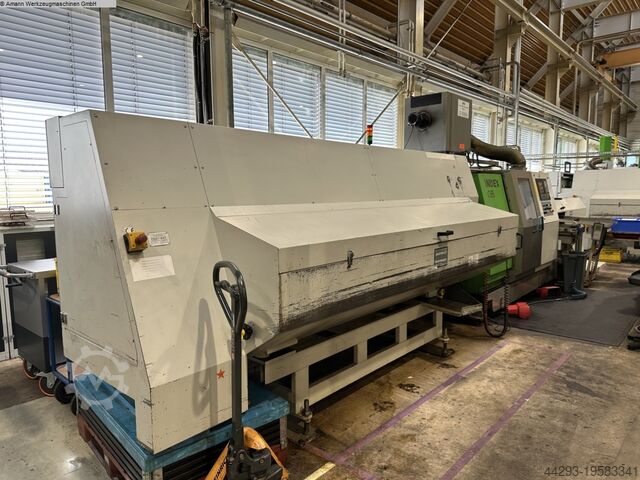

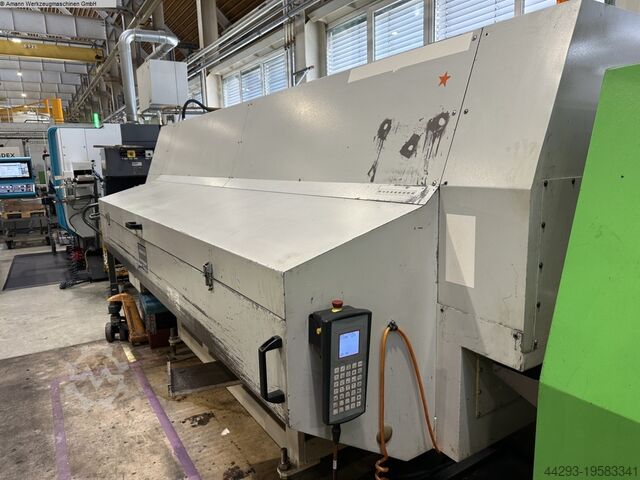

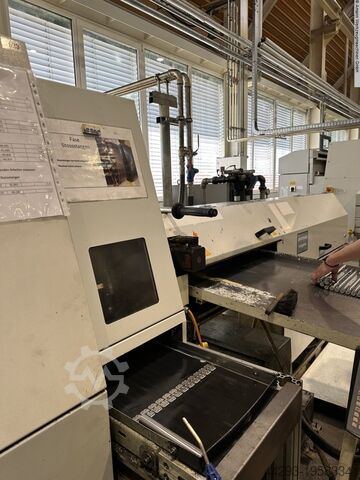

Condition: defective spare-parts repository (used), Year of construction: 2005, functionality: not functional, turning length: 600 mm, turning diameter: 140 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 110 mm, travel distance Z-axis: 360 mm, controller model: Siemens 840 D PowerLine, Hydraulic unit, main and counter spindles defective TECHNICAL DETAILS Turning diameter: 140 mm Turning length: 600 mm Distance between spindles: 615 mm Travel X-axis: 110 mm Travel Z-axis: 360 mm Travel Y-axis: 70 mm B-axis: 2x +/-1° Rapid traverse (X / Y / Z-axis): 25 / 12 / 50 m/min Main spindle Max. speed: 5,000 rpm Drive power: 20 / 27 kW Max. torque: 105 / 145 Nm C-axis positioning: 0.001° Chuck diameter: 140 - 160 mm Spindle nose: ISO 702/1 A5 Max. bar diameter: 65 mm Spindle bearing diameter: 110 mm Counter spindle Max. speed: 5,000 rpm Drive power: 20 / 27 kW Max. torque: 105 / 145 Nm C-axis positioning: 0.001° Chuck diameter: 140 - 160 mm Spindle nose: ISO 702/1 A5 Max. bar diameter: 65 mm Travel X-axis: 150 mm Travel Y-axis: 600 mm Spindle bearing diameter: 110 mm Turrets Number: 3 Tool holder: VDI 25 x 48 DIN 69880 Number of tool stations: 3 x 12 Kodpsyxgc Nofx Ai Rjdr Number of live tool stations: 3 x 12 Max. speed of live tools: 6,000 rpm Drive power for live tools: 8 kW Max. torque: 16 Nm MACHINE DETAILS Total power requirement: 53 kVA Dimensions & Weight Space requirement: 8.0 x 3.5 x 2.5 m Machine weight: 6.5 t EQUIPMENT 2(3) Y-axes +/-35 mm 2 B-correction axes (+/-1°) Chip conveyor Parts catcher Tool breakage monitoring Bar feeder: IRCO Profimat 65.6

Condition: excellent (used), Year of construction: 2012, - 3-axis CNC center SCM Pratix S - model PRATIX 12B from 2012. - Range X, Y, Z axes: 2500x1250x150+ mm - Number of tool spaces in the magazine: 8 - Machine table: Raster aluminum table, 2 sections. - Control: PC control - Software: SCM NESTING, SCM XILOG MAESTRO - Serial no.: AH/115920 Number of milling axes: 1 Drilling unit: 1 - practically unused Maximum spindle speed: 24,000 rpm Tool holder: HSK-F63 Main engine: 6.6 kW Table measurements: 130 cm x 260 cm Portal construction: Machine with movable portal Vacuum pumps: 2 pcs. BECKER from 2012 - one placed outside, the other installed in the machine. Vacuum pump capacity m³/h: 240/280 m³/h. Interface for reading CAD format (.dxf) Kjdpfxjuu Ntgs Ai Rodr Security: Rejects Weight approx. 2,500 kg Length: 5,900 mm Width: 2,790 mm Height: 2,190 mm Automatic tool length measurement

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 720052, turning length: 600 mm, turning diameter: 140 mm, bar passage: 65 mm, controller model: Siemens 840 D PowerLine, distance between spindles: 615 mm, TECHNICAL DETAILS Turning diameter: 140 mm Turning length: 600 mm Kedpfsxg Im Asx Ai Redr Maximum bar diameter: 65 mm Distance between spindles: 615 mm Max. spindle speed: 5,000 rpm Main spindle drive power: 20/27 kW Spindle nose: ISO 702/1 140 mm Spindle bearing diameter: 110 mm Max. torque: 105/145 Nm C-axis: 0.001 Chuck diameter: 140 - 160 mm Tool turret: 3 Y-axes: 2 to 3 axes +/- 35 mm B-correction axes: 2 axes +/-1 Driven tool positions: 3 x 12 Tool holder: VDI 25 x 48 DIN 69880 Drive power for driven tools: 8 kW MACHINE DETAILS Control: Siemens 840 D PowerLine Dimensions & Weight Space requirements: approx. 8.0 x 3.5 x 2.5 m Machine weight: approx. 6,500 kg Electrical Data Rated voltage: 400 V AC Rated current: 101 A Rated power: 59 kW Number of phases: 3 Frequency: 50 Hz Control voltage: 24 V DC Total power requirement: 53 kVA EQUIPMENT Index MBL bar loader

Condition: used, total length: 4,500 mm, total width: 1,600 mm, total height: 1,500 mm, Colour: Grey Empty weight: 5.000 kg Price: On request - Documentation available: No - CE certificate present: No - Serial number: 0440922 - Drive system: Conventional - Power [kW]: 18.5 - Centre height [mm]: 315 - Swing over bed [mm]: 630 - Carriage turning diameter [mm]: 400 - Distance between centres [mm]: 3000 - Bed width [mm]: 580 - Spindle bore [mm]: 82 - Min. spindle speed [rpm]: 9 - Max. spindle speed [rpm]: 1120 - Options: Three-jaw chuck, Four-jaw chuck - Transport dimensions: 4500mm x 1600mm x 1500mm (l x w x h) - Transport weight [kg]: 5000kg - Transport packages [pcs.]: 1 Kdsdjx Ryv Topfx Ai Ror Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, CNC machining center BIESSE Rover C 6.50 CONF.2, year 2007 Kdsdew Rpd Sopfx Ai Rsr Working area: approx. 140 × 460 cm Machine dimensions: 300 × 650 cm Weight: approx. 6,100 kg Two working heads Tool magazine: 22 positions Vertical drilling spindles: 28 pcs Horizontal drilling spindles: 12 pcs Price negotiable, available immediately. Price is without VAT.

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes Kdedpfxotk It So Ai Ror 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, Year of construction: 2004, Mazak Multiplex 6300 Ksdpfx Asv Tvkaei Rsdr Mazatrol 640T YOM: 2004-11 approximately 20 pcs tools Mazak Flex-GL200F More information is coming soon.

Condition: used, Year of construction: 2013, power: 17.1 kW (23.25 HP), input voltage: 400 V, input current: 29 A, input frequency: 50 Hz, travel distance X-axis: 4,320 mm, travel distance Y-axis: 1,326 mm, travel distance Z-axis: 170 mm, number of axes: 5, number of slots in tool magazine: 33, Equipment: CE marking, Biesse Rover A 1343 CNC machining centre 5-Axis Description Rover A ATS CNC Machining Centers Kdjdey U Naijpfx Ai Rjr Working ranges X = 4,320 mm; Y = 1. 326 mm;Z = 170 mm Chip and scrap conveyor belt Automatic lubrication system Remote console Safety systems in compliance with the requirements of Directive 2006/42/EC Vacuum system for 1 vacuum pump of 250 m3/h or 300 m3/h 1 x 250 m3/h vacuum pump for standard system Auxiliary vacuum system for double working area machine Multi-zone 8 floors and 24 trolleys 8 ATS L = 1280 mm decks - 24 carriages - with automatic positioning (ATS-EPS X-Y) 8 reference stops with 115 mm rear stroke 8 front reference stops with 140 mm stroke positioned at a height of 1190 mm from the rear stops 4 side stops, with 140 mm stroke (2 right + 2 left) with implant 2 additional side stops, with 140 mm stroke (1 right + 1 left) Pneumatic system for double-stroke bar lifts 6 pneumatic double stroke load aid bar lifts for uniclamp vises H=74 for workpieces up to 98 mm thick Vacuum module size 132 x 146 x H74 mm Vacuum module size 132 x 75 x H74 mm with predisposition for pins Uniclamp vice with 2 movements with quick coupling and circular plate - H=74mm For clamping workpieces with a thickness from 40 to 98 mm 8 reference stops with 140 mm stroke positioned at a height of 670 mm from the rear stops Uniclamp vice with 2 movements with quick coupling and circular plate - H=74mmFor clamping workpieces with a thickness from 83 to 140 mm Flange for the preparation of a 5 Interpolating Axis Operating Unit for the assembly of Aggregates *The aggregates can only be used with the Electrospindle in a vertical position *Requires the 5 Interpolating Axis Operating Unit Predisposition for deflectors with inductive or pneumatic sensor on 5-axis operating unit Coolant control unit to replace the heat exchanger supplied with 13kW 5-axis units. Operating unit 5 interpolating axes 13 kW (17.4 Hp), HSK F63 connection, liquid-cooled. Includes the heat exchanger for cooling the coolant with operating temperatures between + 5° and +40° Right deflector with pneumatic sensor for 11 kW 5-axis electrospindle Upgrade from BiesseWorks Basic Machine to BiesseWorks Advanced Machine Iron fork for deflectors with inductive or pneumatic sensor Chain tool magazine with 33 places - centre distance 120 mm Flexible front unit protection for loading unlimited Y-size (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: like new (used), Year of construction: 2022, operating hours: 521 h, functionality: fully functional, machine/vehicle number: L3M0474, turning length: 500 mm, turning diameter: 300 mm, total height: 2,210 mm, total length: 3,950 mm, total width: 2,260 mm, overall weight: 5,680 kg, Equipment: documentation/manual, used Okuma lathe As-new, well-maintained condition 521 operating hours 347 spindle hours Kedpfx Aisy Rx Tdj Rjdr

Condition: like new (used), Year of construction: 2023, functionality: fully functional, Fixed setting vice with roller quills for SUI 80 TRENCIN Capacity : Kdjdou Tvdbspfx Ai Ror 210 - 370 mm 365 - 520 mm Only available as a set
