CNC Turning- and Milling Center

INDEX G300

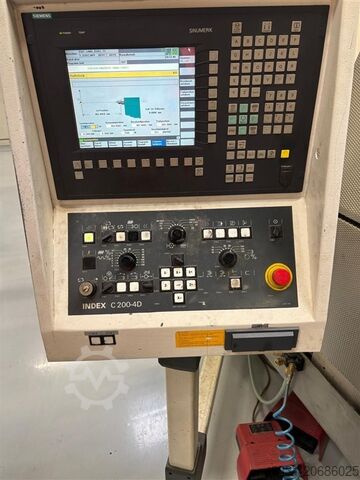

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 500522, spindle speed (max.): 3,500 rpm, overall weight: 6,500 kg, spindle diameter: 140 mm, counter spindle speed (max.): 3,500 rpm, TECHNICAL DETAILS Control: Siemens Sinumerik / Index C200-4D Main Spindle Spindle bore with collet clamping: 90 mm Spindle diameter at front bearing: 140 mm Kedpfxjxvq Rpe Ac Hefa Spindle nose ISO 702/1 (Size): 8 Chuck diameter: 250/315 mm Max. rated turning diameter: 270 mm Max. swing diameter: 590 mm Speed: max. 3,500 rpm Counter Spindle Spindle bore with collet clamping: 90 mm Spindle diameter at front bearing: 140 mm Spindle nose ISO 702/1 (Size): 8 Chuck diameter: 250/315 mm Speed: max. 3,500 rpm Min. distance collet: 20 mm Rapid traverse: 22.5 m/min Turret Number of tools: 12 MACHINE DETAILS Dimensions & Weight Footprint: approx. 8/10.5 m² Height: 2,150 mm Machine weight approx.: 6.5 t EQUIPMENT Tailstock Automatic loading and unloading system

Condition: used, Year of construction: 2000, functionality: fully functional, machine/vehicle number: 500358, turning length: 1,250 mm, turning diameter: 300 mm, spindle motor power: 43 W, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, INDEX G300L with Promot gantry loader. Machine is still in production and under power. The promot loader has 2 rotary indexing belts with approx. 30 pallet spaces each. The machine is equipped with high-pressure cooling lubricant (40 bar), paper belt filter and tool changer. For further information please contact us by mail. Kodpfx Aceu Nmq He Hsfa

Condition: used, Year of construction: 1995, turning diameter 300 mm turning length 710 mm control SIEMENS SINUMERIC 840 total power requirement 40 kW weight of the machine ca. 6000 kg dimensions of the machine ca. m I N D E X (Germany) CNC Controlled Slant-Bed Chuck Lathe with Turret and Tailstock and INDEX CNC Control C 200 – 4 (SIEMENS) Model G 300 Year 1995 S/N 5000 65 _____ Turning - Ø, with chuck, max. 300 mm Spindle bore 90 mm Max. Workpiece Swing dia. 400 / 590 mm Turning length / travel of turning slide, (X-Achse) max. 710 mm Turret head slide cross movement (Z-Axis) max. 140 mm Turret with 12 tool holder positions DIN 30 mm Feed range of turret slide / Quickfeed 0,1 - 20 m/Min. Feed Force of X/Z-Axis 8 – 13 kN Steplessly adjustable Spindle speeds up to 5.000 rpm Torque Forceon main spindle approx. 275 Nm Kfjdpet Hw Suofx Ac Hsa Spindle drive 28 kW Total electrical load appr. 40 kW - 400 V - 50 Hz Weight 6,000 kg Accessories / Special Features: * INDEX CNC Control Model C 200-4 resp. SIEMENS 840 C for 3 Axes X/Z Axis and Main spindle as C-Axis (Spindle Orientation) Control Panel mounted swivable on front left side of machine. * Spindle orientation in 2,5° degree steps and Spindle indexing device * Mounted hydraulic 3 Jaws Chuck make FORKHARDT Model HS 250 with many Sets of jaws. Speed up to 5.000 rpm * INDEX- Turret with 12 positions for DIN 30 tool holders, prepared for driven tools and motorized by the indexing motor, Choice of approx. 40 pieces toolholders * Hydraulic Tailstock with stroke of 50 mm and with concentricity correction device * KNOLL – Swarf Conveyor with Coolant Device and High Pressure Pump, Sliding door, Oilskimmer, etc. Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: reconditioned (used), Year of construction: 1996, functionality: fully functional, turning length: 1,250 mm, spindle diameter: 90 mm, number of slots in tool magazine: 24, Recently renewed (January 2024): Guides Z2 / Z4 / X2; Ball screws Z2 / X2 / Z4; Cable and hoses of the drag chains for Z2 / X2 / Z4 TECHNICAL DETAILS Turning length: 1,250 mm Spindle clearance HSP/GSP: 90 / 90 mm Spindle nose HSP/GSP: taper no. 8 C-axis HSP/GSP: yes (C4) / yes (C3) Turret 1 Axes: XYZB Stations / of which driven: 12 / 6 Additional milling spindle: Capto C4 with automatic tool changer for 6 tools Turret 2 Axes: XZ Stations / of which driven: 12 / 6 Coolant system Type: Knoll system with paper belt filter Low pressure: 8 bar High pressure: max. 80 bar EQUIPMENT - 2x Hainbuch 65 chuck - Numerous turning and drilling attachments with CDI interface - Mechanical steady rest for mounting on turret - Numerous driven tools CDI-Capto C4 radial and axial Kfodpfx Aevitznoc Hsa - Numerous fixed holders CDI-Capto C4 radial and axial

Condition: used, Year of construction: 2009, Technical details: turning diameter: 270 -300 mm turning length: 710 mm total power requirement: 43 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: 3,16 x 2,15 x 2,15 m Kodew Dud Eopfx Ac Hefa The machine does not include a chuck or tools – the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one. *

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 500641, turning length: 710 mm, turning diameter: 300 mm, travel distance X-axis: 215 mm, travel distance Y-axis: 180 mm, travel distance Z-axis: 710 mm, total height: 2,150 mm, total length: 2,150 mm, total width: 3,160 mm, TECHNICAL DETAILS Spindle Working Area Spindle bore (collet clamping): 65 mm Spindle diameter at front bearing: 110 mm Maximum speed: 5,000 rpm Spindle nose ISO 702/1 Size: 6 Chuck diameter: 250 mm Max. torque (100%): 275 Nm Max. power (100%): 43 kW Tailstock Electrically traversable Centre distance (710): 740 mm Max. thrust force (electric): 10,000 N Cross Slide 1 XYZ (upper) Traverse X-axis: 215 mm Traverse Y-axis: 180 mm Traverse Z-axis: 710 / 1,250 mm Feed force X-axis: 8,000 N Feed force Y-axis: 16,000 N Feed force Z-axis: 13,000 N Rapid traverse X-axis: 20 m/min Rapid traverse Y-axis: 7.5 m/min Rapid traverse Z-axis: 20 m/min Resolution X-axis: 0.0005 mm Resolution Y-axis: 0.0005 mm Resolution Z-axis: 0.001 mm Tool Carrier Number of tools: 12 Tool system DIN 69 880: Ø30 mm MACHINE DETAILS Dimensions and Weight Height: 2,155 mm Footprint (710): 4,140 mm x 2,155 mm Installation area (710, without bar feeder): 4,140 mm x 3,570 mm Weight (710): approx. 6,500–7,700 kg Three-phase current: 400 V, 50/60 Hz Kfjdpfx Ajwxw Upsc Hea Connected load: 24 to 83 kVA Main line fuse: 35 to 125 A EQUIPMENT Milling spindle set 6-position tool changer HKS-50B KM40 Material removal unit Workpiece handling WHU201 / WHW80/700 Chip conveyor: hinged belt Discharge height: 1,250 mm Coolant fine filtration: hydrostatic paper band filter Vacuum rotary filter W-UAT-106A MMS system LUBRIX 750
