Multispindle

INDEX MS 22-8

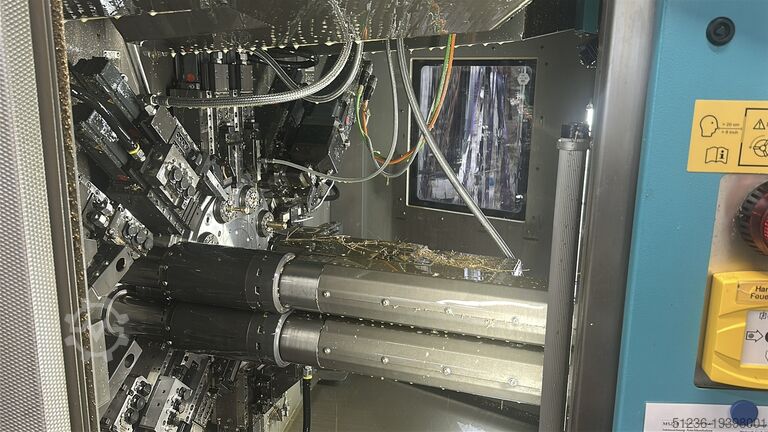

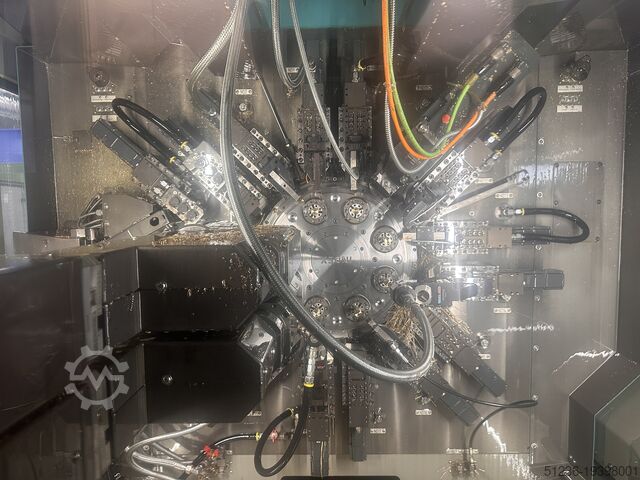

Condition: excellent (used), Year of construction: 2021, INDEX MS22-8 Mfd. 2021 (Commissioned 2022) Double NCU (2) Synchrons MBL Bar Feed 3.3 Meters Estimated Hours: 10,000 Djdpfx Ahewt Unvs Sskg Contact us for full specifications

Condition: new, Year of construction: 2025, spindle speed (max.): 8,000 rpm, spindle speed (min.): 8,000 rpm, 1 multispindle TORNOS SAS16-DC in rebuilding - new electrical cabinet SIEMENS or FANUC, to choose – pick-up with brake Dksdpsugl S Isfx Ah Seg – adjustable stop with counter operation – 3 independent feeding system – several tool-holders and drillings – drum bar with support – Options :automatic bar loader IEMCA PRA, numerical tapping, CNC cross slides, etc... Contact us.

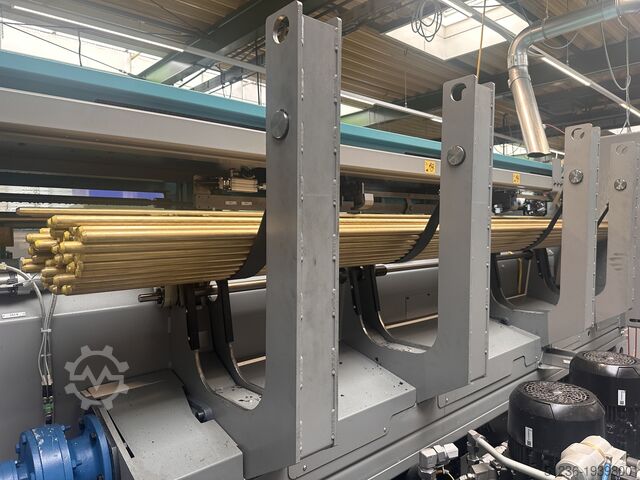

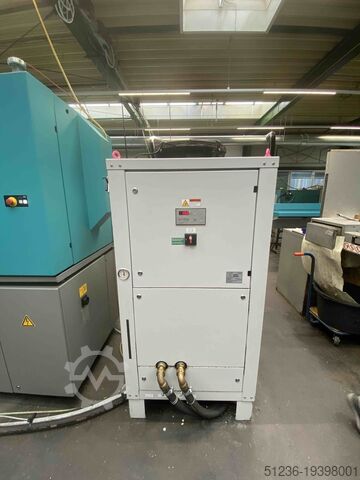

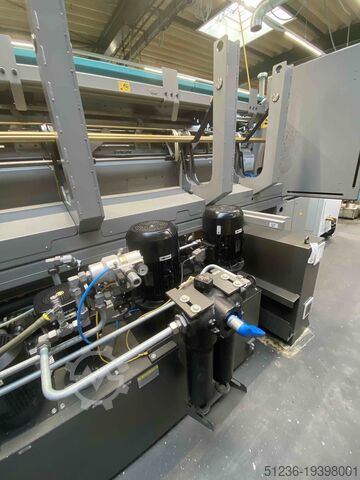

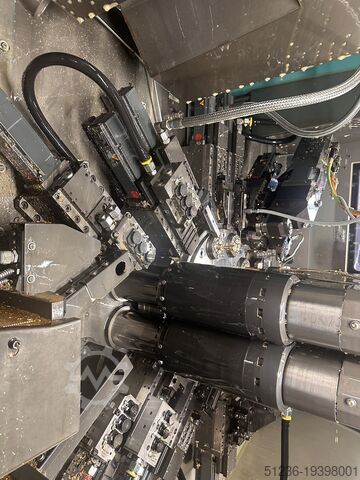

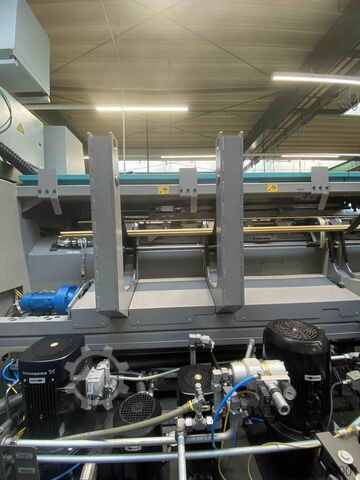

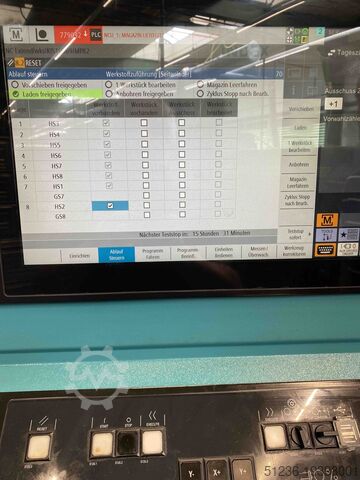

Condition: excellent (used), Year of construction: 2024, INDEX MS22-8 Mfd. 2024 2 NCU (4) Y-Axis SL Control Cutting hours: 1,000 Turnkey Available Located in Europe 4-Meter IEMCA SIR MS22-8/43/P Rack loader 50 Hz D9-13-19-25 Bar length 4300 mm with drilling unit and minimum quantity lubrication unit additional end-of-bar sensor Bar stock 500mm (D12-D24) Bar stock 340 mm (D5-D11). Additional storage chain for 22 bars with Profinet interface. 1 11007253 (21711) 1 set (8 pieces) bar stock pushers, Dodsx Ddcuspfx Ah Sskg external clamping for bar stock diameters D7-D10 mm, internal clamping for bar stock diameters D13-D18 mm, consisting of: 8 bar stock pushers D12 8 rotating sleeves D12 1 10287026 (21712) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D11-D16 mm, internal clamping for bar stock diameters D19-D24 mm, consisting of: 8 bar stock pushers D18 8 rotating sleeves D18 1 10536056 (21713) 1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm, consisting of: 8 bar stock pushers D23 8 rotating sleeves D23 1 10414481 (21702) 1 set (8 pcs.) of internal clamping sleeves D12mm for bar diameters D13 mm - D18 mm Drill diameter D8 mm. 1 10472413 (21704) 1 set (8 pcs.) of external stops D12 mm for bar diameters D13 mm - D18 mm pre-machined. 1 10264327 (21703) 1 set (8 pcs.) of internal clamping sleeves D18mm for bar diameters D19 mm - D24 mm Drill diameter D15mm. 1 10058206 (21705) 1 set (8 pcs.) of external stops D18 mm for bar diameter D19 mm - D24 mm pre-machined. 1 12123486 Drill for drilling unit consisting of: 1 indexable insert drill D 15 mm 10 indexable inserts for steel 2 solid carbide drills D 8 mm

Condition: used, Year of construction: 2024, INDEX MS22-8 Mfd. 2024 2 NCU (4) Y-Axis SL Control Cutting hours: 1,000 Turnkey Available Located in Europe 4-Meter IEMCA SIR MS22-8/43/P Rack loader 50 Hz D9-13-19-25 Bar length 4300 mm with drilling unit and minimum quantity lubrication unit additional end-of-bar sensor Bar stock 500mm (D12-D24) Bar stock 340 mm (D5-D11). Additional storage chain for 22 bars with Profinet interface. 1 11007253 (21711) Dkodpfx Ahjxnrtce Ssg 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D7-D10 mm, internal clamping for bar stock diameters D13-D18 mm, consisting of: 8 bar stock pushers D12 8 rotating sleeves D12 1 10287026 (21712) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D11-D16 mm, internal clamping for bar stock diameters D19-D24 mm, consisting of: 8 bar stock pushers D18 8 rotating sleeves D18 1 10536056 (21713) 1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm, consisting of: 8 bar stock pushers D23 8 rotating sleeves D23 1 10414481 (21702) 1 set (8 pcs.) of internal clamping sleeves D12mm for bar diameters D13 mm - D18 mm Drill diameter D8 mm. 1 10472413 (21704) 1 set (8 pcs.) of external stops D12 mm for bar diameters D13 mm - D18 mm pre-machined. 1 10264327 (21703) 1 set (8 pcs.) of internal clamping sleeves D18mm for bar diameters D19 mm - D24 mm Drill diameter D15mm. 1 10058206 (21705) 1 set (8 pcs.) of external stops D18 mm for bar diameter D19 mm - D24 mm pre-machined. 1 12123486 Drill for drilling unit consisting of: 1 indexable insert drill D 15 mm 10 indexable inserts for steel 2 solid carbide drills D 8 mm

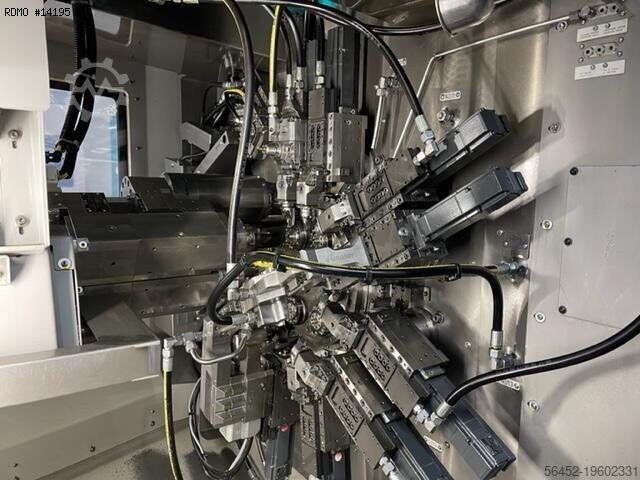

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Max. bar diameter : 22 [mm] - Spindle speed : 10,000 [rpm] - Spindle power : 8.7/15 [kW] - Torque : 10/18 [Nm] - Number of counter-spindles : 2 - Spindle speed : 10,000 [rpm] - Number of slides : 10 - Travels : X x Z = 62 x 85 [mm] - Number of counter-operation slides : 2 - Travel : X = 62 [mm] - Dimensions : 3330 x 1830 x 2860 [mm] - Weight : 5700 [kg] - Connected power : 75 [kVA] - Production hours : 20,000 [h] EQUIPMENT Djdpew Ah R Njfx Ah Sjkg - CN Siemens 840D SL - 2 NCU - TRANSMIT / TRACYL function - ARTIS - 2 additional electronic shaft preparations - 2 SCARA counter-spindles - 2 parts catchers with conveyor belt - Bar scrap recuperator - Index bar guide - Bar feeder predisposition - Fire protection system

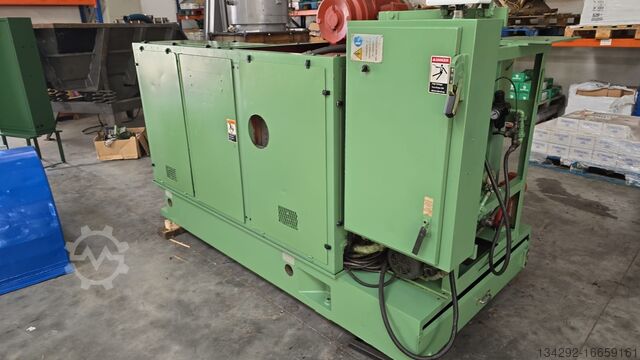

Condition: refurbished (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 28727, DOUBLE-STROKE HEADER NATIONAL 61MS operational Machinery operational, fully functional. Revised in 2024 (mechanical and electrical parts) Available for any test c/o HBR srl Number of die: 1 Number of punches: 2 Pieces per min.: 400 Cutoff diameter: 6 mm. Cutoff length (min./max.): 10/52 mm. Kickout stroke-die (min./max.): 4.8/30 mm. Kickout stroke-punch (max.): 9.5 mm. Upset diameter: 14 mm. Quill diameter: 19 mm. Cutter insert diameter: 12 mm. Die diameter: 41 mm. Dkjdpfx Ahjt Rp A Hs Ssg Cone punch diameter: 32 mm. Finish punch diameter: 35 mm. Power of main motor: 15 KW Floor space (width): 1.340 mm. Floor space (length): 2.680 mm. Height: 1970 mm. Net weight: 4.700 kg. Gross weight: 5.400 kg.

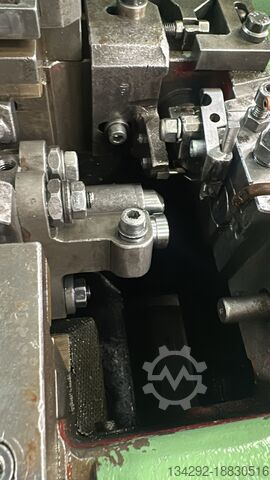

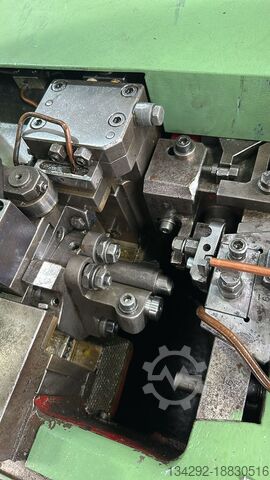

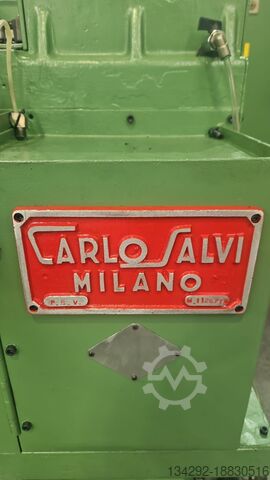

Condition: refurbished (used), Year of construction: 2024, DOUBLE STROKE HEADER CARLO SALVI PSV revised on 2024 New electrical system. Min. and max. diam.: 0,8 - 3 mm. Max. cutoff length: 37 mm. Dkedpfx Ahov Tzgye Sjg Max. shank length: 25 mm. Max. production per min.: 600 pz. Motor Power: 5 HP Net weight: 1600 kg. Overall size: 1900x850x1100 mm.

Condition: used, Year of construction: 1972, functionality: fully functional, machine/vehicle number: M20I/9028, Offer Number: M20I/9028 Machinetype: rivet header Make: Carlo Salvi Type: RF/GL Dkjdpfxewzkyde Ah Sog Constr. year: 1972 diameter range: 5-8 mm shaft length under head: 60 mm max. cut-off length: 90 mm output pieces/min: 200 Location: Germany

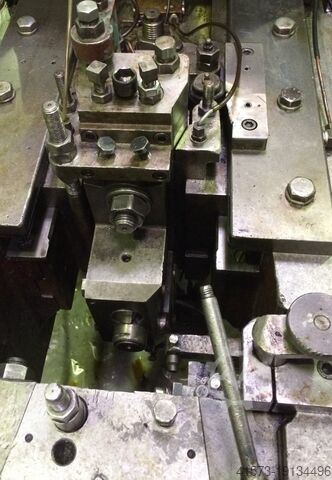

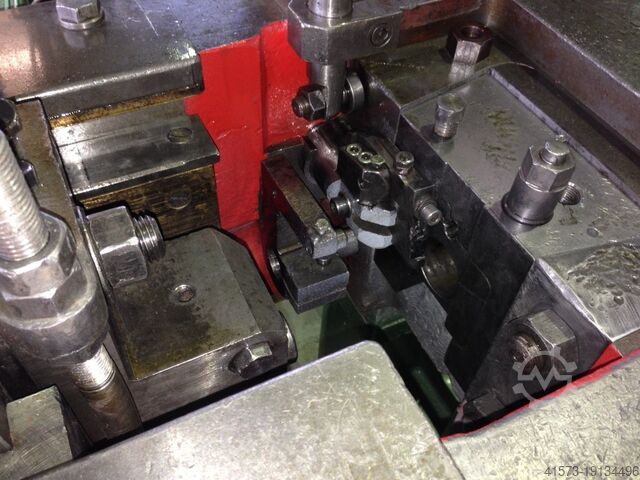

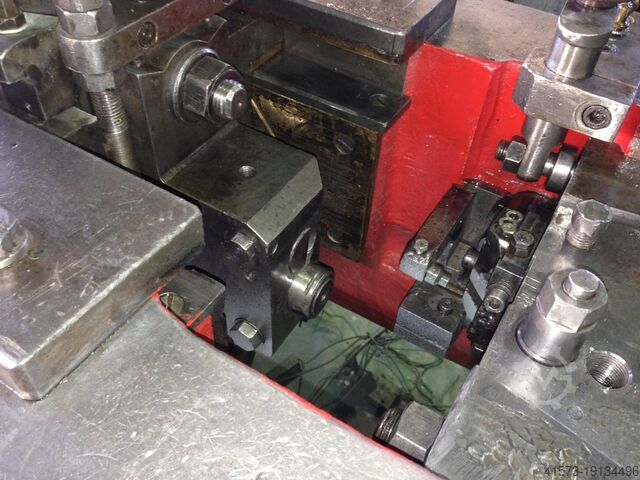

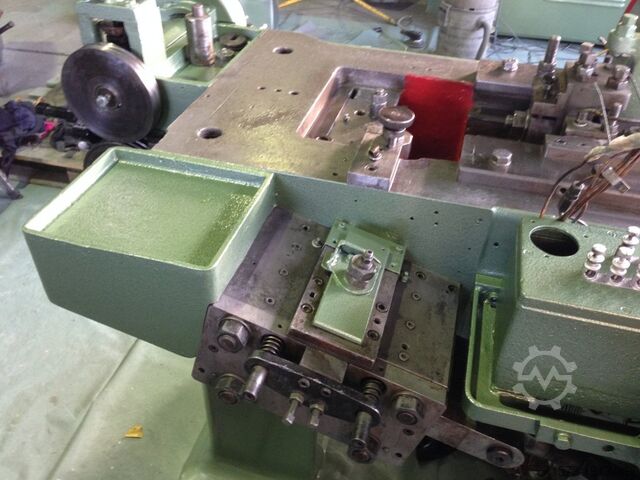

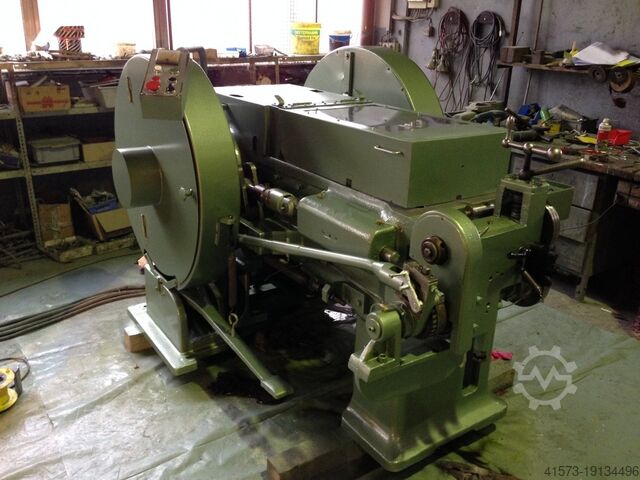

Condition: used, Year of construction: 1983, functionality: fully functional, machine/vehicle number: M06L/6490, Offer Number: M06L/6490 Dsdpfswi Tbaox Ah Sekg Machinetype: double blow header Make: HILGELAND LIZ Type: CH2 Constr. year: 1983 diameter range: 4-8 mm shaft length under head: 8-80 mm max. cut-off length: 110 mm output pieces/min: 140 Location: In our warehouse

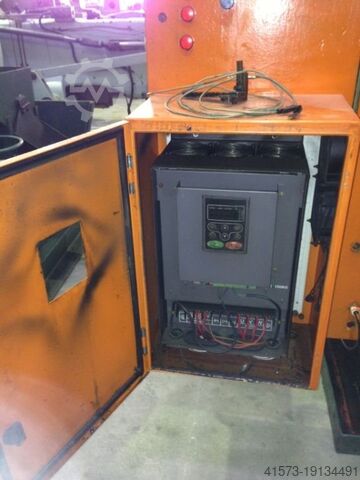

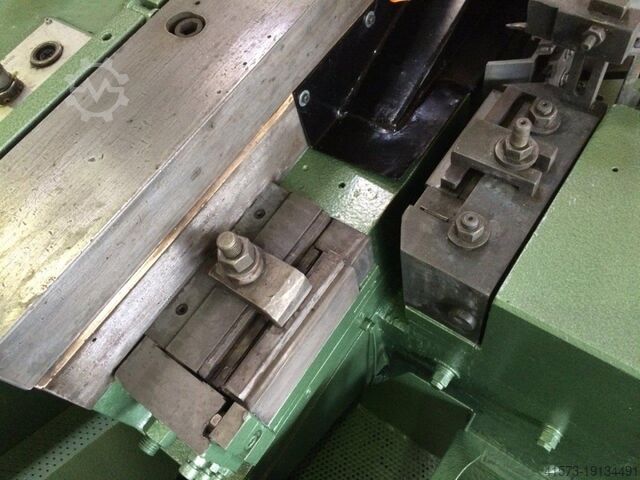

Condition: used, Year of construction: 1970, functionality: fully functional, machine/vehicle number: M14L/6907, Offer Number: M14L/6907 Machinetype: thread rolling machine - flat die Info: vibratory feeder Make: MALMEDIE Type: AG13 Constr. year: 1970 diameter range: 8-16 mm shaft length under head: 150 mm max. thread length: 83 mm output pieces/min: 120 Djdpfx Aswi Ta Neh Sjkg Location: In our warehouse
