Cnc multispindle lathe

INDEX MS32C

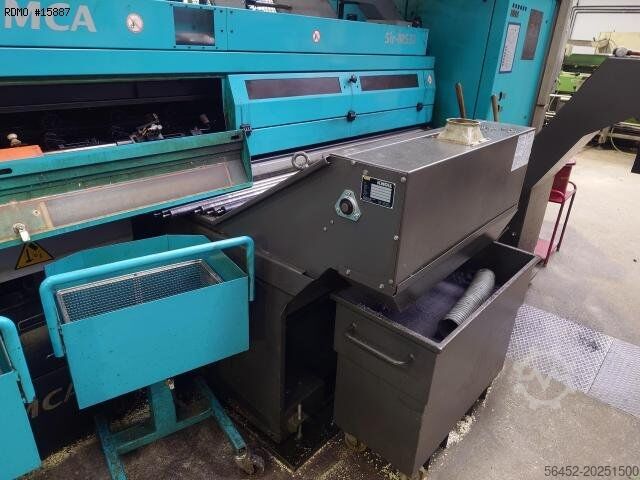

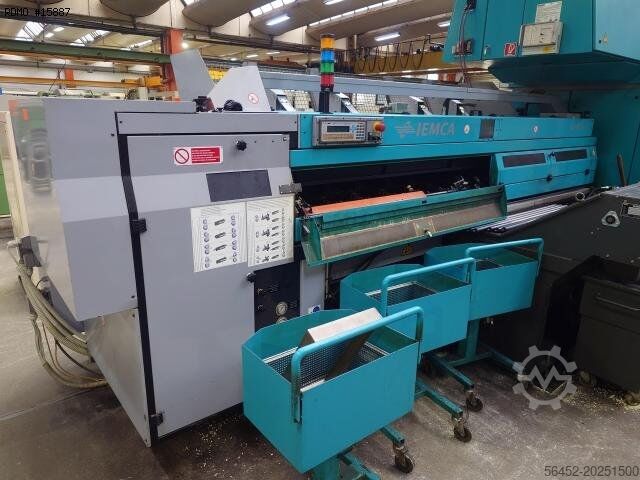

Condition: used, TECHNICAL DETAILS - number of spindles : 6 independent - bar clearance : 32 [mm] - maxi spindle speed : 6 300 [rpm] - machine equipped with 32 numerical axes - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 1.2 : fixed X axis, Z axis controlled by CNC - slide unity 2.1 : fixed X axis, Z axis controlled by CNC Lsdeuhaxlopfx Ammeac - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : fixed X axis, Z axis controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : fixed X axis, Z axis controlled by CNC - slide unity 5.1 : fixed X axis, Z axis controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - counter-spindle position 6.1 EQUIPMENT - INDEX C200-4 control (Siemens SINUMERIK 840D) - Simple NCU - IEMCA SIR MS32/33/P bar loader - Coolant tank with HP pump - KNOLL chips conveyor - Parts catcher with conveyor in position 6 - Cross drilling device in position 3.1 et 4.1

Condition: used, Year of construction: 2007, functionality: fully functional, 6-spindle Hainbuch Spanntop Axfix D22 ARTIS integrated process monitoring system Slide units - Slide unit 1.1: X-axis fixed, Z-axis NC-controlled - Slide unit 2.1: X-axis fixed, Z-axis NC-controlled - Slide unit 1.2: X-axis and Z-axis NC-controlled - Slide unit 2.2: X-axis and Z-axis NC-controlled - Slide unit 3.1: X-axis and Z-axis NC-controlled Lajdpfoyymbzjx Ammsc - Slide unit 3.2: X-axis and Z-axis NC-controlled - Slide unit 4.1: X-axis and Z-axis NC-controlled - Slide unit 4.2: X-axis and Z-axis NC-controlled - Slide unit 5.1: X-axis and Z-axis NC-controlled - Slide unit 5.2: X-axis and Z-axis NC-controlled - Slide unit 6.1: swiveling axis and Z-axis NC-controlled - Slide unit 6.2: X-axis and Z-axis NC-controlled Synchronization device, position 6.1 Part discharge via chute Workpiece conveyor belt at spindle position 6 High-pressure pump Fire extinguishing system Coolant cleaning system Hinged belt chip conveyor Flat loading magazine: IEMCA SIR MS 22/33 P

Condition: used, Cnc multispindle lathe INDEX MS32C Lasdpfxoxt U Hps Ammoc

Condition: used, TECHNICAL DETAILS - number of spindles : 6 independent - bar clearance : 32 [mm] - maxi spindle speed : 6 300 [rpm] Lsdpfxjuhauyj Ammoac - machine equipped with 28 numerical axes - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : X and Z axes controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : X and Z axes controlled by CNC - slide unity 5.1 : X and Z axes controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - synchronous unit, spindle position 6.1 EQUIPMENT - INDEX C200-4 control (Siemens SINUMERIK 840D) - Simple NCU - IEMCA SIR MS32/33/P bar feeder - Coolant tank: KNOLL AE 1076 * with high-pressure pump - KNOLL VRF 500 chips conveyor - Parts catcher with conveyor in position 6

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, spindle speed (max.): 12,000 rpm, feed length X-axis: 400 mm, feed length Y-axis: 400 mm, feed length Z-axis: 250 mm, type of input current: three-phase, rotational speed (max.): 12,000 rpm, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 250 mm, grinding spindle motor power: 10,500 W, power: 10.3 kW (14.00 HP), input current: 30 A, input frequency: 50 Hz, input voltage: 400 V, grinding wheel speed: 12,000 rpm, year of last overhaul: 2024, Equipment: rotational speed infinitely variable, For Sale: 2008 Schütte 305 Linear 5-Axis CNC Tool & Cutter Grinder | Siemens 840D | New Spindle | Medical-Grade Machine Now available at Used Machine Tools Ireland Ltd, this high-precision Schütte 305 Linear 5-Axis CNC Tool and Cutter Grinder (2008) is an exceptional solution for tool regrinding, complex geometry grinding, and high-volume production. Previously in operation at a leading medical device company, this machine has been meticulously maintained, with a brand-new spindle installed in 2024. This grinder is fully equipped with modern tooling support systems including fire suppression, Absolent mist extraction, Ebbco coolant filtration, and in-line chiller, making it production-ready for demanding grinding applications. 🔹 Manufacturer: Alfred H. Schütte 📅 Year of Manufacture: 2008 📍 Location: Ireland ⚙️ Condition: Very Good – Ex-medical device use 🚀 Availability: Immediate 🔧 Spindle: Replaced in 2024 🛠️ Technical Specifications: Machine: Schütte 305 Linear CNC Tool & Cutter Grinder Machine Type: 5 Axis CNC Grinder Model: 305 Linear Year: 2008 Control: Siemens 840D with Windows XP Axes: 5-Axis CNC X-Axis Travel: 400 mm X-Axis with Tailstock: 400 mm Y-Axis Travel: 400 mm Z-Axis Travel: 250 mm Spindle Motor Power: 14 HP Spindle Speed: Up to 12,000 RPM Software: SIGS – Schütte Integrated Grinding Software Condition: Very good – Ex-medical device industry Spindle Replaced: 2024 (new) ⚙️ Equipped With: 🔥 Fire Suppression Unit 🌫️ Absolent Mist Extraction System 💧 Ebbco Coolant Filtration Unit ❄️ Ebbco In-line Chiller 🧠 Advanced SIGS Grinding Software 🛡️ New Spindle (2024) 💡 Ideal Applications: Tool & cutter regrinding Custom tooling production Precision carbide & HSS grinding Medical, aerospace, and high-specification manufacturing Schütte 305 Linear for sale Used 5-axis CNC tool grinder Tool and cutter grinder Siemens 840D Schütte SIGS software grinder CNC tool regrinding machine Ireland Schütte tool grinder with mist extraction Medical-grade grinding equipment High-performance cutter grinder 5-axis Laodpfx Amsw Nyciemsc Notes: *Specifications are given in good faith but not guaranteed*

Condition: used, Cnc multispindle lathe INDEX MS 32 C Ljdpsuhaqbjfx Ammsac

Condition: used, TECHNICAL DETAILS - number of spindles : 6 independent Ledpfxouhangs Ammeac - bar clearance : 32 [mm] - maxi spindle speed : 6 300 [rpm] - machine equipped with 32 numerical axes - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 1.2 : fixed X axis, Z axis controlled by CNC - slide unity 2.1 : fixed X axis, Z axis controlled by CNC - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : fixed X axis, Z axis controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : fixed X axis, Z axis controlled by CNC - slide unity 5.1 : fixed X axis,Z axis controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - counter-spindle in position 6.1 EQUIPMENT - INDEX C200-4 (Siemens SINUMERIK 840D) - Simple NCU - IEMCA SIR 32/33/P bar loader - Coolant tank with HP pump - KNOLL chips conveyor - RIEDEL cooling unit - Parts catcher with conveyor in position 6.1 - Cross rilling device in position 3.1 et 4.1

Condition: ready for operation (used), Year of construction: 2000, spindle motor power: 22,000 W, total height: 2,050 mm, overall weight: 4,000 kg, controller manufacturer: INDEX, controller model: C200-4 / C200-8, This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Additional equipment • Synchronous device for counter spindle machining • Tool carrier 3 for synchronous spindle (rear end machining) • Additional milling spindle • Thread milling and polygon turning device • Gripperless tool changer (6 tools, HKS-50 B, KM40) • Workpiece handling WHU100 • with c-axis • no driven tools Machine Benefits Technical Machine Benefits • Space requirement (without material guide): 3580 x 3108 mm • Control unit: resolution: 0. 001 mm (input/output/correction) • Comprehensive movement range with multiple axes configuration Ljdpfx Amsyailzjmeac • High precision with 0. 001 mm resolution in numerical control • Versatile expansion stages and additional equipment for enhanced functionality Extra Information Movement Cross slide 1 (top) - XYZB axes: X-axis: Slide path 155 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Y-axis: Slide travel 120 mm, feed force 10000 N, rapid traverse 7.5 m/min, resolution 0.0005 mm Z-axis: Slide path 590 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm B-axis (rotating): 360° swivel range, angular steps 5° (with locking), resolution 0.001° (with clamping), switching time for 180°: 1 s Cross slide 2 (bottom) - XZ axes: X-axis: Slide travel 105 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Z-axis: Slide path 307 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm Turret Turret right: X-axis: Slide path 120 mm Z-axis: Slide travel 400 mm Tail Stock Center distance: 400 mm Pressure force (max): 5500 N Drive: Hydraulic or electric Media Power supply: 400 V, 50/60 Hz Connected load: 20-45 kVA Current consumption: 35-80 A Hydraulic system: Delivery rate: 18 l/min System pressure: 90 bar Filling capacity: 70 liters Cooling lubricant system: Pump capacity (switchable): 20 l/min at 18 bar / 50 l/min at 3 bar / 60 l/min at 5-7 bar Filling quantity: Approx. 230 liters Chip conveyor: Hinged belt or scraper Workpiece holder: Main spindle: DB5 internal mount / D140 external mount, optional short taper Counter spindle: D140 external mount (only tensile clamping permitted for collet and chuck clamping) 1st spindle data (main/counter spindle): Spindle clearance (collet clamping): Variants: 30 mm / 42 mm / 60 mm / 65 mm Spindle Ø in front bearing: 75 mm (with 30 mm clearance) / 85 mm (42 mm) / 100 mm (60+65 mm) Speed (max): 7500 rpm (30 mm) / 6300 rpm (42 mm) / 5000 rpm (60 mm) Spindle nose: ISO 702/1 (size 4 or 5) Chip diameter (workpiece Ø): 110-130 mm (30 mm) / 140-160 mm (42 mm) / 165 mm (60 mm) Torque (Md max 100%): 33-62 Nm (30 mm) / 35-95 Nm (42 mm) Power (P max 100%): 7-13 kW (30 mm) / 7.5-20 kW (42 mm) Dimensions Machine Depth 3580 mm

Condition: refurbished (used), Used INDEX MS 32 C tower, overhauled in 2023 Equipment: -SIR MS32P with shelves 3300 mm long, screwed rails -Counter spindle -KNOLL complete with 1 HP pump -Bar stop control -Programmable inputs / outputs Lsdpfx Ajuqi D Rjmmjac -4 tool breakage controls -1 NCU1 and 3 NCU2 rotary tool drives -1 WTO stroke doubler, 3 positions, motorised on station 1 -2 drilling units with 6044 motor sold with the machine. -Transmit Equipment listed below with : CNC axis: 1.1 XZ 1.2 Z 2.1 Z 2.2 XZ 3.1 XZ 3.2 XZ 4.1 XZ 4.2 XZ 5.1 XZ 5.2 XZ 6.1 XZ 6.2 XZ

Condition: used, Year of construction: 2011, INDEX MS22-6 Ledpfx Amjy Ihk Hjmjac Mfd. 2011 IEMCA SIR Loader Knoll System Equipped as pictured
