CNC Lathe

Index V 200

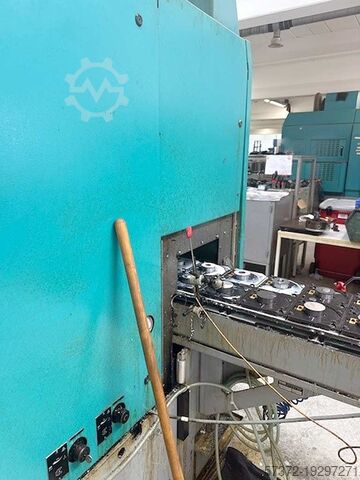

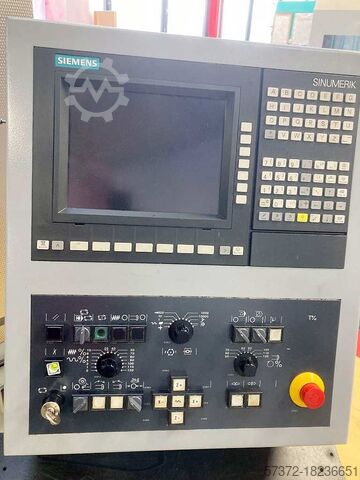

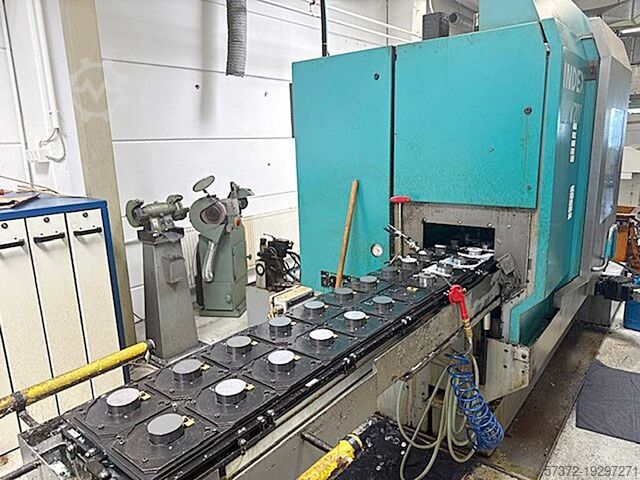

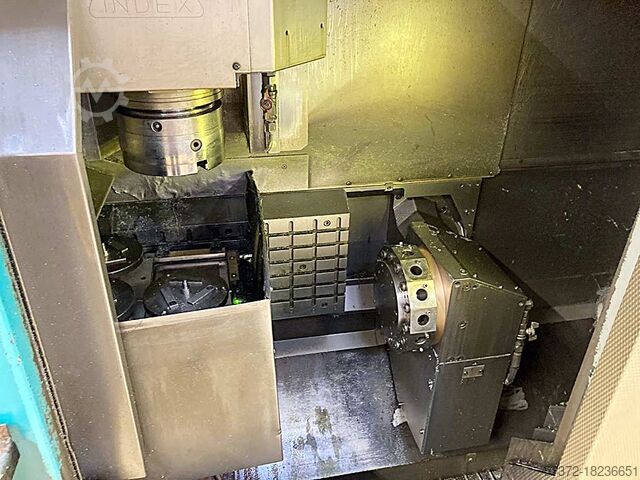

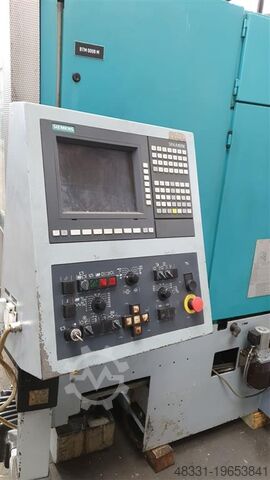

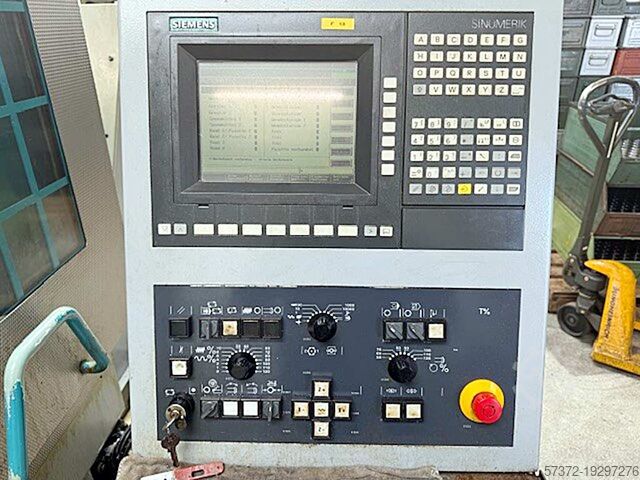

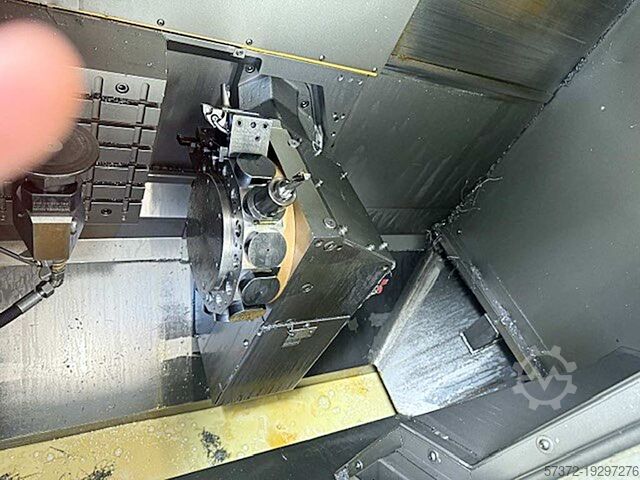

Condition: ready for operation (used), A CNC vertical lathe Index with a C-axis, driven tools and palletizing is available. Spindle bore: 30mm, speed: 5000rpm, power: 7kW, torque: 33Nm, travel X/Z: 200mm/520mm, rapid traverse X/Z: 30m/min, feed force X/Z: 5000N, C-axis resolution: 0.001°, tool positions: 12, speed: 6000rpm, turning diameter: 270mm, orbital diameter: 325mm, turning length: 200mm. Machine dimensions X/Y/Z: approx. 3250mm/2100mm/2250mm, weight: approx. 3200kg, control: Siemens. Documentation available. On-site inspection is possible. Rcjdswp R U Dopfx Agiok

Condition: like new (used), Year of construction: 2021, functionality: fully functional, This multi-axis CNC lathe, CMZ TTL-66-66-T1Y-T2Y, was manufactured in 2021. It features a maximum bar capacity of 66 mm (both spindles), a turning diameter of up to 220 mm, and a main spindle power output of 35.5 kW. The machine is equipped with two high-performance spindles with a 66 mm bar passage, two turrets with 12/24 tool stations, driven tools with 14 kW and 12,000 rpm, and Y-axis capability on both the upper and lower turrets. It includes a 35-bar high-pressure coolant system, complete with a filtration system and an additional tank. For more information about this lathe, please refer to the attached brochure or contact us directly. Equipment includes: - LPS for left spindle - Reduction tube for left spindle - Hainbuch AXFIX 65 collet chuck (standard) 2703/0008 for left spindle - Hainbuch AXFIX 65 collet chuck (standard) 2703/0008 for right spindle - Tool presetting device - Side-mounted chip conveyor (standard version) - Upper tool turret (T1) high-pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar), including 75µm filter - Lower tool turret (T2) high-pressure coolant pump with three programmable pressure levels (35, 15 & 6 bar), including 75µm filter - Coolant wash nozzle - TA/06000/10 8,000W coolant chiller unit - Machine status indicator light - Tool life management system - Tool load monitoring Rsdpoxmhdnsfx Agisck - Programmable automatic parts catcher (pneumatic) - The workpiece extractor is equipped with a pneumatic gripper for automatic opening and closing to retrieve finished parts - Pneumatic ejector for the sub-spindle with 100 mm adjustable stroke. End position detection via sensor - Coolant supply through right spindle - Interface for bar feeder (unimag) - Preparation for extraction unit, connection flange Ø100 The machine comes complete with a chip conveyor, coolant unit, and tool package. It is available for immediate inspection under power, and available at short notice. Single-shift operated. Further information available on request.

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, Unrun diameter: 260mm, Turning height: 200mm, Spindle clearance: 30mm, Spindle speed: 7500rpm, Power: 10kW, Torque: 49Nm. Travel X/Z: 520mm/200mm, rapid traverse X/Z: 30m/min, tool positions: 14, tool holder: VDI 30, drive tool speed: 6000rpm. Machine dimensions X/Y/Z: approx. 2100mm/2100mm/2300mm, weight: approx. 3300kg, control: Siemens Sinumerik. The X-axis of the machine makes running noises. Documentation available. On-site inspection is possible. Rodjvpvinjpfx Agiock

Condition: excellent (used), TORNOS DT 26/5 is a CNC automatic lathe for precision, high accuracy and reliability. 5+2 axes, 2 spindles, max workpiece length 195 mm, bar ø25.4 mm; 2 tool-holders, 22 stations, 4 turning/4 drilling tools. Spindle 0–10,000 rpm, 8.2 kW (back spindle 8.2 kW); driven tools 5,000 rpm, 1 kW. Rapid traverse 32 m/min; weight ≈2400 kg; L2912×W1300×H1720 mm. Accessories: bar loader Top Automazioni, high‑pressure coolant 20 bar, central lubrication, status light. Achieves tight tolerances; sectors: automotive, watchmaking, toolmaking, aerospace, medical. Redpfxsxx U Spo Agijck

Condition: used, Year of construction: 2021, Lathe CMZ TTL 66, year of manufacture 2021 Redjw D Sm Depfx Agiock New price €418,000 9,500 power-on hours
