Tank

Inox Behälter GmbH EBB150RWAD

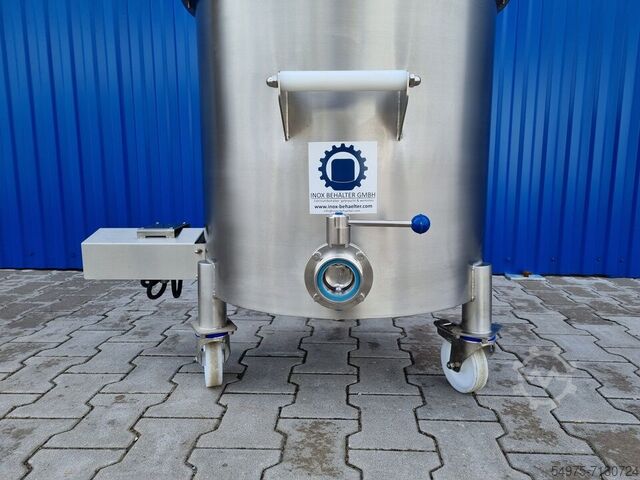

Factory new electrically heated stainless steel agitator tank
Item number: EBB150RWAD
Volume: 152L
Approx. dimensions: Ø 660mm x cyl. height 625mm
Isdpfsh Hxxfex Apcoia
total height: 910mm
Material: 1.4301 stainless steel V2A
Surface: inside and outside matt grinded
Welding seams ground
max. operating temperature: 110°C
Operating pressure tank: ATM
-standing design on rollers
-upper bottom: central traverse for agitator with two hinged lid halves
-Lower bottom: Flat bottom with side outlet DN50 DIN11851 and disc valve
-Stirrer flange connection on the upper bottom
-2x handle for pushing
-1x type plate
Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is done by electric radiator in the double jacket.
Power: 9KW
Operating voltage: 3PH 400V
Incl. supply line 16A CEE plug
Centric agitator:
Slow running anchor agitator with wall scrapers

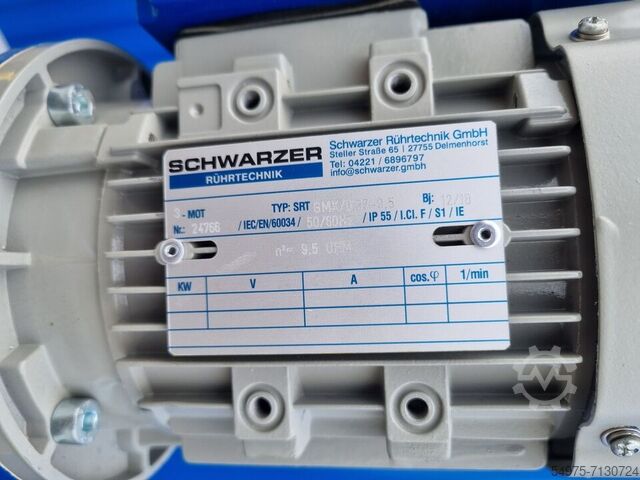

Type: SRTGMK/0,37-9,5
Make: Schwarzer Rührtechnik GmbH
Power: 0,37KW
Speed: 0-9,5UPM
Operating voltage: 1PH 230V
Material in contact with product: 1.4301 stainless steel
-Gearbox and motor in latest aluminum technology, make Getriebebau NORD
-Gearbox with food-approved oil filling "Klüber".
-Massive agitator shaft attached to the agitator motor with sleeve coupling, removable
-Stirrer shaft balanced for concentricity in the speed range
-1Piece space-gripping anchor agitator in the tank, weld seams ground, arranged close to the wall
-2 Teflon wall wipers in the cyl. area, one at the bottom
-stainless steel
[...]
