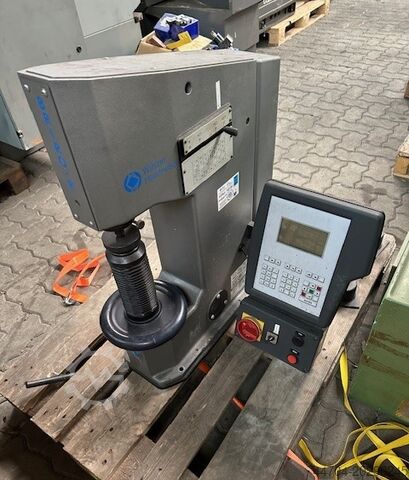

Superrockwell hardness tester

ITW Bühler Wilson Briro RK Automat

Condition: used, Year of construction: 1957, brinell hardness 250 kg rockwell hardness 150 kg throat 130 mm checking height 300 mm weight of the machine ca. 0,150 t dimensions of the machine ca. 650 x 530 x 1550 m Tests possible by system Rockwell, Vickers, Brinell. Bjdpou T R Tkefx Ambjdd This device is a used one. Therefore we sell it without warranty.

Condition: like new (used), functionality: fully functional, Year of construction: 2023, - Automatic hot mounting press - Bdsdst Dvyfspfx Ambsd Product details: - corrosion-resistant table model with automatic hydraulic hot mounting - electro-hydraulic automatic system - 7-inch user-friendly LCD touchscreen system - Preset programming and data storage parameters (up to 100 memory locations) - Setting of heating time, cooling time, assembly temperature, pressure build-up and cycle start via the LCD touchscreen - Cooling process - slow cooling, medium cooling and fast cooling mechanism. - Easy replacement of the mold assemblies - Sliding locking mechanism - Automatic water cooling system - Timer buzzer display for heating and cooling cycles - Possible sizes: 1 inch, 1 ½ inch, 2 inch, 30 mm, 40 mm and 50 mm - Power supply: 230 V / 50 Hz - Machine color: 3-Rath design (grey/red)

Year of construction: 2003, condition: used, functionality: fully functional, machine/vehicle number: 59 226 035 580 030, Type: SC/KWT 450 Salt Spray Chamber Bedpjx Ig Tmofx Ambsdd Technical Data: - Test chamber volume: 450 liters - System weight: 140 kg (test chamber + machine unit; without brine and without test specimens) - Brine reservoir: 180 liters - Maximum load: 100 kg, 8 kg per support rod - External dimensions: Height without hood 920 mm, height with hood 1370 mm, width 1930 mm, depth 800 mm - Test chamber dimensions: Height 740 mm, width 850 mm, depth 570 mm - Control unit: Simcon/32 - Condition: used - Operating hours: 22,914 h Connection Data: - Voltage: 1/N/PE AC 230V ±10% 50Hz - Rated power: 2.0 kW - Rated current: 8.5 A - Power consumption: 450 Wh/h - Brine consumption: approx. 0.5–1 liter per hour - Compressed air consumption: approx. 1.5 m3/h at 0°C and 1 bar - Deionized water consumption: approx. 0.4 liters per hour Application Areas: - Salt spray test in accordance with DIN 50021 - Condensation water test in accordance with DIN 50017 - Standard climate (ventilation): DIN 50014 The system has been serviced and calibrated annually by the manufacturer, with no outstanding repairs (full maintenance contract). Last maintenance/calibration/DGUV3 inspection: 03/2025. The system will remain connected until week 3 and can be inspected during this time. All installation and operating manuals as well as the service manual are available.

Condition: good (used), Robust universal hardness tester suitable for Rockwell, Vickers, and Brinell measurements. Sturdy machine stand designed for rugged everyday use. Measuring systems: - Measuring head with ground glass - Rockwell with dial Bodowg R Thspfx Ambjdd Test height 300 mm Test depth 150 mm Hardness tester dimensions L x W x H 610 x 350 x 940 mm, without base frame Machine weight approx. 260 kg

Condition: excellent (used), Professional, mechanical analog hardness tester for measuring the hardness of metals according to the following scales: Brinell / Rockwell B / Rockwell C / Vickers The device operates without power – ideal for fast measurements in the field, during production, or for quality control. Features: • Original set with carrying case, manual, and accessories • BRINELL, ROCKWELL B and C, and VICKERS scales • Model: No. 3 / Instrumatic Universal Härteprüfgerät • Manufacturer: C.V. Instruments Ltd, Bradford, England • Mechanical dial indicator – measurement without power supply • Clear analog measurement scale ⸻ Set includes: • Hardness tester • Carrying case Bedpfx Ajvbwziombedd • User manual in German • Set of adapters and bushings (visible in the set) Condition: Like new / warehouse stored Equipment unused or tested only a few times – no signs of wear.
