High performance pillar drilling machine
IXION BS 30 AV-G

Name: IXION BS 30 AV-G
Brand: IXION
Availability: InStock

Year of construction

1992

Condition

Used

Location

Rödermark

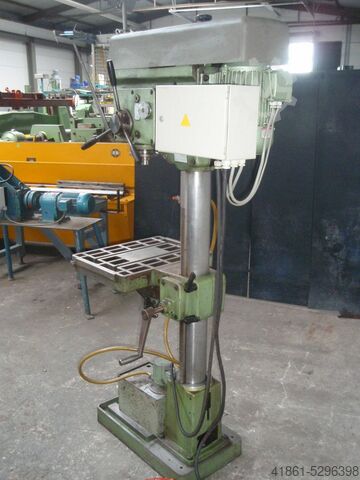

High performance pillar drilling machine IXION BS 30 AV-G

Show map

Machine data

Machine type:: High performance pillar drilling machine

Manufacturer:: IXION

Model:: BS 30 AV-G

Machine number:: 144202

Year of construction:: 1992

Condition:: good (used)

Price & Location

Location:: Odenwaldstr. 63, 63322 Rödermark, Deutschland

Call

Details about the offer

Listing ID:: A529-6398

Reference number:: Lg.-Nr. 10575

Update:: 04.02.2025

Description

Technical data:

- Drilling capacity in steel ST 60 32 mm
- Thread cutting device up to M 20
- Drilling spindle holder MK 3
- feeds 0,1 + 0,2 + 0,3 mm/rev
Hjdpfx Afjgbykrecoi
- Drilling spindle stroke 150 mm
- 12 drilling spindle speeds 80 - 1400 rpm
- throat 280 mm
- max. distance table - drilling spindle 760 mm
- Table with 2 T-slots 550 x 400 mm
- Height adjustable via toothed rack with hand crank
- drive 400 V / 1,4 / 2,3 kW
- Space requirement approx. W 550 x H 1950 x D 850 mm
- Weight approx. 360 kg
- with: - coolant device
- quick-action drill chuck
- 20 pcs. HSS div. drill bits 8 - 25 mm

The listing was translated automatically. Translation errors are possible.
