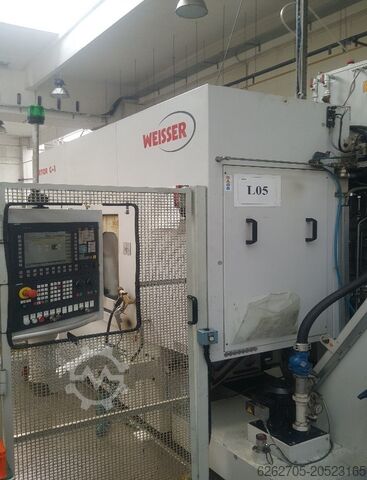

Strung verticalJ.G. WEISSER
VERTOR C-1 HOT
Machine data
- Machine type:
- Strung vertical
- Manufacturer:
- J.G. WEISSER
- Model:
- VERTOR C-1 HOT
- Machine number:
- 179056920
- Year of construction:
- 2011
- Condition:
- good (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Calea Chisinaului Nr. 132, C4 building, C1-parter, 1 floor, C2-parter, et.1, 700178 Iași, România
Details about the offer
- Listing ID:
- A205-23165
- Reference number:
- L5
- Update:
- 13.11.2025
Description
Work Area
- Chuck diameter: 600 mm
- Max. workpiece diameter/height: 450 / 400 mm
- Distance spindle nose to tailstock origin: 639 mm
- X1/X2 axis stroke (effective travel): 335/289 mm / Rapid traverse X: 30 m/min
- Z1/Z2 axis stroke: 560/494 mm / Rapid traverse Z: 30 m/min
- Standard fully enclosed cabin with automatic door opening – manual or automatic loading possible
Main Spindle
- Spindle interface according to DIN 55026: Size A6
- Max. spindle speed: 4,500 rpm
- Spindle power at 100%/40% duty cycle: 23/18 kW
- Spindle torque at 100%/40% duty cycle: 146/115 Nm
Tailstock
- Interface: MK4
- Clamping force: 850 daN
- Clamping stroke: 200 mm
Turret Configuration X1/Z1: Tool Turret with Driven Tools
- Tool mounts cylindrical shank to DIN 69880: 8 × VDI 40
- Max. tool length: 130 mm
- Number of stations: 8
- Max. turret speed: 4,500 rpm
- Max. torque at 10% duty cycle: 27 Nm; at 100%: 14 Nm
Turret Configuration X2/Z2: Tool Holder with Driven Tools
- X-HOT unit for polygon turning, max. eccentricity (stroke): 8 mm
- X-HOT tool holder interface: HSK 32S
Electrical Equipment
- Operating voltage: 400 V, 100 A
- Connected load: 37 kVA
Dimensions
- Overall dimensions: Length 3,000 mm (6,477 mm with chip conveyor), Width 3,000 mm, Height 3,650 mm
- Weight: 11,000 kg
Main Features and Capabilities:
- Vertical design: Optimum chip disposal, manual or automatic loading/unloading
- Control: Siemens 840D for NC1 and NC2
- High precision: Positioning accuracy X/Z axes ±0.002 mm (Heidenhain absolute linear scales)
- Powerful main spindle with wide speed range
- Driven tools expand application range to include drilling and milling
- Tool life monitoring
- Chip conveyor coolant: Knoll
- Coolant filtration unit up to 40 bar: Knoll FKA/1400
- Part detection system with low air pressure sensor
- AUTOMATION INFRASTRUCTURE FOR ROBOT INSTALLED
- Fully enclosed work area, work light included
- Documentation: Available electronically and as printed manual
Kedpjxwmf Ssfx Acusdw
Machine status:
In working condition.
