Crushers

Jaw crushers | stone crushers Jaw crushers | stone crushers

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

Jaw Crushers generally crushes 60 to 600 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons.

GENERAL SPECIFICATIONS AND FUTURES:

Dcedswx Imijpfx Acwon
-Belt-pulley drive system
-Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance
-Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel
-Adjustable jaw opening with hydraulic setting
-Utilizing toggle plates for safety purposes in case of overloading
-The surfaces which exposed to abrasion are coated with lining plates

TECHNICAL SPECIFICATIONS:

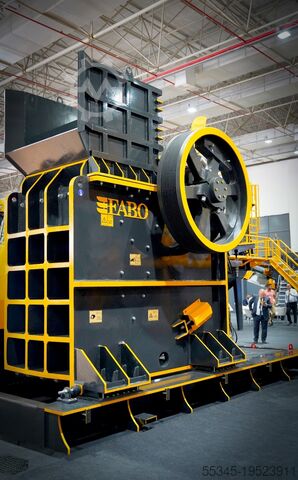

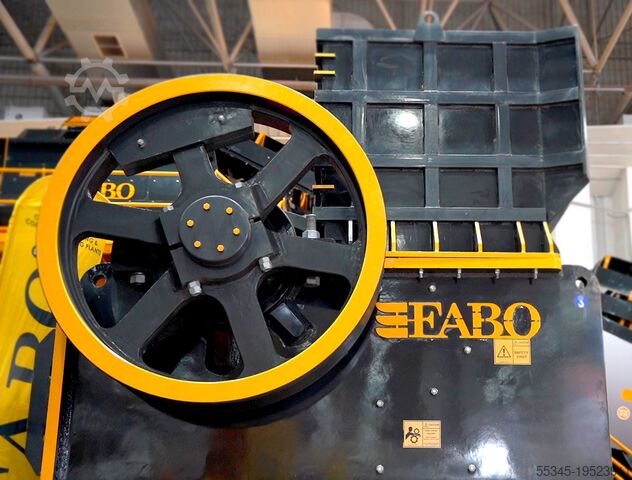

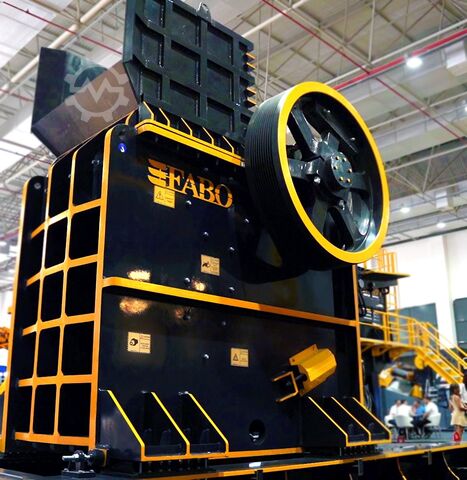

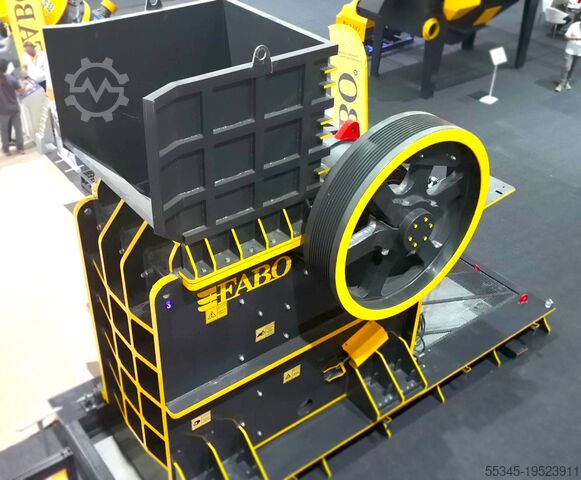

• Model: FABO CLK-130
• Type: Primary Jaw Crusher
• Inlet Dimensions: 1300 X 1100 mm
• Jaw Opening: 120-280 mm
• Max Feeding: 1000 mm
• Capacity: 320-600 Ton Per Hour
• Motor: Heavy duty GAMAK, 200 Kw Bearings: Heavy duty SKF-FAG
• Weight: 51000 kg
• Including motor and safety guards.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
