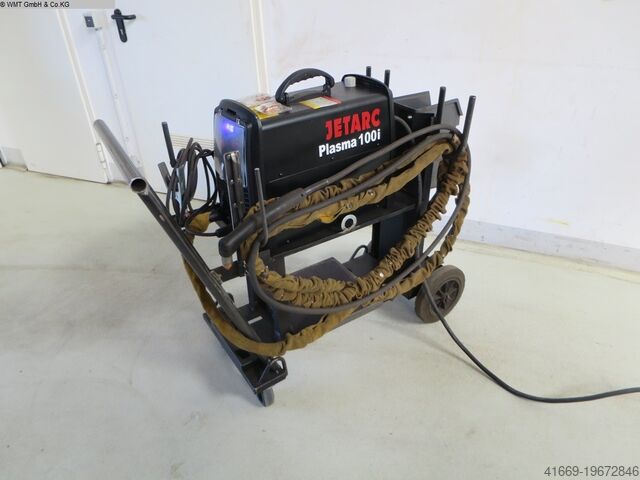

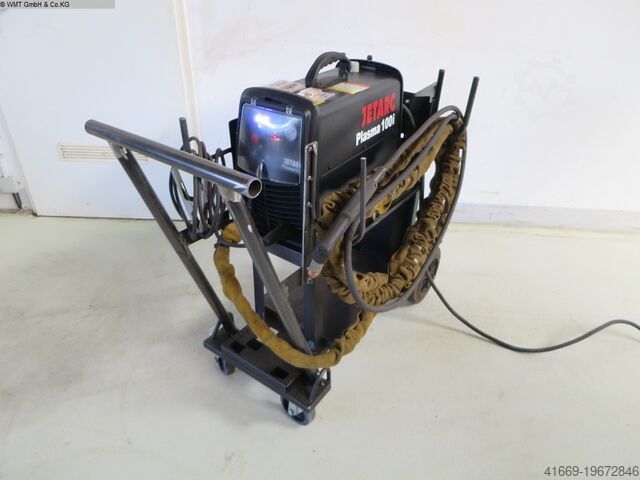

Plasma Cutting Device

JETARC Plasma 100i

Condition: used, Year of construction: 1971, Technical details: Fodpfeu Ngk Tox Acijpp grinding length: 700 mm workpiece height: 80 mm Table dimensions: 105 x 725 mm feed range: mechanisch total power requirement: 0,8 kW dimension machine xH: 0,7 x 1,3 x 1,4 m Application: Grinding of linear surfaces for shearing knives and div. tools. Grinding support: -Vertical adjustment travel 45mm hand crank. -speed 2840 rpm -rotate 20° right/left -swivel 40° back and forth table: -with stop bar 730mm -equipped with 2x clamps / 2x fences -grinding depth by manual adjustment 80mm -mechanical feed, adjustment travel approx. 0.3 mm/double stroke -swivel 5° - 25° via hand toggle -1x chucking groove centered accessories: Box with div. grinding wheels *

Condition: good (used), Year of construction: 1982, functionality: fully functional, Tool milling machine with 3D control, manual handwheels, and a universal table adjustable in three axes. Control: Deckel Dialog Control 4: 3D contouring control, including drilling and milling cycles Monitor, electronic handheld control panel Terminal for program input and output Technical specifications: Travel range X/Y/Z 300 x 220 x 400 mm Speed 31.5 - 3,150 rpm with 21 gear stages Feed rate 4-2,000 mm/min Rapid traverse 4 m/min Drive power 1.6-2.0 kW SK 40 tool holder Hydraulic tool clamping Universal milling table with digital display: Clamping area 600 mm x 320 mm Table load 180 kg C-axis rotation range 360° A-axis tilt range 15°/45° B-axis swivel range +/- 45° Vertical milling head: Fedpfjwid Spex Aciepp Manual quill stroke - horizontally 65 mm, vertically 60 mm Additional equipment: Manual machine handwheels with scale Direct travel measurement of the NC axes Cooling water system Special accessories: Approx. 33 tool holders (without tools) - see photo High-speed milling spindle Machine data: Machine weight approx. 1,380 kg Space requirement including accessories L approx. 2,940 mm, W approx. 1,900 mm, H approx. 1,960 mm Power supply: 380 V, 50 Hz, 12 kVA The machine is in good, fully functional condition. It can be inspected with power and chippings by appointment.

Condition: new, table diameter 700 mm table load 0,5 t swivelling range 0 - 135 Grad turning speeds 0,2 - 3 U/min height adjustment 400 - 900 mm boring diameter 100 mm welding current max. 500 Ampere total power requirement 0,75 kW Fpjdpfxofv Azls Aciop including remote control and welding current transmission.

Condition: used, Year of construction: 2016, functionality: fully functional, type of input current: three-phase, Swift-Cut CNC Plasma Cutting Machine Type 1250 with zone-controlled extraction table Technical Specifications: - Cutting area for sheet sizes up to 1250 x 1250 mm - Maximum gantry clearance height: approx. 100 mm - Lowered guide rails for easy loading - Gantry park position enables easy loading of full sheets from above - Robust welded steel frame with polyester powder coating - Lightweight cutting head for high cutting performance and easy maintenance - Linear guides with smooth-running V-rollers - Powerful 4 Nm stepper motors - Drive system: Coupled hybrid stepper motors. Dual synchronized rack and pinion drive (Dual Drive) on Y-axis. - Digital Torch Height Control (DTHC) – fast response time for improved cut quality and extended torch consumable life - Direct Cut Control (DCC): Automatic software control of cutting current (amperage) and air pressure directly via the CNC user interface (fully compatible ONLY with Hypertherm Powermax torch & plasma power supply) - Hypertherm plasma system error messages are displayed directly on the Swift-Cut control screen - Collision protection: Magnetic torch breakaway system. Shuts down the system within a fraction of a second in the event of a collision to prevent torch damage. - Proximity sensors for reliable and robust switching operations - Down draft extraction table - Zoned extraction table for efficient fume extraction - Easily removable cutting supports - Freestanding operator’s console with PC and flat panel LCD monitor - Wireless keyboard and mouse Fpedpfx Asy Snwnocisp - Multiple emergency stop (E-stop) - USB and network connectivity Software: - Solid Edge CAD software - Swift-Cam 1 powered by Libellula; CAD/CAM software - Functions include conversion of any DXF files to Swift-Cut machine code - Manual nesting of parts and standard shapes - Pre-installed cutting tools and image library for consumable recognition - Part library with pre-made standard drawings - Swift-Cut CNC control software - Program simulation - Operating system: Windows 7 Included paid optional accessories: - Swift-Trace camera for capturing hand-drawn templates and converting them into DXF files - Swift-Marker unit – integrated pneumatic marking system. Automatic marking of text, bend lines, and center points - Hypertherm DuraMax plasma torch package Basic dimensions: Console: 650 x 550 mm Machine: 1900 x 1700 mm

Condition: used, Diskus Werke DSH 600/1000 Surface Grinding Machine This machine type is a machine with a motor-driven grinding spindle. The workpieces are clamped and ground using clamping devices adapted to the specific task. The devices are attached to the machine bed. The column carriage, on which the motor spindle is mounted, serves as a feed, dressing, and oscillating slide. Manufacturer: Diskus Type: DSH 600/1000 Operating voltage: 380 V Fjdpfohtyudex Acispp DC voltage: 24 V Control voltage: 220 V Rated power: 27 kW Rated current: 56 A Year of manufacture: 1964 Condition: used You can find more items – new and used – in our shop! International shipping costs available upon request!

Condition: used, Year of construction: 1973, Technical details: grinding length: 400 mm grinding width: 200 mm Fpedpfx Ajxu Dv Aociop workpiece height: 300 mm dimensions of grinding wheel: 275 - 315 mm magnetic plate size: 400 x 200 mm max. table load: 200 kg weight of the machine ca.: 1,6 t dimension machine xH: 1,55 x 1,45 x 2,20 m

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 2454320049, overall weight: 130 kg, total width: 660 mm, total length: 660 mm, total height: 980 mm, power: 1.5 kW (2.04 HP), input voltage: 230 V, cutting width (max.): 420 mm, Cardboard shredder for recycling cardboard and producing void fill material (cardboard mesh). Includes AL-KO extraction unit. Easy adjustment of the cardboard mesh width via a movable stop. Regardless of the width of the cardboard to be shredded, cardboard mesh of uniform width is always produced. Fpjdpfxsy Dqvdj Aciep

Condition: excellent (used), Buderus heating boiler SK635 / 555 kW Fpjdpfjyr Aidsx Acijp

Condition: excellent (used), Steel grinding machine REMA 2 speeds 1450–2900 Fpodpowv Smnofx Acisp

Condition: used, Year of construction: 2018, Used Machine Year of Manufacture: 2018 Special Feature: Machine with a gluing height of up to 100 mm! Condition: Factory-inspected by Lange Maschinenbau Features and Technical Specifications: - Machine table with 13 rollers for improved workpiece guidance - Edge feed, synchronized with the belt feed - Edge thickness adjustable via digital counter - Pneumatic roller separation with blade (for cutable edges) - Three pressure rollers - Belt feed: - 0.25 kW - Approx. 1,250 mm long Fodpszk Nmrsfx Aciopp - Approx. 6.0 m/min - 50 mm wide toothed belt with a thick, workpiece-protective rubber covering - Digital counter for height adjustment - Direct glue application to the workpiece: Leak-proof glue tank with glue supply from below and fast heat-up time after machine shutdown - Flush trimming unit: - for the front and rear edges of the workpiece - Automatic sensing of the workpiece - Pneumatic trimming with a blade for cut-ready edges - Flush milling unit - With vertical sensing and horizontal guidance - Reproducible adjustment via digital counters - 2 powerful 0.4 kW high-frequency motors - Continuously adjustable from 4,000 to 18,000 rpm - Milling cutter: 70 mm, Z4, radius 2 mm/15° - Central exhaust port: 100 mm - 2 chip extraction hoods with 60 mm hose - Automatic height adjustment of the upper router bit via the belt feed - Continuous workpiece support, approx. 1,800 mm long - Workpiece support rail, extendable by approx. 300 mm - Rotatable film plate: 800 mm - Workpiece width: min. approx. 80 mm - Workpiece thickness: 10–100 mm - Workpiece length: min. approx. 220 mm - Edge thickness: 0.4–2.0 mm - Roller cutting: max. 1.0 × 55 mm, 2 × 45 mm - Glue pot heating power: 2.7 kW - Heat-up time: approx. 10 minutes - Working height: approx. 880 mm - Electrical connection: 400 V, 50 Hz, 3-phase N - Total power consumption: 3.8 kW - Pneumatic connection: 6 bar Dimensions (without film tray): approx. 1800 x 700 x 1300 mm Weight: approx. 260 kg
