Planer-Type Milling M/C - Double Column

JOBS LinX6

x-travel 2200 mm
y-travel 3200 mm
z-travel 1250 mm
Control FIDIA C20
c-axis +/- 200 °
milling-head swivable +/- +90 °
milling-head swivable +/- -100 °
feeds X-axis 50 m/min
feeds Y-axis 50 m/min
feeds Z-axis 50 m/min
tool taper HSK A63
tool change unit 16 Pos.
spindle turning speed range 18000 U/min
distance between columns 4060 mm
dist. milling spindle - table surface 1796 mm
connected load 238 kVA
weight of the machine ca. 45 t
dimensions of the machine ca. 9 x 7 x 5 m
This JOBS LinX6 is in very good condition and can be viewed under power by
arrangement with the seller.


Description: Jobs LinX6
Type: 5-axis milling machine with movable gantry and fixed table

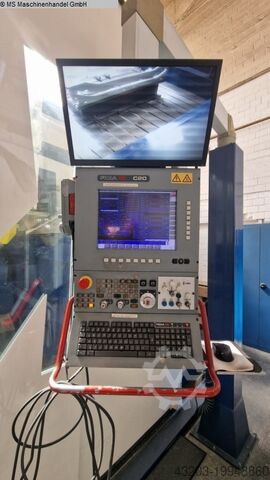

Control: FIDIA C20
Year of manufacture: 2001
Travel X: 2200 mm
Y travel: 3200 mm
Z travel: 1250 mm
A-axis travel: +90° / -100°
C-axis travel: +200° / -200°
Max. feed rate in X/Y/Z: 50 m/min
Table clamping surface: 4000 x 2500 mm
Bedpfxsxa Hl Ro Afpslf
Clearance between columns: 4060 mm
Clearance height between table and portal: 1807 mm
Clearance height between table and spindle nose: 1796 mm
Milling head: T2K D.01.06
Tool holder: HSK A63
Tool changer: 16-fold
Spindle power: S1 from 6800 rpm 40KW
Spindle speed: 250 - 18000 rpm
Total connected load: 238 kVA

Special equipment:
- Siemens linear motors in all axes
- JIMS / preparation for semi-automatic motor spindle change
- Replacement spindle as spare part
- External coolant supply / 1000L tank
- Minimum quantity coolant dosing
- Scraper conveyor

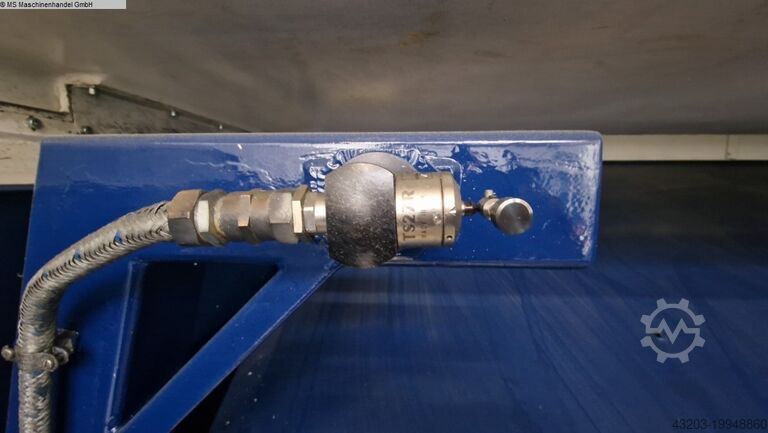

- Renishaw TS27 tool measuring system
- Ethernet connection
- Manual control module

Other:
Complete documentation available
Machine weight: approx. 45 tonnes
Space requirements: 8.7 m (width) x 6.7 m (depth) x 5.1 m (height)
