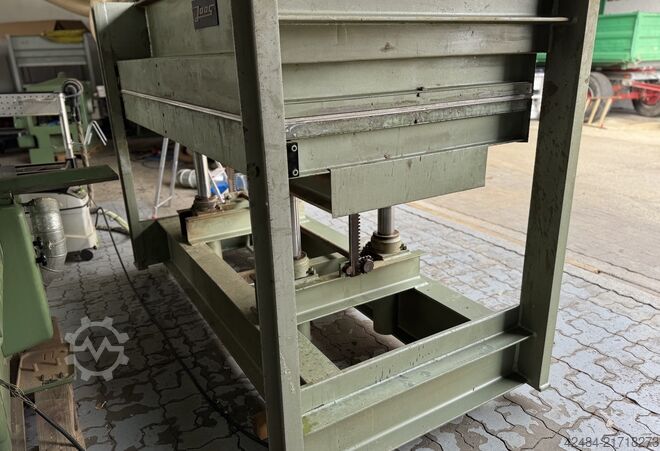

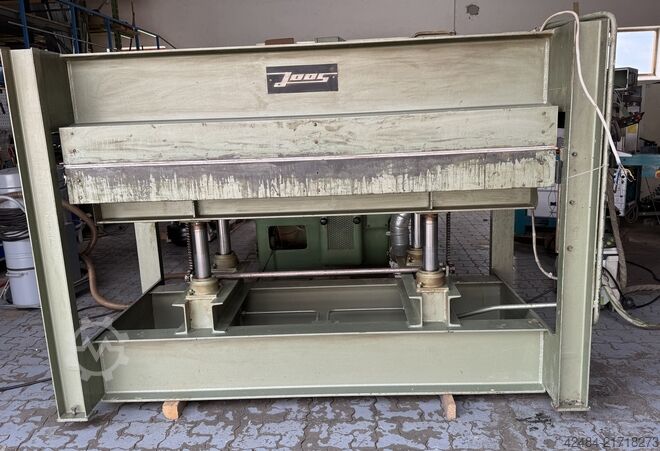

Veneer press

JOOS

Condition: good (used), Year of construction: 1975, Veneer press - 3300 x 1350 mm - External dimensions: 4000 x 1650 x 2450 mm - Year of manufacture: 1975 - Approx. 5500 kg Cpjdpfx Adsx Akuzevju - Electrically heated platen, no dents - HP 120 - Press area height: 400 mm - 6 cylinders - Rack and pinion guide

Condition: used, Year of construction: 1991, Pressing area 1350 x 2550 mmTotal pressing force 900 kN (=90 MP)4 cylinders, 90 mm diameter x 400 mm stroke and press chamber height2 electro-combi heating plates 2550 x 1350 mm, gold anodizedIncl. Joos ABS safety systemElectronic temperature control R 3.1CE version Cpjdpfxoyf Eu Aj Advju Storage location: Supplier

Condition: used, Year of construction: 1978, Max. pressing length: 2500 mm, max. pressing width: 1250 mm, total pressing force: 80 t, specific pressing pressure: 2.5 kg/cm², press opening height: 400 mm, heating plate material: gold-anodized, operation: push-button control, swivel switch: yes, number of ram cylinders: 4 pcs., safety treadle strip: yes, weight approx.: 3500 kg, dimensions: 2900 x 1420 x 1920 mm, total connected load: 17.5 kW. Location: Nattheim Cedpfx Aeyffrbedvjpu

Condition: excellent (used), Year of construction: 2008, For sale: Hydraulic through-feed press JOOS DLP 240/OK Machine type: Hydraulic through-feed press with automatic feeding and unloading of elements. Codjyc Eukspfx Advspu Application: Designed for coating flat panel materials of uniform thickness using coating material under elevated temperature. Basic data: Manufacturer: JOOS Model: DLP 240/OK Year of manufacture: 2008 Operating voltage: 400 V / 50 Hz Power consumption: 55.5 kW Hydraulic cylinders: 8 × 125 mm + 2 × 40 mm Operating pressure: 245 bar Pressing surface: 4200 × 1400 mm (L × W) Total pressing force: 2400 kN Condition: very good Documentation: complete Important note: The machine does NOT have a control program. TAG: hydraulic press, through-feed press, industrial press, coating press, panel processing machine, production line equipment, industrial machinery, JOOS, Siempelkamp, Orma, Italpresse, Dieffenbacher, Bürkle, Langzauner

Condition: excellent (used), Shelf length: 250 cm Width: 130 cm Cpjdpfx Aoxgnp Dodveu Four actuators

Condition: excellent (used), Catalogue number 7740 TECHNICAL SPECIFICATIONS - heating plate dimensions: 3000x1350 mm - number of loads: 1 - electrically heated shelf - clearance: 340 mm - number of cylinders: 6 - cylinder diameter: 80 mm - total power: 20.7 kW - pump motor: 1.1 kW - dimensions (L/W/H): 3570x1600x2200 mm - weight: approx. 3500 kg ADVANTAGES – made in Germany – electrically heated shelves – unpainted – in impeccable condition – used press Net price: 48,900 PLN Net price: 11,650 EUR at an exchange rate of 4.2 EUR Cpjdjx S Ebdepfx Adveu (Prices may vary with significant fluctuations)

Condition: used, Year of construction: 2024, Version: Joos A.B.S. safety system to protect the heating plates in case of incorrect loading or parts left behind. The press is open on all sides, features a robust all-steel construction, and is protected against overload. The maintenance-free hydraulic system is integrated into the oil tank. Step-less pressure adjustment is performed according to a clear pressure diagram. Once the set pressure is reached, the system switches off automatically. Constant pressure is maintained throughout the entire pressing process. The rack-and-pinion guide ensures stable parallel travel of the pressing plates. The press is optimally suited for laminating flat surfaces using adhesives, provided the corresponding technical requirements are met. Technical Data: - Max. pressing force: 1200 kN - Adjustment range: 10 – 100% - Total pressing area: 3100 x 1350 mm - Specific pressure at full capacity: 3.0 daN/cm² (kg/cm²) - 6 cylinders, 80 mm diameter, 400 mm stroke - Hydraulic working pressure: 398 bar - Press room height: 400 mm - Color: Light grey, RAL 7035 Hydraulics: The following components are integrated into the press's hydraulic system: - 1 oil-hydraulic two-stage high-pressure pump - 1 three-phase motor, 2.2 kW - 1 automatic pressure switch - 1 change-over valve - 1 pressure diagram The hydraulic unit is built into the lower section of the press. Controls: Automatic pressure control via electronic controller with setpoint and actual value display. Operation is performed via a clear control panel. The control cabinet is fully integrated lengthwise in the upper section of the press. Operating voltage: 400 V, 50 Hz, 3-phase. ELECTRIC HEATING PLATE 3100 x 1350, GOLD ANODIZED Cjdpfx Aexplbcodvopu One lower and one upper electric heating plate, 3100 x 1350 mm. The surfaces are anodized, making them extremely hard, scratch- and abrasion-resistant. High-temperature insulation between the heating plate and the press table. Maximum operating temperature: 120°C. (1 section / 2 heating plates.) TEMPERATURE CONTROL Temperature control R 1.1; each heating plate features an electronic temperature controller and a safety temperature limiter around the edge of the heating plate. SWIVEL PANEL OPERATION Operation is via an ergonomic swivel panel control. Location: Rieth

Condition: used, Year of construction: 1995, Used Machine Year of manufacture: 1995 Features and technical data: - Total pressing force: 70 t - Press area: 2500x1300 mm - With gold anodized plates in good condition - Press chamber height: 400 mm - 4 cylinders, diameter 80 mm - ABS safety system, can be deactivated - Emergency cord - Extendable support, left side - Swivel button operation - Hydraulic unit at the bottom - Cleaned and assembled/pressed by ELKOM staff Dimensions: 2900 x 1480 x 2050 mm Weight: 2950 kg Availability: short-term Storage location: 63934 Röllbach Csdpfjx Enr Sjx Advspu

Condition: good (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 1855680, pressing force: 80 t, input frequency: 50 Hz, power: 4 kW (5.44 HP), table length: 1,400 mm, table width: 800 mm, operating pressure: 270 bar, Manufacturer: Joos Model: HP-S 80 Year of Manufacture: 2004 Pressing Power: 800 kN Three-Piston Suitable for woodworking and industrial applications Well-maintained and in good working condition Previously used in a company setting, reliable and durable. Despite the dust, this Hydraulic Press continues to deliver reliable performance. Cpodpfx Ajrp D Easdveu Contact us today to arrange a viewing or to inquire further information.

Condition: used, Year of construction: 1976, pressing area: 2500mm x 1250mm Cjdpfx Adex Edl Esvepu opening: 360mm heating plate top: elektric heating plate bottom: defective plate surface: ALU - anodized pressure: 90t number of cylinder: 4 electricity: ca. 33A machine length: 3000 mm machine width: 1500mm weight: 4000kg
