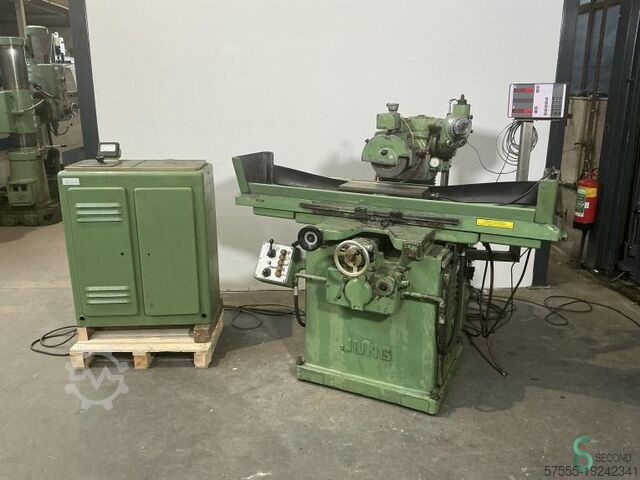

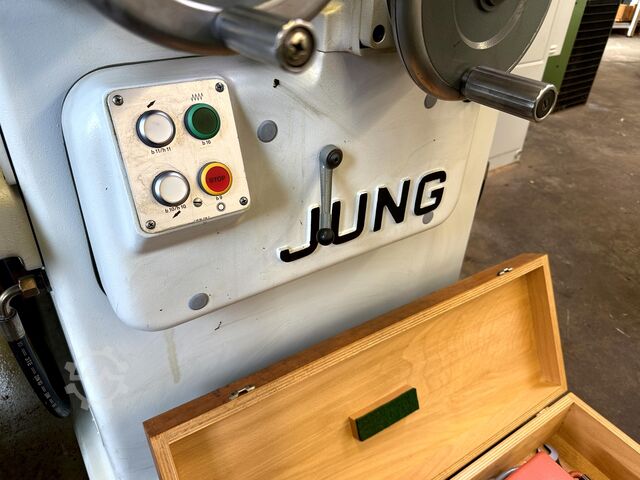

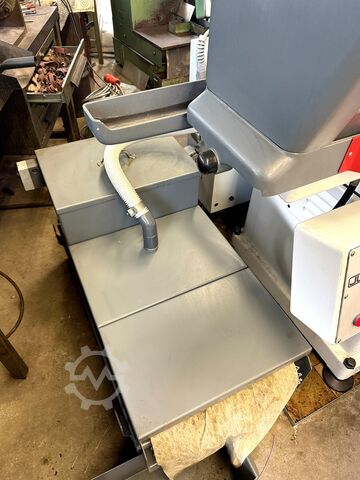

FLAT GRINDING MACHINE

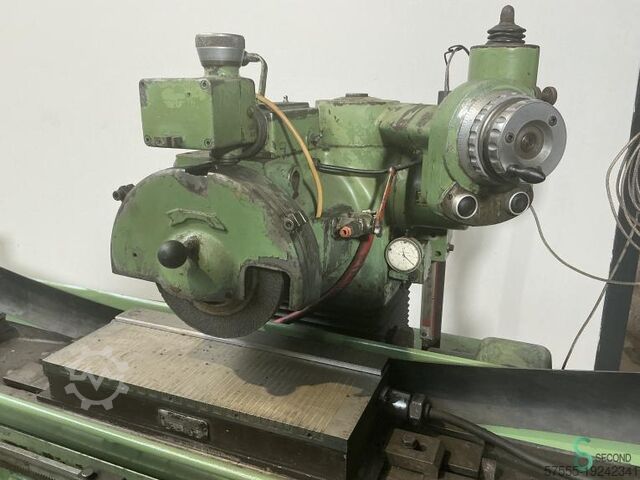

Jung HF-50-RD

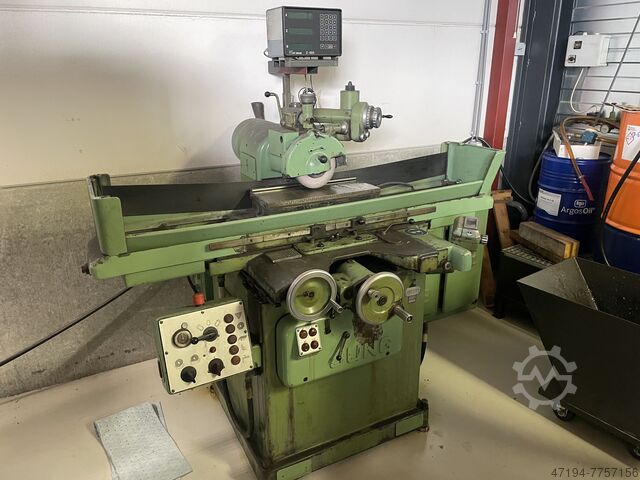

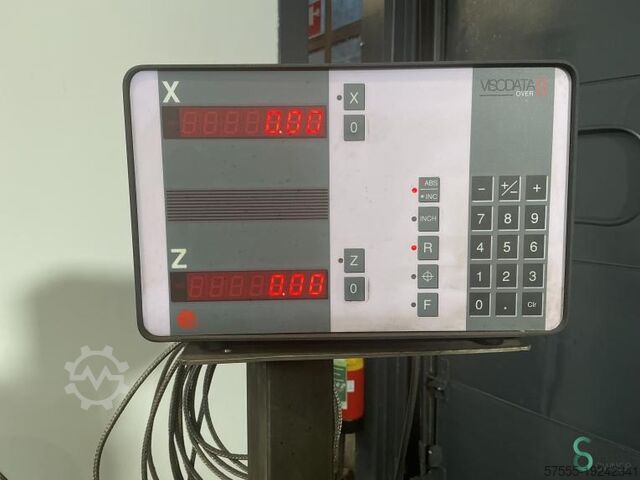

Condition: used, total height: 1,700 mm, total length: 2,300 mm, total width: 1,500 mm, Empty weight: 2.000 kg Bwedpfswningox Abmow - Documentation available: No - Serial number: OF50-158 - Motor power: 2.0kW - Travel Z: 400mm - Digital: Yes - Model: kslijper - Travel X: 500mm - Travel Y: 200mm - Table length: 720mm - Max. spindle speed: 4000rpm - Type digital: VisoData - Magnet size: 400mm - Table width: 200mm - Min. spindle speed: 1000rpm - Transport dimensions: 2300mm x 1500mm x 1700mm (l x w x h) - Transport weight [kg]: 2000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

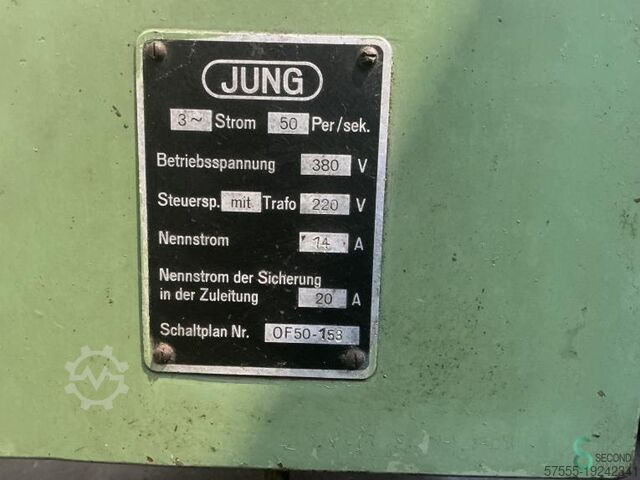

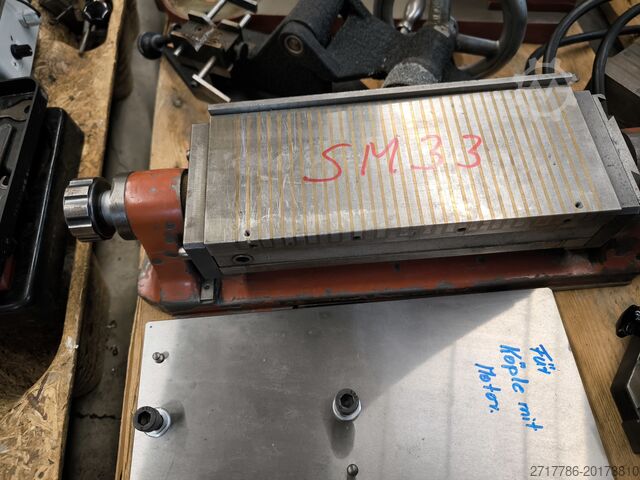

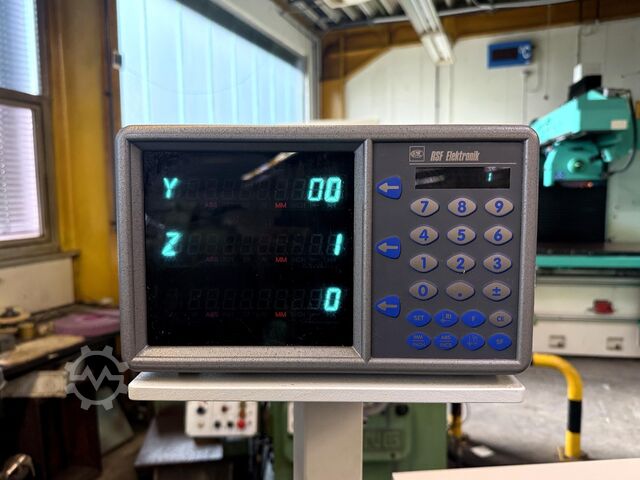

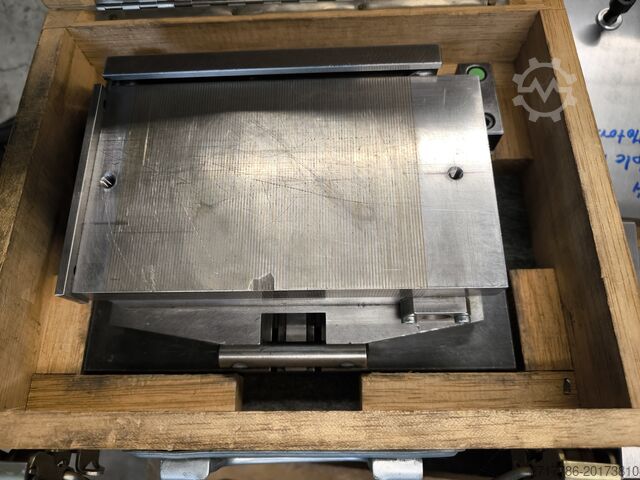

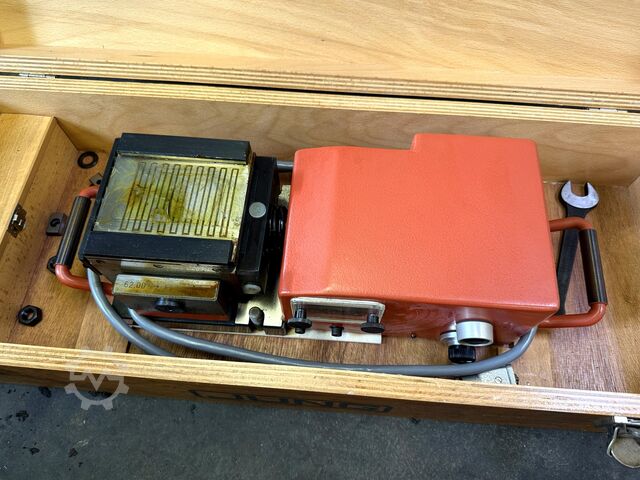

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 6190, grinding wheel diameter: 150 mm, table length: 720 mm, table width: 200 mm, overall weight: 2,000 kg, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned due to business closure. Placing a bid obligates you to collect the machine on schedule between 26.01.2026 and 29.01.2026! Bsdpfx Aoxqg E Sobmeww TECHNICAL DETAILS Table dimensions: 720 x 200 mm Grinding wheel diameter: 150 mm MACHINE DETAILS Electrical data Operating voltage: 380 V Frequency: 50 Hz Rated current: 15 A Control voltage: 220 V Dimensions & Weight Dimensions (L x W x H): 3,500 x 2,000 x 1,700 mm Weight: 2,000 kg EQUIPMENT Magnetic chuck (450 x 200 mm) RSF three-axis digital readout BRAILLON magnetizing and demagnetizing station JUNG adjustable magnetic chuck (120 x 90 mm)

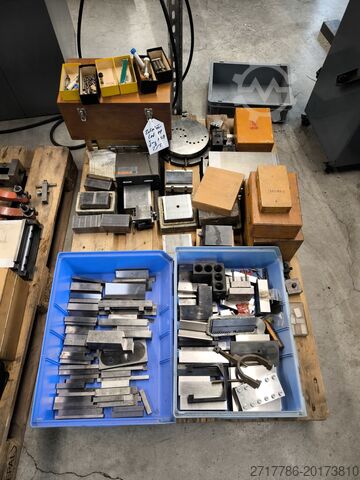

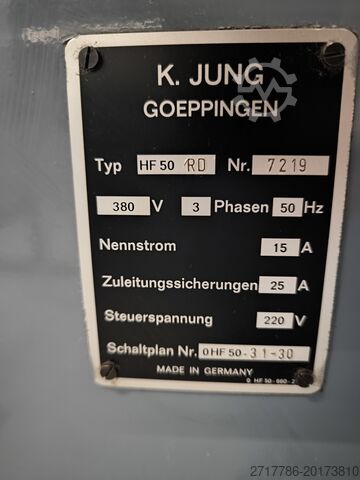

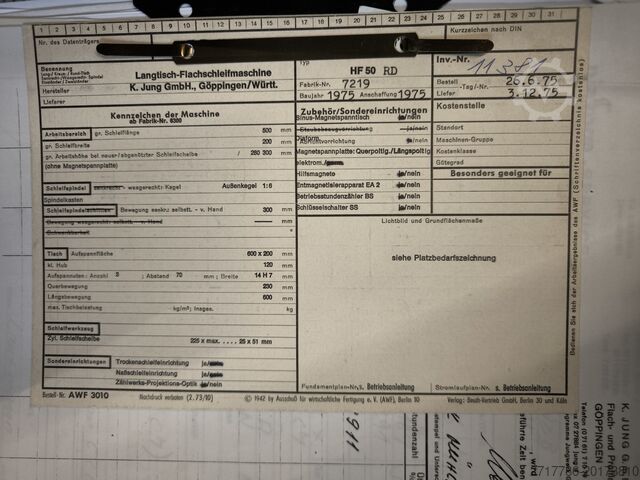

Condition: good (used), functionality: fully functional, grinding length: 500 mm, grinding width: 200 mm, ★ Exceptionally well-maintained machine from the liquidation of a renowned toolmaker – be sure to check out our other listings as well ★ ★ JUNG HF 50 RD Surface Grinding Machine with TOP Accessories (Partially Overhauled) ★ Year of manufacture: 1975 Machine number: 7219 Condition: Not tested Delivery terms: Free loaded on truck – unpacked Location: 73347 Mühlhausen Availability: Early December 2025 – The items must be collected by the buyer during week 49/2025 without fail. The exact date will be specified by us. Earlier availability may be possible by arrangement. Payment terms: Advance payment – by bank transfer Internal ref. no.: JO11 Bwsdjxiy Uwepfx Abmow Under power for inspection: YES Important notice: Partial overhaul carried out by Jung in 2015 – works performed: Machine inspection Dismantling Cleaning Table slideways hand-scraped Replacement of spare and wear parts Regrinding of guideways Renewal of control sensors, operating elements, and lubrication lines (cross-slide/table) Hydraulic unit serviced Please refer to the attached photo Technical specifications: Max. grinding length: 500 mm Max. grinding width: 200 mm Max. working height with new grinding wheel: 280 mm Table clamping surface: 600 x 200 mm Longitudinal travel: 600 mm Cross travel: 230 mm Grinding wheel dimensions: 225 x 25 x 51 mm Digital readout Dust extraction system Coolant system Magnetic chuck Extensive accessories / grinding wheels / spare parts as shown in the photos Scope of delivery: Available manuals Extensive accessories / grinding wheels / spare parts as shown in the photos Dimensions & weights Installation dimensions (L x W x H) approx.: 3000 x 2000 x 1800 mm + various pallets Weight approx.: 1800 kg If you have any questions or would like to arrange a viewing, please don't hesitate to contact us. ⚠️ Be sure to check out our other listings as well ⚠️ Additional notes: We expressly recommend collection via direct shipment (freight forwarding) The goods are sold without any warranty Technical specifications are provided without guarantee Subject to prior sale ❗ Sale of goods exclusively to business customers ❗

Condition: used, grinding length 500 mm Bwodpfx Ajwzytyobmjw grinding width 200 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!

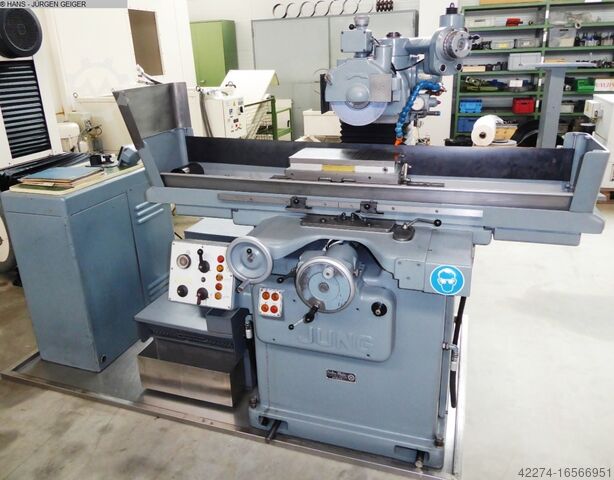

Condition: used, Year of construction: 1969, grinding length 500 mm grinding width 200 mm workpiece height 250 mm total power requirement 5,5 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m J U N G Horizontal High Precision Surface- and Profile Grinding Machine Model HF 50 RD, Year 1969, partially reconditioned in 2021 Serial-no. 4082 _____ Bwsdpfx Abet Hwzijmsw Grinding length max. 500 mm Grinding width max. 200 mm Table size 600 x 200 mm Grinding height under grinding wheel approx. 250 mm Table cross travel approx.. 230 mm Table slide cross stroke 0,2 - 8 mm/table stroke Table longitudinal travel max.. 550 mm Table speed longitudinal 1 – 20 m/min. Measurement of grinding wheel 225 x 25 x 51 mm Grinding wheel speed infinitely adjustable 1.000 - 4.500 rpm Vertical feed 0.001 - 0.01 mm/stroke Grinding spindle drive infinitely variable load 0,4 – 1,5 kW Total electrical load 5,5 kW - 380 V – 50 cycles Weight approx. 2.500 kg Accessories/Special Features: • Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc. • Set up switches for plunge-in or normal pendular-grinding with automatic infeed • Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)with automatic stop of infeed by contact-Gauge. • motorized rapid feed of grinding head up/down • Manual straight grinding wheel-dressing device mounted above the grinding wheel • Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm • separate converter cabinet for infinitely variable speed regulation and with respective display of cutting speed in m/sec. • Wet grinding facility including coolant tank and bandfilter cleaning device, separate standing, • Including 3 separate flanges, some grinding wheels, service tools, etc. Condition : good – can be inspected here under power, partially reconditioned by a JUNG Specialist (table pistons, lubrication, infeed system, Dresser, covers, etc.) Delivery : ex stock – as inspected Payment : net– after completion of contract

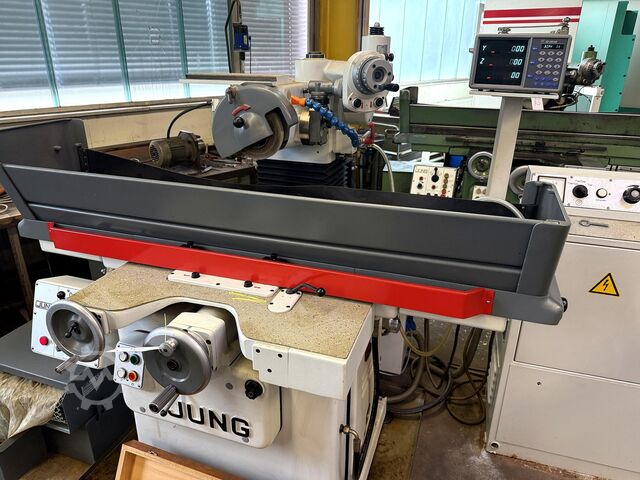

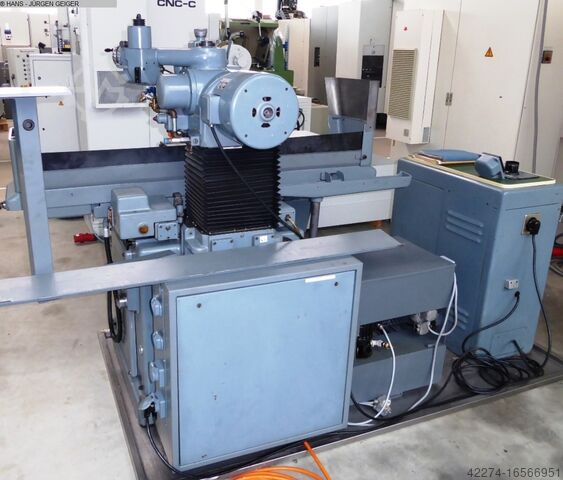

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, grinding length: 500 mm, grinding width: 200 mm, AVAILABLE IMMEDIATELY FROM STOCK! Please contact us. Machine can be inspected under power at any time Grinding area: Bwjdpjb A D Nlofx Abmew 500 x 200 x 400 mm (400mm between grinding spindle center and table) New electrics and control: - completely new electrics, cabling and conversion to 24V control voltage - 5.5 KW Siemens grinding spindle motor, so no generator cabinet is required, stepless speed control - Sensor control of the X and Z axis switching points - Cross table control via Siemens frequency converter and PLC - 2-axis digital measuring system - Programmable limit switch for the vertical/Y axis - Conversion of the cross table operation to eye level - Machine control in the usual position, with individual shutdown function Condition of the machine: - Geometrically overhauled - Grinding spindle concentricity within 3µm - Completely new electrics VDE compliant - 5.5 kW Grinding spindle drive with new control, no more shelf cabinet - professional repainting in RAL 7035 / 7012 - CE declaration of conformity Equipment: - Magnetic clamping plate - 24V magnetic control with holding force control and demagnetization - Side dresser - Grinding wheel flange with disc

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 6471, grinding wheel diameter: 200 mm, overall weight: 1,000 kg, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned due to business closure. Placing a bid obligates timely collection between 26/01/2026 and 29/01/2026! TECHNICAL DETAILS Magnet dimensions: 450 x 220 mm Grinding wheel diameter: 200 mm MACHINE DETAILS Bwjdpfx Absxqf E Rsmjw Electrical data Operating voltage: 380 V Frequency: 50 Hz Rated current: 15 A Dimensions & weight Dimensions (L x W x H): 3,000 x 1,500 x 1,700 mm Weight: 1,000 kg EQUIPMENT DIAFORM dressing device

Condition: used, Year of construction: 1977, functionality: fully functional, machine/vehicle number: 7570, 1 used: JUNG Surface and Profile Grinding Machine • Model: HF 50-R(D) • Machine No.: 7570 • Year of manufacture: approx. 1977, overhauled 06-1998 • Grinding area: 500 x 200 mm • Grinding wheel: max. 250 x 25 x 51 mm EQUIPMENT: Electro-magnetic chuck 450 x 180 mm 1 straight dresser mounted on the side of the spindle head 1 grinding wheel holder with wheel 1 universal paper band filter 1 frequency converter for speed control Leveling feet Bwodpfsw R Tqpsx Abmew
