Flat grinding machine

Jung

Year of construction: 2015, condition: used, workpiece diameter 300 mm workpiece weight 999 kg workpiece height 145 mm Features: -Digital display vertical axis -Automatic feed -Programmable automatic end stop -Grinding spindle drive with infinitely variable electronic speed control -Infinitely variable cross feed and table rotation -24V magnetic clamping plate 300 mm -Various occupational safety devices, e.g. protective cover monitoring, Ndjdpfsxflclsx Agrsb operating status display via traffic light -Lubricating oil level monitoring -The machine was completely overhauled in 2015, at which time the entire electrical system was replaced with PLC control and 24V control voltage -Paper belt filter system specially designed for this machine The following work has now been carried out: -Replacement of bellows and belts -New bearings for grinding spindle -Grinding carriage bed and rotary table bed scraped by hand to restore better and more precise running characteristics -Grinding carriage and cross table lifted from machine body and all tracks cleaned, lubrication checked -Various wear parts, such as rubber caps and switching elements, replaced -Detailed functional check -Modernisation of feed arm -Paint touch-up work, machine colour: light grey RAL 7035 and RAL 7012

Year of construction: 1994, condition: used, workpiece diameter 350 mm workpiece weight 99999 kg workpiece height 240 mm total power requirement 7,5 kW weight of the machine ca. 2 t Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespart. Der Abrichtbetrag wird automatisch kompensiert. Automatische Antasteinrichtung AT-R: bietet die Möglichkeit, mit der Schleifscheibe das Werkstück schnell und automatisch anzufahren. CNC-Steuerung mit höchstem Programmierkomfort Unterschiedliche Schleifprogramme für -Pendelschleifen -Kurzhubschleifen -Einstechschleifen -jeweils eine oder mehrere Flächen in gleicher oder unterschiedlicher Höhe Ins Schleifprogramm integrierte Abrichtzyklen -Tischabrichten mit Einzeldiamant -Automatisch Geradabrichten Nsdpjxbtl Tjfx Agrodb -CD-Abrichten mit AF65 Minizyklen: -automatisches Antasten an das Werkstück -Positionieren einzelner Achsen -Abrichten Einsatzgebiet: Hochgenaue Planschleifarbeiten in der Mittel- und Großserienproduktion bzw. Einzelteilfertigung in zentrischer Aufspannung

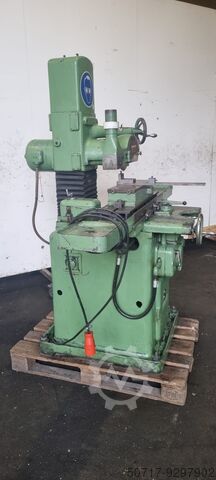

Condition: good (used), grinding length: 400 mm, grinding width: 150 mm, Table length 400 mm Table width 150 mm Grinding length 400 mm Grinding width 150 mm Design: hydraulic Max. distance from table to spindle center line 350 mm Table speeds: continuously variable from 0.00 m/min up to 0.0 m/min Automatic vertical feed: from 0.000 mm up to 0.013 mm Ndodpovga Suefx Agrob Diameter of grinding wheel 00 mm Width of the grinding wheel 16 mm Grinding wheel speeds: from 800 rpm Voltage 50 Hz 3x 380 Volt Grinding spindle motor 0.30 HP Machine weight approximately 900 kg Overall dimensions of the machine: Length 1300 mm Width 1000 mm Height 1500 mm

Condition: used, total height: 3,800 mm, Technical data for the pallet racking upright: Racking system: Jung Heinrich Type: Esmena Included in the scope of delivery: 01x Pallet racking upright, used Material color: RAL 5019 blue Frame profile: MX610 Profile dimensions: 76.2 x 63.2 x 1.8 mm Includes cross and diagonal braces, Base plates Ndsdpsz A Eikefx Agrsb The uprights are pre-assembled (bolted frame) Height: 3,800 mm Depth: 1,050 mm General information about the item: This item is offered for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately depending on the delivery location or scope of delivery.

Condition: used, Technical data for the pallet racking upright: Racking system: Jung Heinrich Type: Esmena Included in the scope of delivery: 01x Pallet racking upright, used Material color: RAL 5019 blue Frame profile: MX610 Profile dimensions: 76.2 x 63.2 x 1.8 mm Ndodpez A Egvsfx Agreb Includes cross and diagonal bracing, Base plates The uprights are pre-assembled (bolted framework) Height: 1,850 mm Depth: 1,050 mm General information about the item: This item is offered for collection only. Any additional transport or shipping of this item will incur extra costs, which can be requested separately depending on the delivery location and scope of delivery.

Condition: good (used), total height: 2,710 mm, Technical data for the pallet racking upright: Racking system: Jung Heinrich Type: Esmena Included in the scope of delivery: Ndjdpfx Agjz A Edherjb 01x Pallet racking upright, used Material color: green Frame profile: M94 Profile dimensions: 76.2 x 74.7 x 2.3 mm Includes horizontal and diagonal braces, Base plates The uprights are pre-assembled (bolted framework) Height: 2,710 mm Depth: 1,050 mm General information about the item: This item is offered for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately depending on the delivery location or scope of delivery.

Condition: good (used), clear span: 2,775 mm, total length: 17,350 mm, load per truss pair (max.): 1,023 kg, Technical data for the pallet racking system: Racking system: Jung Heinrich Type: Esmena Technical data for the installation: Number of racking rows: 1 Length per racking row: approx. 17,350 mm Number of bays per racking row: 6, each 2,775 mm Number of levels including the base level: 6 Technical data for the capacity: Pallet spaces per bay: 21 Pallet spaces per racking row: 126 Total pallet spaces: 126 Based on: Load unit: Euro pallet EN 13698-1 Dimensions: 1,200 x 800 x 150 mm Overall height incl. pallet: not specified Weight per pallet (max.): approx. 341 kg Included in the scope of supply: 07x Pallet racking uprights, used Material color: RAL 5019 blue Frame profile: MX630 Profile dimensions: 100 x 81.3 x 1.8 mm System hole pitch: 50 / 50 mm incl. cross and diagonal bracing, Base plates The uprights are pre-assembled (bolted truss) Height: 9,000 mm Depth: 1,100 mm 72x Pallet racking beams, used Material color: orange Box profile: 85 x 40 mm Beam type: GN85x41 Connector: 5 hooks Clear width: 2,775 mm Max. load per pair of beams: 1,023 kg, with evenly distributed load. Nodoz A D Dgspfx Agredb 144x Locking pins, used Material color: Sendzimir zinc-plated For securing the longitudinal members against unintentional lifting out. 28x Bolt anchors, new Manufacturer: Hilti Type: HST2 M12x105/10 Design: Carbon steel, zinc-plated Approved for: cracked concrete 14x Shims, used Design: completely zinc-plated For leveling the racking uprights that are installed on uneven ground 01x Load sign with information on bay and shelf loads, manufacturer and batch number Dimensions: 420 x 297 x 3 mm General information about the item: This item is offered for collection only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately depending on the delivery location or scope of delivery.

Condition: used, clear span: 2,705 mm, load per truss pair (max.): 2,400 kg, Technical specifications for the pallet racking crossbar: Racking system: Jung Heinrich Type: Esmena Included in the scope of delivery: 01x Pallet racking crossbar, used Material color: RAL1007 yellow Crossbar type: N140x40 SEG4 Box profile: 140 x 40 mm Clip: 4 hooks Clear width: 2,705 mm Maximum load per pair of crossbars: Nsdjz A Dyuepfx Agrsdb 2,400 kg with evenly distributed load 02x Locking pin, used Design: Fully galvanized For securing the longitudinal beams against unintentional lifting out General information about the item: This item is offered for collection only. Any additional transport or shipment of this item will incur extra costs, which can be requested separately depending on the delivery location or scope of delivery.

Condition: used, clear span: 2,760 mm, Technical data for the pallet racking crossbeam: Racking system: Jung Heinrich Type: Esmena Included in the scope of delivery: 01x Pallet racking crossbeam, used Material color: yellow Z-profile: approx. 120x55x2.30 mm Nodpfx Ajz A Dxdjgredb Crossbeam type: Z1|Z122|SEG4 Agraffe: 4 hooks Clear width: 2,760 mm 02x Locking pin, used Design: fully galvanized For securing the longitudinal beams against unintentional lifting out Note: The crossbeams are designed for supporting chipboard up to a thickness of 18 mm. General information about the item: This item is offered for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately depending on the delivery location or scope of delivery.

Condition: ready for operation (used), functionality: fully functional, Grinding length: 600 mm Grinding width: 250 mm Workpiece height: 450 mm Electromagnetic clamping table: 600 x 250 mm Grinding wheel diameter: 300 x 50 x 76.2 mm Spindle speed - stepless: 800 - 4200 rpm Njdpfjz Ayrvjx Agrsdb Total power requirement: 4 kW Machine weight: approx. 2.9 t
