Swivel spindle milling machine

KÖLLE F45

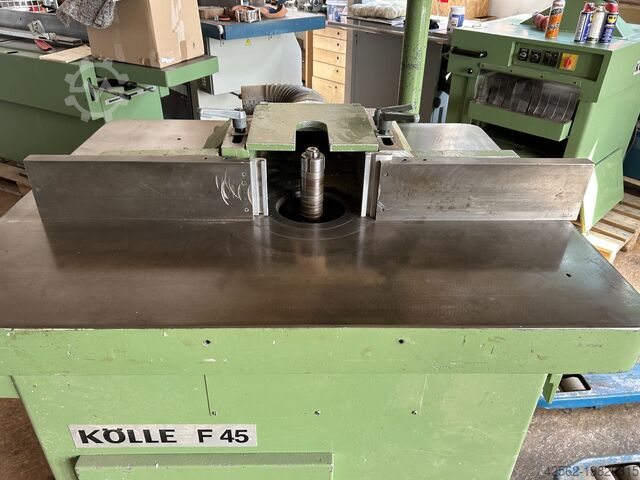

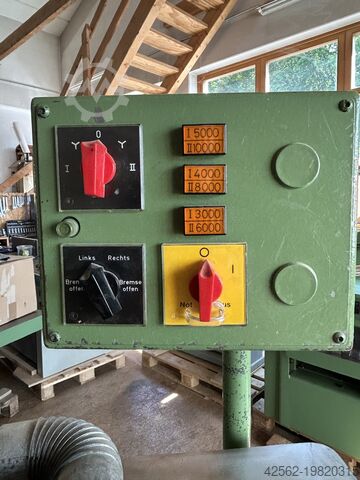

Condition: excellent (used), Year of construction: 1984, functionality: fully functional, Tilting Spindle Moulder KÖLLE F45 with Power Feed and Sliding Table Very good condition, the machine comes from a small model-making workshop and has only been used lightly Everything functions perfectly All bearings and guides are in excellent condition, the machine runs extremely smoothly Year of manufacture: 1984 The fence allows for depth adjustment of the fence jaws with fine adjustment and scale, making surfacing tasks—for example, when preparing a glue joint profile—possible. The entire fence can also be depth-adjusted with a handwheel and threaded spindle, allowing very precise and quick settings The fence is rotatable and can also be used with the sliding table With spindle locking lever The control panel is at eye level Chip evacuation is very effective with two 125 mm extraction ports Equipped with a 30 mm spindle, infinitely tiltable from -5 to 45°, adjusting via a handwheel with high-precision display; a 40 mm spindle can also be installed With forward and reverse rotation We personally deliver and demonstrate the machine throughout Germany for €220.00, giving you a risk-free purchase; shipping to Austria and the rest of the EU is available on request Large table opening, which can be reduced with various rings (enabling the use of cutters with very large diameters and safe machining even with small cutters) Spindle speeds: 3000, 4000, 5000, 6000, 8000, and 10000 rpm Spindle height adjustment also by handwheel, with scale With extendable auxiliary support, 3000 mm long Very robust and durable design—built for the heaviest milling operations, suitable for all routing work Optimal power transmission through V-belt drive Supplied with manual Includes 3-roller power feed unit STEFF, type 34 The feed unit features forward/reverse and 4 speeds, the feed rollers are individually mounted Machine table dimensions: 1200 mm wide and 1000 mm deep Ready for immediate use 380V, 4700 and 5700W thanks to 2 speeds Fodpfx Afsxbt Nfopegh Includes all necessary safety devices, motor brake, and emergency stop; the machine is BG-approved for woodworking, has GS test certificate For slotting, the machine features a sliding table that can be quickly detached; this table is also very heavy and robust, enabling precise and secure work Table size: 300 mm deep and 800 mm wide, with pneumatic workpiece clamp and 2300 mm long fence rail with scale, anti-splinter protection, and flip stop For slotting, the table can be positioned very close to the spindle, ensuring safety and vibration-free operation—the workpiece clamping is very close to the spindle, and the sliding table offers a large supporting surface The sliding table guide can be moved forward and backward as needed; working travel is approx. 1300 mm The sliding table runs on large, eccentrically mounted ball bearings for adjustable height and play, ensuring high precision Machine weight: approx. 1200 kg With motor protection switch against overload Professional machine, not DIY store quality Optimal, simple, fast, and safe operation

Condition: ready for operation (used), Year of construction: 1993, Kölle F45 Tilting Spindle Moulder Tiltable up to 45° Table size: 1200 x 1000 mm Table extensions to the right and left, including pull-out frame support Fgedpfew Uliljx Afpoh Motor power Right and left-hand rotation Pole-switchable spindle speeds: 3000/6000, 4000/8000, 5000/10000 rpm Aigner integral fence Electric spindle tilt with digital display Electric spindle height adjustment with digital display Spindle arbor diameter: 30 mm Maggi 3-roller power feed unit Year of manufacture: 1993 Unfortunately, the machine has been repainted by a dealer.

Condition: used, Year of construction: 1989, spindle tilting: Ja -5 bis 45° height adjustment: elektrisch tilting adjustment: elektrisch fence adjustment: manuell read out spindle height: - read out tilting: Scala read out fence: Scala spindle diameter: 30 mm speeds: 3000, 4500, 6000, 9000 Fedpfjuzkw Isx Afpjgh motor power: 7 kW motor brake: suction connection: 2 x 100mm machine length: 2500mm machine depth: 1400mm weight: 800kg

Condition: good (used), Year of construction: 1999, functionality: fully functional, Table size 2,200 x 830 mm Swivel range of the milling spindle -6 to +45 degrees Height adjustment of the milling spindle 125 mm Table opening adjustable for tool 70 mm - 230 mm Fgjdpevt Nv Aefx Afpjh Weight of the machine approx. 1,000 kg Milling motor 7.5 KW, speed frequency-controlled Motorized adjustment of the milling spindle height and swivel with LED display Integral stop manually adjustable with digital display Shows the distance of the rear stop jaw to the spindle center in absolute value KOELLE KK40 milling mandrel quick-change system Extendable table support

Condition: good (used), Used Kölle tilting spindle milling machine Model F 45 Table size 1070 x 1000 mm Table height 850 mm Motor 5.5 HP / 400 V Right/left rotation Speed 2800/4500/6000/10000 rpm Spindle Ø 30 + 40 mm, Fgedpev N Dcpefx Afpoh Spindle stroke 110 mm Electric height and tilt adjustment Swivel range -5 to +45 degrees Electric motor brake Aigner integral stop 650/650 mm Milling stop rotatable 360° Weight approx. 1050 kg
