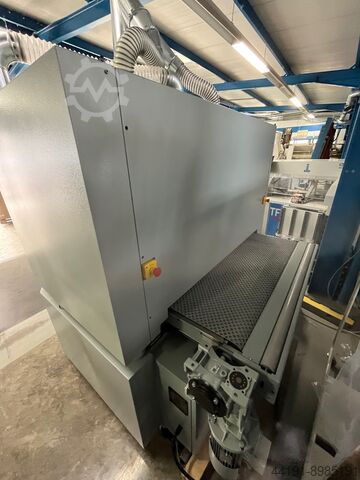

Wide-belt sander

Kündig Brilliant-1 1350-Cdl

New machine

Year of manufacture: 2023

MACHINESEEKER ENQUIRIES:

Please understand that we do not offer this new machine outside our designated sales area in Germany (Rhine-Main region and North Rhine-Westphalia). Such enquiries will not be answered.

Equipment and technical specifications:

In intermediate lacquer sanding (Cd-L) configuration

Robust, space-saving single wide-belt sander for demanding calibration and fine sanding tasks
• Constant working height due to upper part adjustment
• Working width: 1350 mm
• Over-belt sanding with combination unit
• Entire sanding unit inclinable up to 10°

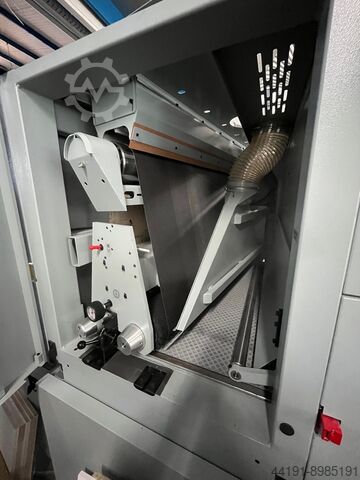

• Serrated rubber contact roller of proven hardness
• Infinitely adjustable contact roller height according to a grain scale
• Pneumatic lifting/lowering of the contact roller according to aggregate selection
• Sanding pad with quick-release sliding insert
• Parallel spring-loaded, ground steel pressure roller at the infeed
• Rubberized pressure roller at the outfeed
• Belt drive motor: 11 kW (1100 mm), 15 kW (1350 mm), 18.5 kW (1600 mm), 400 V/50 Hz,
soft start for low current draw at startup
• Electrically controlled, precisely adjustable height positioning with digital readout
• Belt tensioning, control, and oscillation: pneumatic, compressed air usage approx. 2 l/min
• Optimum safety thanks to automatic immediate stop with disc brake in case of belt break,
belt drift, pressure drop, or opening of belt access door

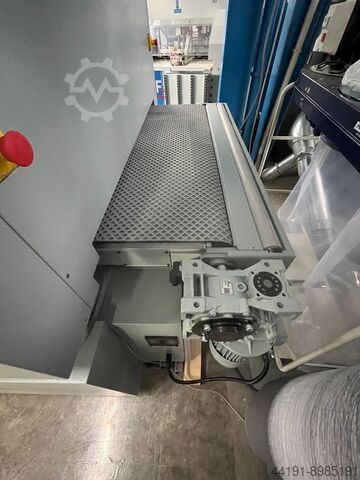

• Workpiece feed: 1.1 or 1.5 kW with fabric-reinforced rubber conveyor belt
• Vacuum device for worktable with small parts section, fan integrated in machine frame
• Complete electrical system with contactor control; automatic star-delta start of main motor, motor protection, and ammeter for chip removal monitoring
• Pass-through height: 200 mm
• Sanding belt dimensions: 1350 x 2000 mm
• Automatic thickness adjustment across the full working width
• Workpiece overthickness protection with immediate feed stop and automatic lifting of machine upper structure
• Stepless regulation of material removal
• Electronic feed regulation on the control panel, stepless from 3 – 15 m/min
• PLC control/programming with color touchscreen and TEACH-IN memory (one-touch based on sanding result, no input required)
Hsdpfx Afekwhxispjfn
• Pneumatic conveyor belt tracking control
• Workpiece support tables at infeed and outfeed
• ENORMATIC: Fully automated rapid setup and feed activation (very useful for large workpieces)
• eco* energy-saving mode
• Error diagnostics
• Order and operating hour counters
- Electronic segmented sanding pad, segment width 22 mm (swiveling special version)
- Steplessly adjustable sanding belt speed (with program memory)
- Ejector nozzles for sanding belt cleaning, demand-controlled, with additional extraction nozzle
- Additional sanding shoe insert for lacquer sanding

Including swiveling air knife, complete

Availability: short notice
Location: Flörsheim
