Wide belt sander E-shoe, lacquer

Kündig Brilliant1 1100 Cd-L

Calibration and fine sanding machine, Kundig Brilliant wide belt sander with electronic segmented pad, tiltable sanding unit, and lacquer sanding function.

A video of the machine in operation can be sent upon request.

Ideal sanding machine for interior fit-out companies, also suitable for intermediate lacquer sanding.

Single belt machine with combination unit and electronic segmented pressure beam.
Edge segments can be switched on and off.
Segment width of the pressure beam: 22 mm (ideal for intermediate lacquer sanding).
Pneumatically adjustable calibration roller—grooved, rubber-coated roller with grit compensation.
Drive motor: 11 kW.
Infinitely variable cutting speed: 3 - 15 m/s via frequency inverter.
Feed belt speed continuously adjustable from approx. 3 to 15 m/min.
Workpiece-controlled belt cleaning air blast unit.
Constant table height of approx. 950 mm due to movable machine top—enabling integration into sanding lines.
Feed belt still offers excellent traction and is in very good condition.

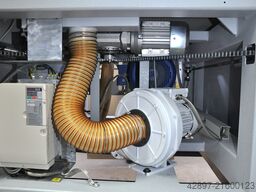

Vacuum conveyor with adjustable vacuum blower for secure holding of even small parts.
Maximum sanding width: approx. 1100 mm.
Workpiece height: approx. 3.5 to 200 mm.
Abrasive belt dimensions: 1120 x 2000 mm.
Infeed and outfeed roller tables.
Hood interlock.
Extraction connection: 1 x 180 mm, 1 x 125 mm.

Terminal control with 45 programmable sanding programs for automatic machine operation. Parameters: belt speed, feed speed, workpiece height, belt cleaning nozzle, vacuum blower, calibration roller adjustment, and segmented pad parameters.

Thickness measuring system with adjustable chip removal and Enormatic with automatic thickness setting via feed activation—eliminating the need for constant caliper measurements.

Programs for various sanding tasks can be stored and selected via smartselect.

CE mark
Operating manual
Two sanding cassettes included
The four bellows have been renewed
Without the illustrated connection cable
Original paintwork, only minor touch-ups
Very good condition, from a small company
Machine has approx. 1,395 operating hours, about 2 hours per week

Dimensions: approx. 1900 x 1650 x 2150 mm (LxWxH)
Weight: approx. 2,300 kg

Gjdpfxeyxg N Nj Af Eoir
Includes large mobile storage table at belt conveyor height for sanding belt storage
Table size: approx. 1520 x 1360 x 950 mm
Includes various sanding belts from K80 to K400

The machine can be demonstrated by appointment at our premises. We only offer machines ready for demonstration in our warehouse—see "other offers from this supplier".
