Pellet press

Kahl C39 1000

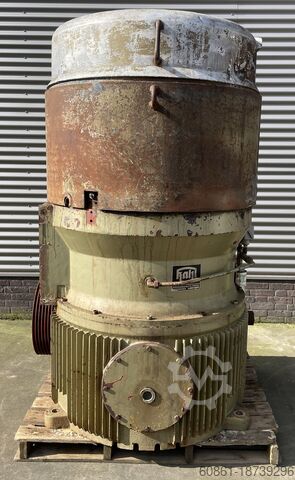

Condition: not inspected (used), functionality: unexamined, Year of construction: 2000, power: 315 kW (428.28 HP), overall weight: 3,000 kg, input voltage: 400 V, type of input current: three-phase, machine/vehicle number: Expander Typ OEE 23,2 315KW, Used expander/extruder, versatile, can be used with both hydraulic counterpressure slide and dies (shaping e.g. for animal feed) Machine was purchased, unfortunately cannot be used because our power connection is not sufficient. Available: expander extruder with gear and drive, hydraulic slide (cone not plate), rotary knife and various dies, hydraulic unit with oil cooler. If required, the associated belt dryer is also available. Please send inquiries by email, thank you. Csdpjvlwchjfx Adrerh

Condition: used, Kahl - Wood Pellet cooler Crsdjv R Tdfepfx Adrjh 3-5 tons per hour

Condition: used, Round sieve - weight: 780 kg - manufacture: Bühler Credpfxjvv Eb He Adreh - model: DFDT-31 - year of production: 2005 - capacity: 8-10 t/hour

Year of construction: 2021, condition: used, functionality: fully functional, overall weight: 43,000 kg, ZENO Shredder Type ZTLL 3000 x 2500 For shredding PVC window frames Output approx. 10 t/h with a 50 mm Ø screen perforation Infeed opening: 3000 x 2500 mm Drive: 2 x 132 kW, gearbox with torque cut-off Rotor swing diameter: 750 mm Rotor speed: approx. 80 rpm Rotor design: 4 rows (180 pcs.) of positive cutting plates, 80 x 80 x 45 mm mounted on tool holders Rotor bearings: pedestal bearings Rotor body: armoured (wear protection) Hopper water spray: flat spray nozzles, 3 l/min each at 3 bar Screen design: solid screen basket, reinforced with ribs, quick-change screen system Counter-blades: adjustable cutting gap, fold-away Side walls in rotor area: replaceable, material Hardox Hopper: 1300 mm high, flared on all four sides, double-walled and concrete-filled, no cover Machine weight: approx. 43,000 kg Control cabinet (loose, for machine control, incl. soft start), with touch panel Additional features: - Solid steel tube with screwed-in tool holders for mounting of cutting plates. - Cutting plates can be changed easily. - Steel tube mounted on both sides in heavy-duty spherical roller bearings in pedestal housings. - Drive shaft made from high-quality steel, bolted to the rotor body. - Coupling between drive shaft and gearbox via shrink disc for improved load transmission. - Hydraulic feed. - Load-dependent control: drive motors are evenly utilized. - Reversing operation. - Internal pusher guide with permanently lubricated bearings. - Hydraulic unit with increased throughput due to idle compensation. - Quick-change screen system / hydraulically extendable and lockable screen. - Hydraulic locking system on the screen assembly. - The compact machine design ensures low power consumption (with high throughput) and quiet operation. Cjdsyx U N Dopfx Adrsrh - Drive via soft-start electronics. - Cutting gap adjustable by setting the counter-blade. - Counter-blade can be folded away hydraulically in the event of overload, with mechanical locking for emergency operation. - The entire machine complies with the EU Machinery Directive and bears the CE mark. Please contact us for further information. Price on request!
