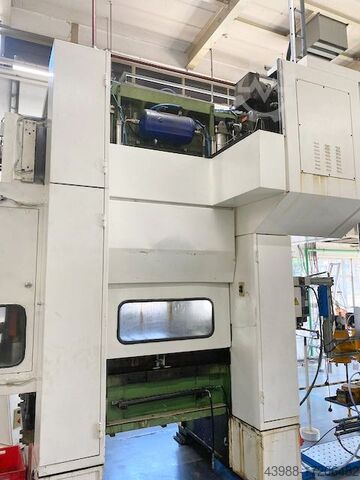

High speed press

KAISER KSTU 1250-12.5-3PR

Condition: used, Year of construction: 1988, machine/vehicle number: 724306, pressure:63 t no. of strokes:400 Hub/min sheet width:180 mm stroke:10 - 80 mm feed length:150 mm band width:180 mm control:KAISER voltage:380 V dimensions of the machine ca.:1,85 x 2,70 x 3,00 m Ledpecxxt Tjfx Abzoag double-column machine with double connecting rods with adjustable stroke, electric rpm control, electric tappet adjustment, pneumatic tappet compensation, Imco individual pressure force monitoring device (split right / left), Unidor tool monitoring system, blower device, original Kaiser gripper feeder type ZR 18D, emergency cut-off, electric 2-hand operation, free-standing control panel

Condition: new, New Transfer press line from min. 300t up to max. 3500t. We offer new mechanical and hydraulic presses for various applications, individually tailored to your needs. Give us your requirements and we will make an attractive offer with installation and service. ISGEC has delivered to more than 26 countries in recent years, including Thailand, Indonesia, Vietnam, USA, Germany, Spain, France, Brazil, Hungary, Mexico, Bangladesh and over 200 presses to 40 Japanese customers. We are proud to be official sales partner since 2020 and look forward to hearing from you. Laodpfsf Rt Ubox Abzjg

Condition: used, Year of construction: 1980, functionality: fully functional, Kohler straightening machine 30-400 - built in 1980 Number of straightening rollers 9 Max. belt width 400 mm Laedpfx Ajv Hrltebzsg GSW decoiler AHM 1500 - built in 1999 Mounted together on a base frame Further data and pictures on request

Condition: used, Year of construction: 1990, Decoiler Coil weight: 2,5 ton Material width: 50 - 500 mm Coil exterior diameter: 1400 mm Expansion range: 420 - 520 mm Leveller / Straightener Material width : 500 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 50 mm Number of pinch rolls: 2 pcs. Material thickness: 6 mm Cross section: 3000 sq mm Laodpfx Aeuqdhkebzjg Feeding speed: 6 - 24 m / min Standard configuration DREHER - Model WAV-MD-25, YOM 2000Electronic universal roller feedSheet width max. 510 mm Sheet thickness max. 6.5 mm Number of feed rollers 2 Diameter of feed rollers 125 mm Feed speed 137 m / min Feed length 0 - 9999.99 mm Feed accuracy +/- 0.05 Drive power 5.5 kW

Condition: good (used), Gillardon GSB 20 pillar drilling machine Drilling capacity in steel (diameter) 20 mm throat 260 mm Drilling stroke Lasdem Sg S Nopfx Abzeg 115 mm

Condition: used, Year of construction: 1994, table length: 1,780 mm, table width: 1,250 mm, pressing force: 320 t, High-performance mechanical punching press with coil line for strip material processing in series production. Manufacturer: Kaiser Pressen Model: KSTU 3150-15 R Machine type: Punching press Year of manufacture: 1994 Press force: 3150 kN Drive type: Mechanical Stroke rate: 20 – 120 spm Ram stroke: 20 – 150 mm Ram adjustment: 150 mm Table area: 1780 x 1250 mm Ram area: 1500 x 1000 mm Shut height: 565 mm Max. tool weight: 3000 kg Ledjy Ndyaopfx Abzsag Strip width: 30 – 800 mm Strip thickness: 0.5 – 3 mm Max. strip thickness: 4 mm Strip entry height: 160 – 260 mm Strip speed: 4 – 30 m/min Straightening rolls: 9 pcs Feed accuracy: ± 0.1 mm Coil inner diameter: 508 mm Coil outer diameter: 1000 – 1500 mm Supply voltage: 3 x 400 V Air pressure: 5 bar Location: Radeberg

Condition: used, Pay-off and Take-up Decoiler KEMMERICH / STANGE Type HA 1500 / 500 Serial No. 51673 Year of Manufacture: 2023 (unused) Maximum coil weight: 1500 kg Ledpfxoua Nngo Abzeag Coil width with guide arms: 500 mm Coil width without guide arms: 670 mm Coil inner diameter: 300 - 370 mm Coil inner diameter with extension jaws: approx. 380 - 440 mm Decoiler turntable diameter: Ø 2080 mm Coil outer diameter without pressure arm: max. 2350 mm Coil outer diameter with pressure arm: max. 2200 mm Center of turntable to decoiler base: 1200 mm Decoiler shaft, support shaft: Ø 70 mm Speed: approx. 1.5 to 20 rpm Motor power: 1.1 kW Power supply: 400 Volt, 50 Hz - stepless turntable speed adjustment via frequency converter - loop switch / proximity switch for decoiler STOP - central expansion via hand crank - clockwise and counterclockwise rotation - pneumatic pressure arm with running roller - 4 guide arms, 870 mm each - 4 plastic extension jaws for adapting the turntable Space requirement (L x W x H) Weight: 970 kg Very good condition

Condition: used, Year of construction: 2006, functionality: fully functional, year of last overhaul: 2022, SCHULER GRÄBENER TMK 2-630 – 630 t Punching and Forming Press with Coil Feeding System Manufacturer: SCHULER / Gräbener Pressensysteme Type: TMK 2-630-3.0-50/210 S Year of Construction: 2006 Press Force: 6,300 kN / 630 t Design: Mechanical Punching and Forming Press / Single-Action Press For sale is a SCHULER GRÄBENER TMK 2-630 mechanical single-action press / punching and forming press with a press force of 6,300 kN, including a complete SCHULER automation strip guiding, straightening, and coil feeding system. The system was used for the mass production of punched and formed parts and is currently still fully assembled on site. Technical Data Press Rated Force: 6,300 kN Rated Stroke: 12 mm Stroke: 50–210 mm Stroke Rate: 15–60 strokes/min Laedszv Utnepfx Abzeg Max. Flywheel Speed: 960 1/min Ram Adjustment: 200 mm Max. Installation Height: 800 mm Table / Tooling Area: approx. 3,000 × 1,500 mm Max. Tool Dimensions: 3,000 × 1,500 × 800 mm Max. Tool Weight: 12,000 kg Drive Power: max. 280 kW Rated Current: 420 A Compressed Air: 6 bar Hydraulic System: 400 bar Clutch / Brake: 6 bar Permissible Switching Rate Clutch / Brake: 16/min Machine Weight without Accessories: approx. 138,000 kg Coil and Feeding System SCHULER Automation / Gräbener Pressensysteme, Year of Construction 2006. Coil / Uncoiling Unit: Type AC-LH-160-0650 Strip Width: 40–600 mm Coil Outer Diameter: 900–1,800 mm Spreading Range: 470–530 mm Coil Uptake / Uncoiling Strip Guiding and Straightening System Threading / Strip Guiding Devices Automated Material Feeding Roller Guides Conveying / Removal Technology Complete Protective Enclosure Control / Operation SCHULER System Control Siemens SIMATIC Operating Components Siemens SIMATIC OP17 Touch Panel Separate Operating Panel for the Feeding System Setup Operator Devices Unidor Process / System Monitoring Condition and Maintenance The system was overhauled in 2022 for approximately €85,000. The maintenance history has been regularly recorded. Current maintenance and repair records are also available for 2026. The system is fully assembled on site and can be inspected by appointment. Scope of Supply The press system is sold, including the associated SCHULER automation and the existing coil, strip guiding, straightening, feeding, and removal technology, as well as the associated protective enclosure and operating / control devices, according to the existing system scope. Complete Service from a Single Source Upon request, we offer a complete project management service for this system – from financing to installation and commissioning at the new location. Possible Services: Individual financing and leasing solutions Organization and support for disassembly Heavy-load loading and transport International transport and export processing Organization of crane and heavy-load operations Reconstruction and assembly at the new location Support during commissioning Coordination of required service and specialist companies This allows the system to be taken over not only at the current location, but also as a completely organized machine project, depending on the customer's requirements. Location: Germany Availability: by arrangement Inspection: by appointment Disassembly / Transport / Reconstruction: can be completely organized upon request Financing / Leasing: upon request Technical data based on available documents and nameplates, subject to change and prior sale.

Condition: excellent (used), Year of construction: 2001, HELMERDING Press KDH 400/2600/2 Pressing force 4,000 kN Stroke rate 15-60 strokes/min Stroke adjustment 80-250 mm Slide adjustment 175 mm Installation height 550-800 mm Table area 2,500x1,600 mm Lasdezlpmzspfx Abzjg Slide area 2,500x1,400 mm Pass-through hole in the press table 1,300x800 mm Weight 106,000 kg Lorenz Strip Line EWH 600/150 Strip width 80-600 mm Strip thickness 0.6-6.0 mm Max. coil weight 7,500 kg
