Cold saws

KALTENBACH KKS 400

Condition: used, 1 used cold sawing machine KALTENBACH KKS 400 Technical data: Saw blade diameter: 400 mm Cutting diameter: 130 mm Cutting area flat: 315x40 mm Cutting area square: 120x120 mm Total power requirement: 1.5 kW Space requirement approx.: 1200 x x1000 x 1700 mm Machine weight approx.: 1250 kg Manufacturer's description; The powerful drive provides the prerequisite for high cutting performance, long service life of the saw blades and perfectly clean cut surfaces. All gears are hardened and flank-ground. The entire gearbox runs in an oil bath; all bearing points have roller bearings. Various speeds can be achieved by means of gear wheels, the cutting speeds of which are switched electrically by pole-changing motors. Gedpfxeq Ukvxs Abpjbw The tried and tested saw blade guide in a strong pivot bearing is subject to practically no wear. It is rigid and allows work within the tightest tolerances. The hydraulic feed of the saw blade is infinitely adjustable according to Skla.

Condition: used, Year of construction: 1988, saw blade diameter 0400 mm cutting diameter 140 mm cutting length 140 mm mitre joint cuts -/+ degrees +/-45° cutting capacity - square 130 x 130 mm cutting speed 5 - 30 m/min type of control konvent. voltage 380 V connected load 6 kW weight of the machine ca. 1,5 t Gedpfx Aexu Nrisbpobw dimensions of the machine ca. 1,5 x 1,5 x 1,5 m Machine has angle cutting arrangement +/- 45°, is semi automatic without material infeed.

Condition: used, Year of construction: 2001, saw blade diameter 400 mm miter . Kühlung weight of the machine ca. 1 t number 4 Stück +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. Gbsdpfx Abolug Tuopew +++++

Condition: refurbished (used), Year of construction: 1991, For sale is a Kaltenbach cold circular saw. The machine has been completely disassembled and rebuilt. As part of the overhaul, the gearbox, motor, and hydraulics were reconditioned. The table has been planed and fitted with new bearings. Gearbox backlash-free! Type: KKS 400 E Year: 1991 Saw blade diameter: 400 mm Motor power: 1.8/2.7 kW Cutting speed: 10/20, 13/26, 15/30 m/min Feed rate: 0 – 1,000 mm/min Rapid advance/return: 1,550 mm/min Max. working area: 130 mm Working area for square material: 120 mm Working area for flat material: 305 x 20 mm Working area for round material: 130 mm Min. working area: 10 x 10 mm Mitre range: 0° – 90° – 0° Gbsdpoxq S Ilefx Abpsw Dimensions LxWxH: 1,080 x 900 x 1,760 mm Weight: 900 kg Inspection / collection in 89558 Böhmenkirch Shipping available on request Forklift available for loading.

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: 1500 01025, saw blade diameter: 400 mm, total height: 1,700 mm, total width: 1,100 mm, overall weight: 700 kg, type of input current: three-phase, cutting diameter: 130 mm, space requirement height: 2,000 mm, space requirement length: 900 mm, space requirement width: 1,200 mm, length stop: 6,000 mm, Kaltenbach KKS400E cold circular saw, year of manufacture approx. 1980–1982, fully functional, can be inspected under power. Incl. outfeed roller conveyor with 6000 mm length measuring device. Cutting range at 90°: D130 or 120x120 mm, flat material 315x40 mm. Godpewx Nn Iefx Abpobw

Condition: used, Kaltenbach KKS 400 Technical Specifications Saw blade diameter: 370 mm Cutting diameter: 115 mm Gsdpsxhdvvefx Abpebw Stroke: - mm Cutting area at 90 degrees, flat: 300 x 35 mm Cutting speed: 11 / 15 / 22 m/min Total power requirement: 1.4 kW Machine weight approx.: 850 kg Space requirement approx.: 1100 x 1100 x 1600 mm

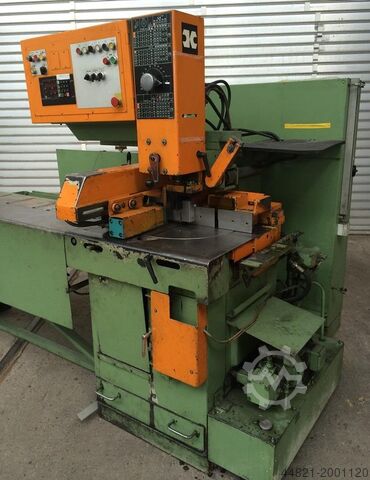

Condition: new, Year of construction: 1984, saw blade diameter 400 mm capacity 90 degrees: round 135 mm capacity 90 degrees: square 130 mm 200 x 80 mm weight of the machine ca. 1,2 t dimensions of the machine ca. 2,0 x 1,8 x 1,95 m Automatic circular saw with - Feed roller conveyor 1500 - Roller conveyor with stop 1000mm Gbedpfx Abevu Hcvopsw

Condition: good (used), Year of construction: 1991, functionality: fully functional, Semi-automatic cold circular saw Make: Kaltenbach Model: KKS 400 E Year: 1991 Technical data: Manufacturer: Kaltenbach Model: KKS 400 E Year of manufacture: 1991 Saw blade diameter: 400 mm Gearbox with speeds: 14/28 m/min -Cutting range at 90° flat: 120×120 mm -Cutting range at 45° flat: 305×40 mm -Cutting range, round material: 130 mm -Cutting speed: 14/28 m/min Total power requirement: 3.5 kW Machine dimensions: L 1.0 x W 1.0 x H 1.90 m (plus roller conveyors) Weight: 1,250 kg + roller conveyors Gbedpjw U Dbgsfx Abpjw Equipment: - 3 m right-hand stop with roller conveyor - Left-hand roller conveyor, L = 1.5 m All information is provided without guarantee. A demonstration is possible at any time in our showroom.

Year of construction: 1980, condition: used, machine/vehicle number: 55155, disk of circular saw-Ø: 400 mm Gbodpfoct Nc Iox Abpjw cutting area at 90° round: 130 mm cutting area at 90° square: 200 x 80 bzw. 315 x 40 mm cutting area in mitre at 45° square: flach/hochkant 180x70/100x60 mm cutting speed: 19/28 m/min engine: 380 V, 1,7/2,6 kW space needed: 1100 x 1050 x 1620 mm weight: 850 kg

Year of construction: 1988, condition: used, machine/vehicle number: 109357, disk of circular saw-Ø: 400 mm cutting area at 90° round: 130 mm cutting area at 90° square: 240 x 85 mm cutting area in mitre at 45° square: profiles flat 180 x 70 mm cutting speeds: 10/20 m/min Godpeb Sciaefx Abpobw forward feed speeds: 0 - 1000 mm/min electrical connection: 400 V, 1,7/2,6 V space needed: 2750 x 1500 x 1900 mm weight: 1350 kg
