Cold saws

Kaltenbach KKS 401

Condition: ready for operation (used), empty load weight: 1,350 kg, total length: 1,960 mm, total width: 1,170 mm, total height: 1,070 mm, additional equipment features: CNC full automatic, Full automatic circular saw Automatic CNC positioning of sawblade = automatic turntable, up to 180° left and right Equipped with: 1 - workpiece storage unit (green) + auto rollerconveyor, length 7 meter 2 - auto feed-in by pulling workpiece to sawblade, max single movement of 2000 mm - repositioning is possible for longer lengths 3 - auto feed-out of cut workpiece, max movement of 1000 mm 4 - unloading table with chains Automatic zero point recognition Automatic programmed controlled processing of cutting sequences Storing of programs with different sawing tasks Dia saw / abrasive - disk: max 425 mm Turningspeeds: 6 > 30m/min Power needed / motorpower: 5,5 kW Fsdsxpki Eepfx Aa Nogi

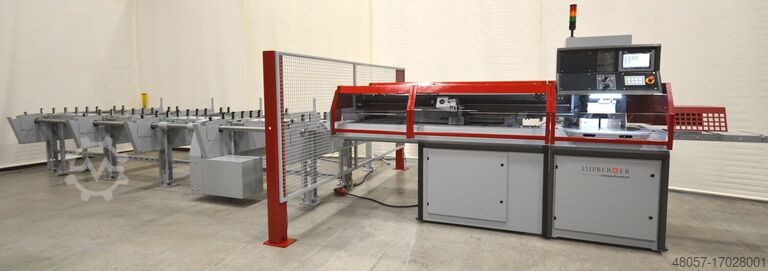

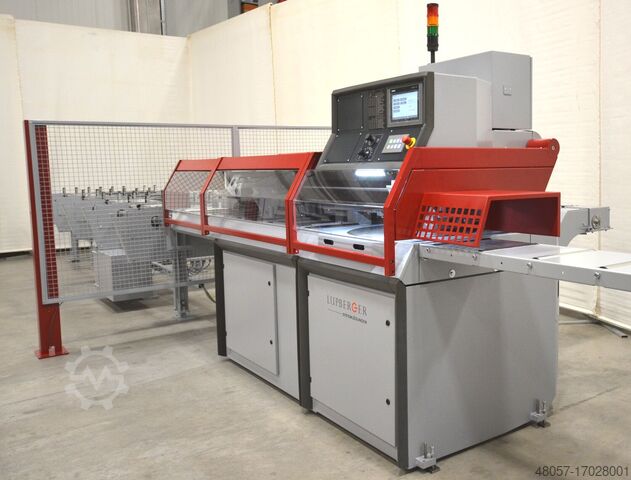

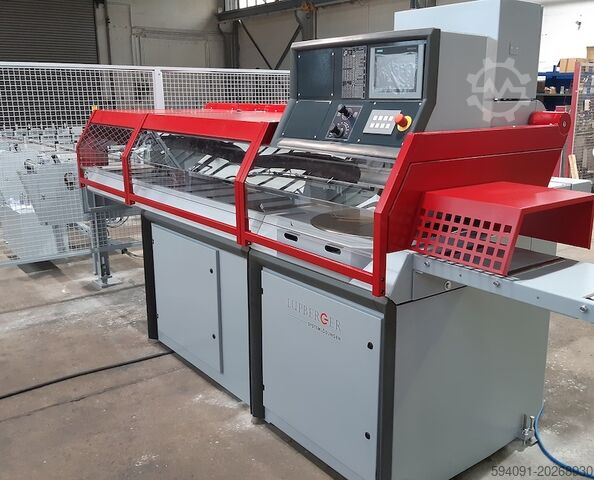

Condition: refurbished (used), Year of construction: 2024, Saw blade solid carbide / HSS: max. 425 mm Drive power: - Two-stage with chain: 1.7/2.6 kW, - Two-stage with belt pulley: 3.7/4.5 kW Cutting speed saw blade (400 mm): - two-stage with chain: 10/20 m/min, 13/26 m/min, 15/30 m/min - two-stage with belt pulley: 20/40 m/min, 30/60 m/min Infinitely variable saw speed control fully electronic Fjdpfx Aaeuiy Sbo Nogi Working range square 90° max.:120 x 120 mm 45° max: Working range flat: 90° max.:230 x 80 mm 45° max: Working range round: 90° max.: 140 mm 45° max: Feed length single stroke:5-2000 mm Multiple stroke:5-9999 mm Feed speed AC servo max.: 500 mm/s Weight approx.:3600 kg Dimensions LxWxH:3500mm x 1300mm x 2100mm Installation area LxW: 3500mm x 1300mm Technical description Kaltenbach KKS 401/ KKS 451 NA 2000 Retrofit Kaltenbach KKS 401/ KKS 451 Retrofit High-performance automatic saw for steel. Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The HMI interface for controlling the machine ensures simple and trouble-free operation of the system. Due to the design of the sawing system, it is possible to realize a very precise length tolerance. The machine is generally overhauled in our company at the customer's request. Among other things, the following points will be renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI operating panel - Replacement of the ball screw - Replacement of servo motor and servo inverter - Replacement of the frequency converter for the main saw drive - New electronic components - Maintenance or replacement of all hydraulic cylinders and valve terminals - Optimization and overhaul of the cooling system - Replacement of general wear parts - Overhaul of the machine body The machine also features - Fully automatic feed - Fully automatic miter adjustment +/- 60° Warranty: Unless otherwise agreed, we guarantee our machines for 6 months on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Scraper - Chain magazine for 6m materials - Removal gripper system for sorting the cut-off pieces - Removal gripper system for sorting the cut-off pieces and realizing a multiple recut at the end of the workpiece - Delivery and installation on your premises - Training of your employees

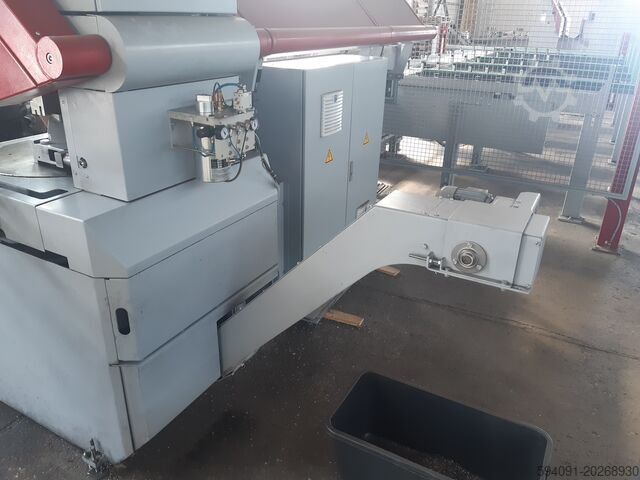

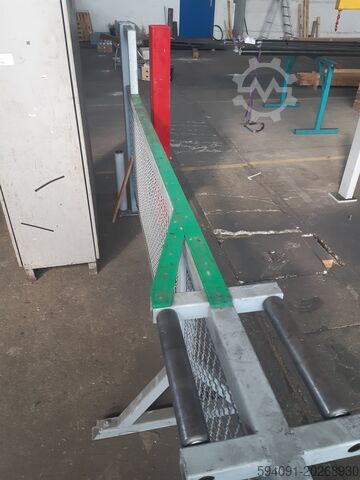

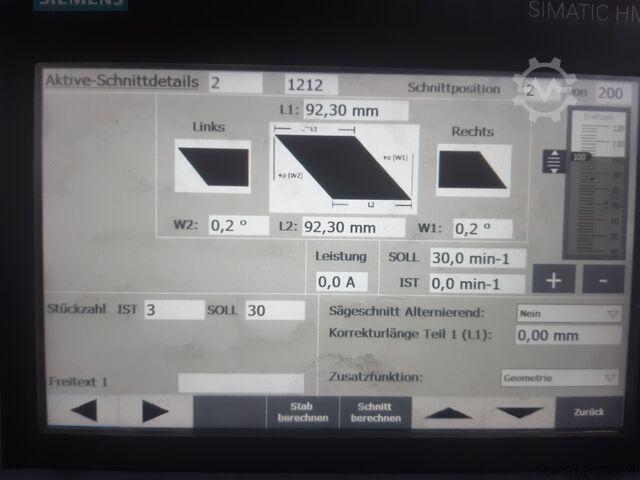

Condition: excellent (used), Year of construction: 2021, saw blade diameter: 400 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 76 rpm, Equipment: rotational speed infinitely variable, Kaltenbach KKS 401 NA 2000 Retrofit Model: KKS 401 NA Year of overhaul: 2021 Complete retrofit and overhaul in 2021, including all-new electrics, controls, and drives. Saw motor: 5.5 kW, frequency controlled Saw blade speed: 20–76 rpm Blade cutting speed (400mm): 25–96 m/min Working range, round material: 135 mm Working range, square material max.: 130 x 130 mm Working range, rectangular material max.: 230 x 80 mm Kaltenbach KKS 401 mit NC-controlled mitre adjustment Kaltenbach RKS 451 / KKS 401 feed extension, 2000 mm Extended feed length for efficient processing of particularly long sections. Flat magazine for 6m steel materials, 6 x 2m - For preloading of round, square, and profile material - System designed for materials up to 200 mm width (slot width adjustable) - Material supplied via chain conveyor with loadable compartments - Material separation by compartment - Fully automatic loading process controlled via Siemens PLC on the saw - Material adjustment at the magazine is manual - Magazine payload max. 2.0 tons - Material loading possible from front side - Protective enclosure with light barrier - Total length approx. 7.5 m - Total width approx. 2.5 m Kaltenbach RKS 451 / KKS 401 chip conveyor Minimum quantity lubrication by Menzel with recirculating cooling system including integrated pump - Switchable in machine settings between minimum quantity and recirculating lubrication Remote maintenance module, interface for remote machine access and update capability via remote maintenance by Lupberger Systemlösungen OHG Preparation for offload system installation - Hardware preparation for future installation of an offload system Saw cycle control Fodpfxoxmv Rcj Aa Nsgi - User operates the control in cycle mode - Data entry in surface structure required for the entire bar - Fetch material (with cut-off flap or magazine option) - Relative positioning - Absolute positioning - Absolute cutting with mitre selection (with NC-controlled mitre and pusher feed option) - Relative cutting with mitre selection (with NC-controlled mitre option) - Wiper function (with wiper arm and material disposal unit option) - Material eject front - Material eject via flap (with pusher feed and flap) - Repetitions - Program end Fully operational, in very good overall condition. Price: Negotiable plus VAT. (no warranty)

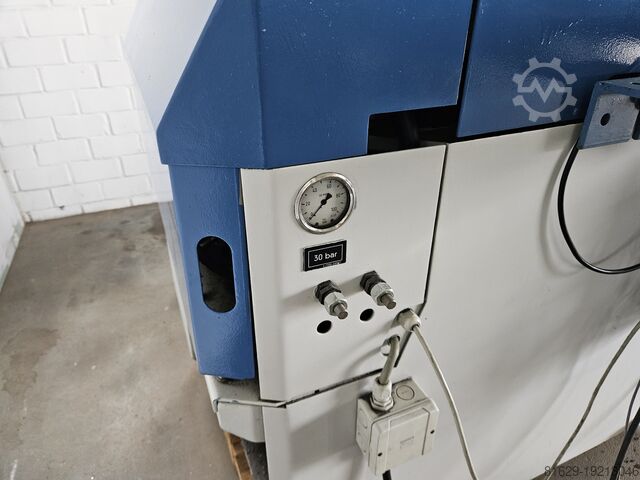

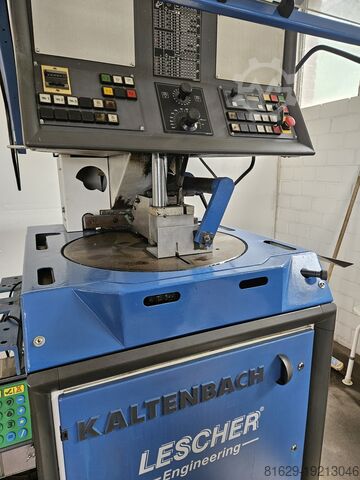

Condition: good (used), Year of construction: 1991, functionality: fully functional, overall weight: 1,350 kg, Kaltenbach KKS 401 Fgedpfx Aeui R Dpsa Noi Fully functional Condition very good.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 304289, saw blade diameter: 450 mm, cutting speed: 1,000 mm/min, cutting width (max.): 5 mm, opening stroke: 160 mm, TECHNICAL DETAILS Saw Blade Saw blade diameter standard: 450 mm Saw blade diameter min.: 370 mm Cutting width: max. 5 mm Saw blade mounting – Bore: 50 mm Saw blade mounting – Number of driving pins: 4 pcs Saw blade mounting – PCD of driving pins: 80 mm Saw blade mounting – Diameter of driving pins: 13 mm Saw blade feed speed: 0–1,000 mm/min Vertical Clamping Unit Opening stroke with aluminum pressure pad (mitre cuts): max. 160 mm Opening stroke with steel pressure pad (straight cuts): max. 160 mm Rotary Table Rotary table adjustment: stepless ±60° Cutting Speed with 450 mm Blade Diameter Two-stage with chain: 11/22 m/min, 13/26 m/min, 15/30 m/min Two-stage with toothed belt: 35/70 m/min Frequency-controlled with toothed belt: stepless from 7 to 43 m/min, stepless from 15 to 75 m/min Automatic Feed Unit Programmable length: max. 9,999 mm Material width: max. 240 mm Remnant length with single-sided swiveling blade (0/60 degrees): min. 78 mm Remnant length with clamping gripper: min. 98 mm Remnant length with double-sided swiveling blade (-60/+60 degrees): min. 265 mm Remnant length with double-sided swiveling blade and clamping gripper: min. 285 mm Clamping force max.: 3,900 N Clamping force min.: 800 N Traverse speed: max. 30 m/min MACHINE DETAILS Electrical Connection Operating voltage: 400 V, 50 Hz (3-phase) Control voltage DC: 24 V Fjdpfx Asw H Ivaea Njgi Solenoid voltage DC: 24 V Two-stage with chain: 1.8/2.7 kW Two-stage with toothed belt: 3.7/4.7 kW Frequency-controlled with toothed belt: 4.0 kW, 5.5 kW EQUIPMENT HSS solid steel blade HSS segmental saw blade Automatic feed unit

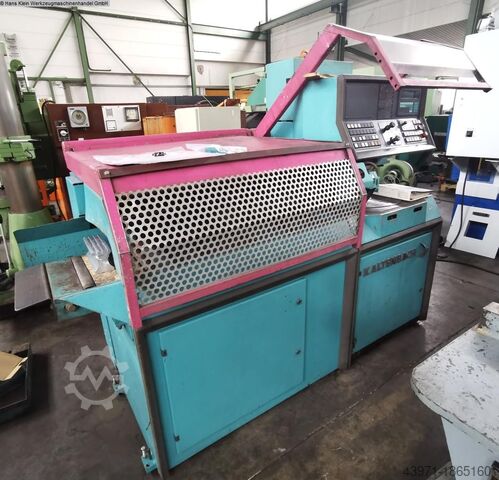

Condition: used, Year of construction: 1991, saw blade diameter 400 mm cutting diameter 130 mm capacity 90 degrees: square 120 x 120 mm capacity 90 degrees: flat 220 x 80 mm feed length 600 mm feed length: multiple 1800 mm cutting speed 10/13/15/20/26/30 m/min Fgodpfx Aaov Hhrve Nsi mitre joint cuts -/+ degrees 60 total power requirement 5,5 kW weight of the machine ca. 1,8 t dimensions of machine L x W x H 2,45 x 1,20 x 2,00 m - mitre cutting +/- 60 ° with DRO - Accessories: new sawblade 400 mmø, coolant
