Light metal / aluminum circular sawKaltenbach
RKL551 AX
Light metal / aluminum circular saw
Kaltenbach
RKL551 AX
Year of construction
2024
Condition
Used
Location
Emmendingen

Basic data
- Machine type:
- Light metal / aluminum circular saw
- Manufacturer:
- Kaltenbach
- Model:
- RKL551 AX
- Year of construction:
- 2024
- Condition:
- refurbished (used)
Price & Location
- Location:
- Alfred-Walz-Str. 17, 79312 Emmendingen, Deutschland

Call
Details about the offer
- Listing ID:
- A170-27981
- Update:
- 12.12.2024
Description
Overhaul year: 2024
Saw blade max. carbide 500/550 mm
Drive power saw motor: 6 KW
Saw motor speed in 6 stages: 2400- 3200 min-1
Saw blade cutting speed (500-550 mm): 3800 - 5500 m/min
Saw blade feed steplessly adjustable 0-40 mm/s
Saw height control infinitely adjustable fully electronic
Working area square 90° max.: 160 x 160 mm
Working area flat 90° max.: 380 x 60 mm
Working area round: 90° max.:165 mm
Feed length: 10-9999 mm
Feed speed AC servo max. 400 mm/s
Compressed air connection on site 6 bar
Weight(saw)approx.:2850 kg
Dimensions LxWxH(saw)approx.:2900mm x 1725mm x 2200mm
Footprint LxW 2900mm x 1725mm
The machine is in mint condition, both technically and visually, after a completed retrofit.
Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The positioning system ensures simple and very profitable operation of the machine. Thanks to the powerful motor, short cycle times can be achieved even when sawing thick-walled profiles or solid materials. The soundproof cabin reduces noise emissions to a minimum.
The machine is generally overhauled in our company at the customer's request. Among other things, the following
points were renewed:
- Conversion to Siemens S7 PLC control
- Conversion to Siemens HMI operating panel
- Replacement of the ball screw
- Replacement of servo motor and servo inverter
- Replacement of the frequency converter for the main saw drive (optional)
- New electrical components
- New pneumatic lines
- Maintenance or replacement of all hydraulic cylinders and valve terminals
- Overhaul of the extraction system
- Overhaul of minimum lubrication system
- Replacement of general wear parts
- Overhaul of the soundproof cabin
The machine also has

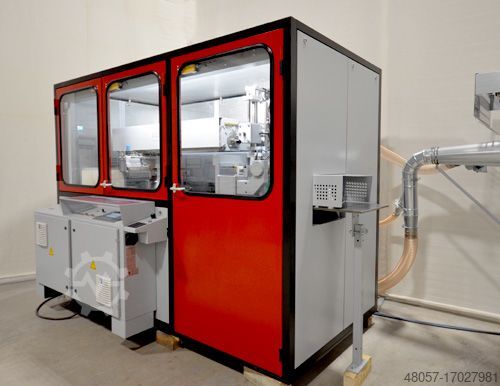

- Soundproof cabin
- Zero point adjustment (manual)
Warranty:
Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty.
Optional:
- Chain magazine for 4/6m materials
- Splitting extension (for a high-quality cut surface without return marks)
- Horizontal clamping saw line
- Cut stop in material feed unit
- Reinforced motor 11 KW
- Roller conveyors
Gusdpfsuiy Rqex Acaoh
- Delivery and installation on your premises
- Training of your employees
The listing was translated automatically. Translation errors are possible.
