Storage elevator

Kardex LR35

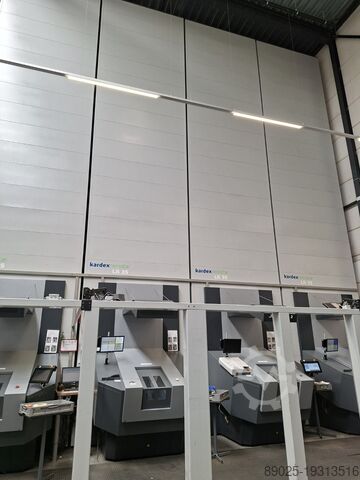

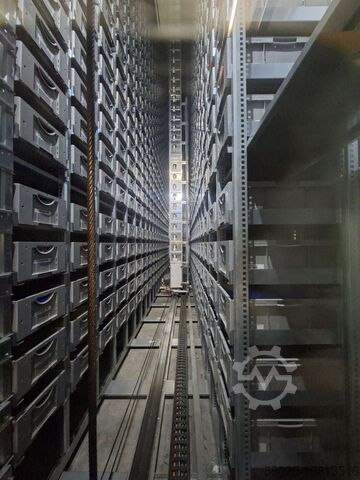

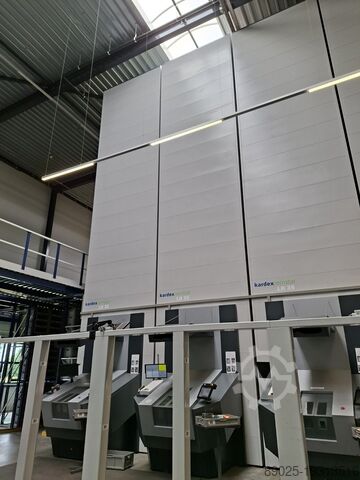

Condition: like new (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 106000127, total height: 4,400 mm, total width: 2,350 mm, empty load weight: 5,000 kg, total length: 10,470 mm, construction height: 4,400 mm, construction width: 2,350 mm, operating hours: 1,000 h, input voltage: 400 V, input frequency: 50 Hz, input current: 29 A, type of input current: three-phase, Equipment: documentation/manual, Kardex Remstar LR-35 vertical storage module (Compact Buffer / Miniload-in-a-Box) with integrated SmartLOG pick-to-light system. Year 2019. Like new, lightly used. The system has fewer than 1,000 operating hours; the company ceased operations due to unforeseen circumstances, so the machine has been idle since 2020. Technical data (identification plate): Type: LR-35-20X400X600X4400 Serial number: 106000127 Year: 2019 Manufacturer: Kardex Produktion Deutschland GmbH, Neuburg plant Rated voltage: 3/N/PE 400 V, 50/60 Hz Rated power: 20.0 kVA / 28.8 A Max. load per container: 35 kg Certification: CE, TUV SUD, GS Configuration (installer specifications): Dimensions: 2350 mm wide x 10470 mm long x 4400 mm high Storage: 2 aisles x 20 bays x 17 levels 675 containers of 400 x 600 x 122 mm Usable volume: 19.76 m³ Throughput: 110 to 130 containers per hour With a height of 4.4 m, the machine adapts to a standard warehouse, unlike the taller LR units that require a very high building. Location: San Sebastián, Spain. Sold at the destination; the buyer is responsible for dismantling and transport. Complete documentation available (invoice, CE declaration, manuals, installer technical specifications, and layout drawing). A second identical unit is also available (2020, brand new, unused). Kedpfxozu Ttkj Ag Aonc Price negotiable. Serious inquiries only.

Condition: excellent (used), Year of construction: 2020, Table size 1630 x 760 mm, table load 1500 kgs, Traverses XYZ 1525 x 762 x 625 mm, rapid feedrates 30m/min, Spindle power 24Kw, spindle speed 12,000rpm, 30 station ATC, spindle taper BT40, through spindle coolant, swarf conveyor, spindle probe , heidenhain tnc 640control. Kedpfjzbkm Nox Ag Ajnc

Condition: new, Year of construction: 2020, functionality: fully functional, machine/vehicle number: 106000162, total height: 4,400 mm, total width: 2,350 mm, empty load weight: 5,000 kg, total length: 10,470 mm, construction height: 4,400 mm, construction width: 2,350 mm, input voltage: 400 V, input frequency: 50 Hz, input current: 28 A, type of input current: three-phase, Equipment: documentation/manual, Kardex Remstar LR-35 vertical storage module (Compact Buffer / Miniload-in-a-Box) with integrated SmartLOG pick-to-light system. Year 2020. Like new, never used. Zero operating hours. The system was commissioned by the installer, but the company ceased operations before it went into service, so the machine has remained unused in like-new condition since its installation. Technical data (identification plate): Type: LR-35-20X400X600X4400 Serial number: 106000162 Year: 2020 Manufacturer: Kardex Produktion Deutschland GmbH, Neuburg plant Rated voltage: 3/N/PE 400 V, 50/60 Hz Rated power: 20.0 kVA / 28.8 A Max. load per container: 35 kg Certification: CE, TUV SUD, GS Configuration (installer specifications): Dimensions: 2350 mm wide x 10470 mm long x 4400 mm high Storage: 2 aisles x 20 bays x 17 levels 675 containers of 400 x 600 x 122 mm Usable volume: 19.76 m³ Knsdpfeztzqbex Ag Aoc Performance: 110 to 130 containers per hour With a height of 4.4 m, the machine is suitable for a standard warehouse, unlike the taller LR units that require a very high building. Location: San Sebastián, Spain. Sold at the destination location; the buyer is responsible for dismantling and transport. Complete documentation available (invoice, CE declaration, manuals, installer's technical specifications, and layout plan). A second identical unit (2019, little use) is also available. Price negotiable. Serious inquiries only.

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 400 mm, wire diameter (max.): 0.3 mm, overall weight: 2,700 kg, number of axes: 5, wire diameter (min.): 0.1 mm, This 5-axis Mitsubishi MP1200 wire EDM machine was manufactured in 2021. It features a robust design with a machine weight of 2700 kg and is equipped with the advanced D-CUBES controller. If you are looking to get high-quality wire electrical discharge machining capabilities, consider the Mitsubishi MP1200 machine we have for sale. Contact us for further details. - Machine Type: Wire Electrical Discharge Machine- Series: MP Series (Water Technology)- Type: TYPE II- Controller: D-CUBES- Power Supply: 3PE 50Hz AC200V, 35A, SCCR 2.5kA- Air Source: 0.5 MPa, 75 L/min- Operating Hours:- Machining Time: 3711- Start Time 1: 26- Start Time 2: 4137- Off Time: 426 Kjdpfjz E Su Ejx Ag Aonc
