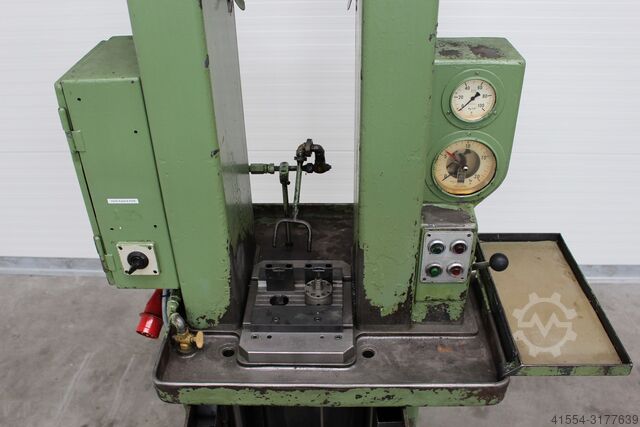

Internal broaching machine

Karl Klink RIS 6 x1000

Manufacturer: Karl Klink
Model: RIS 6 x 1000
Year of manufacture: 1958
Weight: 2500 KG

General / technical data:
Used vertical hydraulic internal cutting machine with 1 cutting station, in operational condition
Pulling force: 6000 KG
Cutting length: 1000mm
Cjdpfx Apoda Ugio Aoha
Mounting diameter of the draw head: Ø 85 mm
Passage width between the cylinders: max. 280 mm
Cutting speed: hydraulically steplessly adjustable from 1 m/min to max. 7 m/min
Return speed: hydraulically steplessly adjustable from 7 m/min to max. 25 m/min
Machine footprint: (w x d x h) approx. 1000 x 1200 x 2800mm
Power supply / connection value: 380Volt 50 Hz / 4KW

Accessories / special equipment:
The machine is equipped with a workpiece table for 1 cutting station. The tool clamping system is designed for a spring-mechanical locking mechanism (DIN 1415).
The machine has an integrated coolant system. A double draw head for 2 flat cutting tools with a workpiece support plate is available.

Remarks:
The machine is in good condition for its age and is ready for immediate use. It is designed for manual operation in production with medium batch sizes. Ideally, a machine pit or, alternatively, a platform is required for operation. Draw heads are available upon request. The machine does not have a tool feed system. The machine can be inspected in our warehouse while it is powered.
