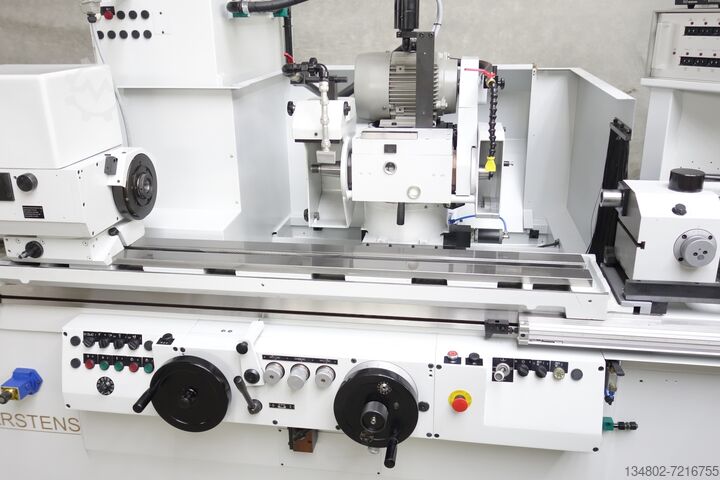

Cylindrical grinding machine

Karstens K11 650

Condition: as good as new (ex-display), Year of construction: 2026, Karstens K11 650 Premium Retrofit Round Grinding Machine Manufacturer: Karstens Technical Specifications: Center distance: 750 mm Center height: 180 mm / (250 mm = Option) Workpiece weight: 100 kg cantilevered, 250 kg between centers Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MK 4, speed continuously adjustable 30-450 rpm, swivel range 0 - 90 ° Tailstock: MK4, quill stroke 45 mm, cylindrical correction Quill force: 200-600 N manually, (up to 2500 N possible, adjustable = Option) Table inclination: 12.5 degrees Travel of the feed spindle: 80 mm Rapid traverse: 50 mm Rough adjustment with air cushion: 280 mm Grinding spindle motor, external: 4 kW / (5.5 kW = Option) Continuously adjustable grinding wheel speed with potentiometer Grinding spindle motor, internal: 2.2 kW Workpiece spindle motor: 1.1 kW Hydraulic motor: 1.5 kW Lubrication motor: 0.1 kW Hydraulic tank: 80 liters Machine weight: Net 3500 kg Feed drive via DC motor Air cushion-supported rapid adjustment of the grinding spindle head for quick and safe positioning to the grinding location. Separate drive for the spindles for external and internal grinding. Fully automatic operating sequence, feed movement via wind rose switch: Rapid traverse forward, rapid traverse backward, grinding operation, feed stop, incremental feed. Automatic longitudinal grinding cycle Central coolant supply for all grinding points Workpiece spindle head with continuously adjustable drive with a co-rotating and lockable spindle. Bdsdpfx Amoiv Audebjd Feed control, digital with Siemens panel and Siemens PLC for longitudinal grinding and plunge grinding, input for retraction, feed increments, feeds, dwell times, idle strokes, compatible with the old Karstens feed control, with color Siemens touch panel Scale in X and Z axes, manufacturer HEIDENHAIN. Similar to Weiss / EMAG / GP round grinding machines / Studer / Kellenberger / Schaudt / Tschudin / Tacchella / Dannobat / Bahmüller / Fortuna.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 70 kg, center width: 650 mm, grinding wheel diameter: 400 mm, workpiece weight between centers: 250,000 g, The machine has been fully repaired and inspected by the seller! Bodswy Rnfepfx Ambedd TECHNICAL DETAILS Working Area - Distance between centers: 650 mm - Center height: 180 mm - Workpiece weight: max. 70 kg (overhung) / max. 250 kg (between centers) - Grinding wheel diameter: 400 mm Workpiece Spindle - Mount: MK4 (Morse taper 4) - Speed: 30 - 450 rpm - Swivel range: 0 - 90° - Motor power: 0.55 kW Tailstock - Mount: MK4 (Morse taper 4) - Quill stroke: 45 mm - Quill force: 200 - 600 N Adjustment Travels and Settings - Table swivel angle: 10° - Infeed spindle travel: 80 mm - Rapid traverse: 50 mm - Coarse adjustment with air cushion: 280 mm MACHINE DETAILS Drives - External grinding spindle motor: 4 kW - Internal grinding spindle motor: 2.2 kW Weight - Machine weight: 3,600 kg EQUIPMENT - Air-cushion supported rapid adjustment of grinding spindle headstock - Separate drive for external and internal grinding spindles - Fully automatic operation with rotary switch - Automatic longitudinal grinding cycle - Central coolant supply for all grinding positions - Workpiece spindle stock with stepless drive control - Infeed control for longitudinal and plunge grinding

Condition: refurbished (used), Year of construction: 2024, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 70 kg, center width: 650 mm, grinding wheel diameter: 400 mm, Equipment: rotational speed infinitely variable, Fully overhauled cylindrical grinding machine, year of manufacture 2024! No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Centre distance: 650 mm Centre height: 180 mm Workpiece weight: 70 kg (unsupported), 250 kg (between centres) Grinding wheel diameter: 400 mm Bedpfx Amowy Ufujbedd Workpiece Spindle and Tailstock Workpiece spindle: Morse taper 4 Spindle speed: steplessly variable, 30–450 rpm Swivel range: 0–90° Tailstock: Morse taper 4 Quill stroke: 45 mm Quill force: 200–600 N Axes and Adjustments Table swivel: 10° Infeed spindle travel: 80 mm Rapid traverse distance: 50 mm Coarse adjustment, air cushion: 280 mm MACHINE DETAILS Motor External grinding spindle motor: 4 kW Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 0.55 kW Machine weight: 3,600 kg FEATURES Infeed drive via DC motor Air-cushioned rapid adjustment of grinding spindle headstock Separate drive for external and internal grinding spindles Fully automatic operation: rapid advance, rapid return, grinding cycle, infeed stop, mym infeed Automatic longitudinal grinding cycle Central coolant supply Infeed control for longitudinal and plunge grinding
