Tool presetter

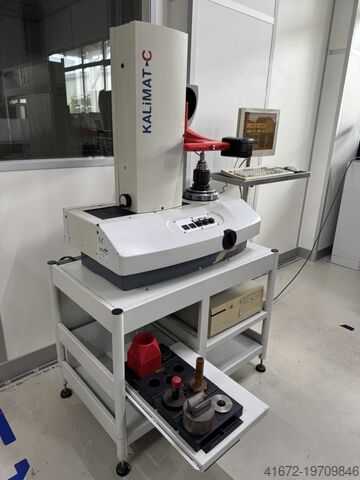

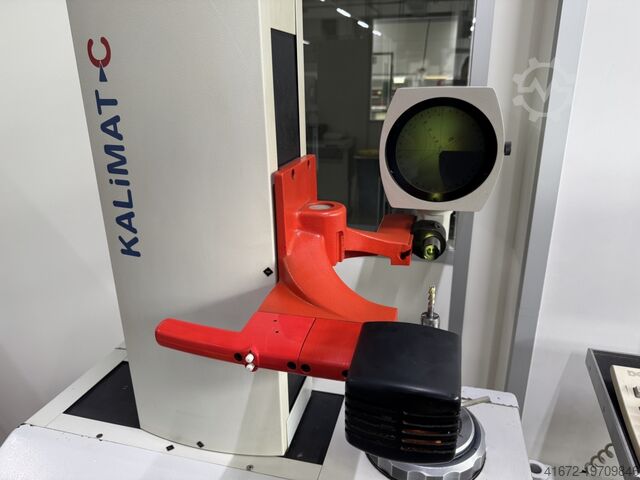

Kelch Kalimat C 43

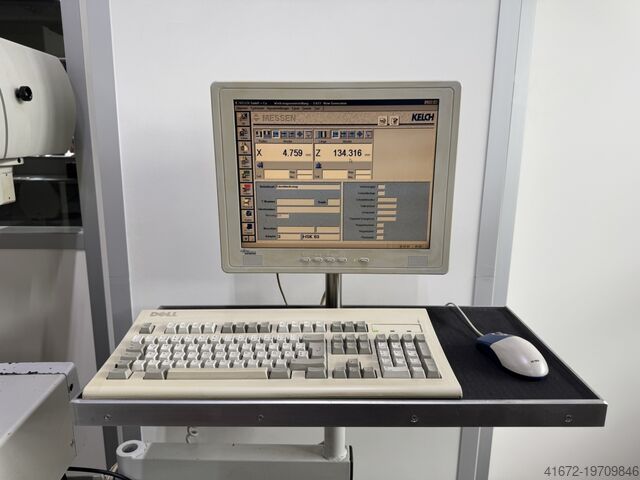

Condition: good (used), Year of construction: 2002, measuring range X-axis 330 mm measuring range Z-axis 400 mm 1 tool presetter Make: KELCH, type: Kalimat C34, year 2002 Measuring range X/Z 330 x 400 mm Easy-Wrap Set measuring software Cjdpfjw N S Epex Ad Norb 2 adapters VDI / HSK, tool table

Condition: used, Year of construction: 1998, measuring range X-axis 330 mm measuring range Y-axis 400 mm weight of the machine ca. 0,250 t dimensions of the machine ca. 0,88 x 0,52 x 0,99 m Tool presetter - year of manufacture 1998 Workshop PC - year of manufacture 2008 Label printer - year of manufacture 1999 --> Measuring axes 2 precision guides on both axes in a recirculating ball bearing system with maximum load capacity, each with 2 recirculating ball bearings per guideway, preventthe measuring slides from yawing and pitching. --> Optoelectronic measuring systems Heidenhain LS, centred in both measuring axes for position determination in the centre of the measuring slides. --> Tool holders Hardened SK 50 tool spindle with taper in gauge quality, mounted in precision roller bearings for maximum concentricity and reproducibility. Codpfsw Ap Rqex Ad Nerb --> Rotation of the tool spindle can be pneumatically clamped at the touch of a button, Positioning 4x 90° for stationary tools via pneumatic index bolts. --> Scanning of cutting edges High-quality profile projector with 150 mm matt disc diameter and 20- x magnification for non-contact measurement and reliable reading of the cutting position in the projector. --> Rotatable and fixed crosshairs for checking the radius and angle of the tool cutting edge. - functional - not in need of repair incl. measuring computer, label printer, screen and keyboard

Condition: good (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 3197, travel distance Y-axis: 420 mm, travel distance Z-axis: 420 mm, Equipment: documentation/manual, Tool presetting device Manufacturer: KECHL Type: Trabant 351-2/M Year: 1995 Movable by hand / with handwheel / button for feed and rapid traverse. Travel paths: X/Y 270 mm In good condition. Cedpfx Aew N N I Uod Norb Documentation available.
