Welding fume extraction

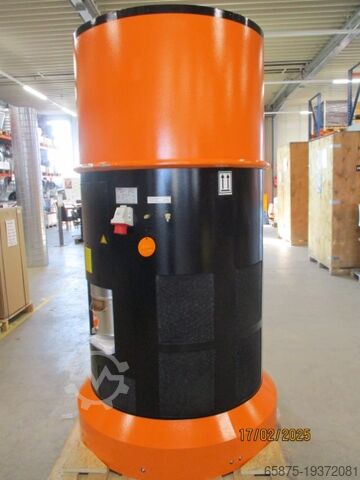

KEMPER CleanAirTower

Kemper CleanAirTower - CleanAirTower room air purification

Energy-efficient room ventilation
Djdpswthbvefx Adrscn

based on the displacement ventilation principle
for welding fumes in production halls

Application area:
- For production and storage halls with high dust loads
- Workshops where local extraction is not possible
- As a supplement to local extraction systems
- Environments with changing sources of dust/fume

Benefits/Features:
- Effective energy capture through Pinball method and Tornado principle
- Low risk from foreign objects
- Reduced heating costs due to air recirculation and distribution
- Long filter service life through optimized airflow
- High safety due to dust disposal without contamination
- Cost-effective installation, also retrofittable, as no ducting is required
- New head element retrofittable to existing systems
- Safe transport and easy installation via crane lugs
- KEMPER-Cloud connection via mobile network

Technical data:

* max. volumetric flow: 6,000 m³/h
* filter area: 60 m²
* motor power: 5.5 kW
* supply voltage: 3 x 400 V, 50 Hz
* control voltage: 24 V DC
* rated current: 11.0 A
* sound pressure level: 72 dB(A)
* compressed air connection: 5 - 6 bar
* dimensions (W x H): 1,172 x 3,622 mm
* weight: approx. 666 kg

The listing was translated automatically. Translation errors are possible.
