Micrometer

Keyence

Condition: ready for operation (used), functionality: fully functional, repeat accuracy: 0.002 mm, table load: 50 kg, rotary table diameter: 500 mm, The offer consists of the following components: VL-770 Probe Head – High-resolution optical 3D scanner VL-700 Control Unit – Control and evaluation unit, including software interface VL-C35 Cover – Light protection hood VL-A3D Software Package – Measurement and evaluation software (German) OP-88145 Calibration Plate – Reference plate VL-H3G Module – Geometric dimensioning and tolerancing (GD&T) module VL-H3R Module – CAD conversion module VL-B1 Accessory – Calibration ball gauge OP-99031 Cable – AC power cable TECHNICAL DETAILS Repeatability (σ): 2 µm Measurement accuracy: ±10 µm Measurement resolution: 9 million measurement points Measuring range Low magnification: Ø300 × H200 mm High magnification: Ø70 × H50 mm Work Table Rotary table: 500 mm Rotation mechanism: 360° XY movement of object stage: Ø200 mm Tilting mechanism: up to 45° Maximum load capacity: 50 kg Nwedpfx Agsy Eglqs Djf MACHINE DETAILS Weight Weight of control unit: 3.7 kg Weight of object table: 26 kg Weight of cover: 5.5 kg Weight of measuring unit: 19.6 kg EQUIPMENT Original software and manuals Calibration plate Protective hood Monitor, PC, keyboard, and accessories

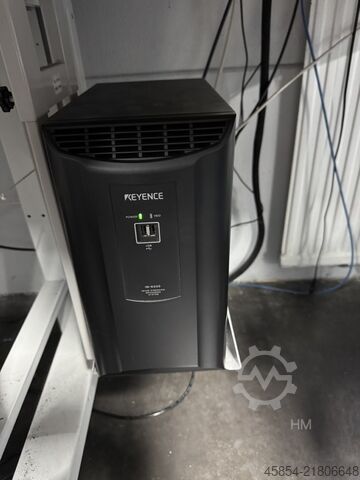

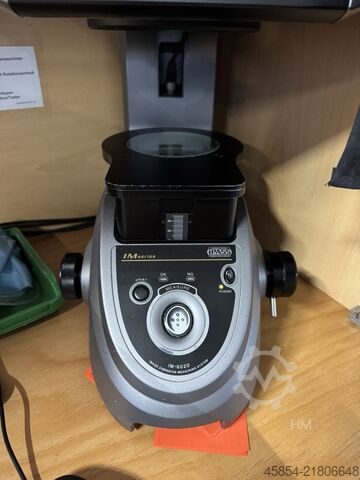

Condition: used, Year of construction: 2012, machine/vehicle number: IntNr231474, KEYENCE Model Series IM-6020, Year of Manufacture 2012 For sale is an optical measuring machine, KEYENCE IM-6020, in good, fully functional condition. The IM series is recognized for fast, high-precision, and operator-independent measurement, making it ideal for use in quality assurance, goods-in inspection, and production monitoring. Technical specifications (overview): Model: IM-6020 Year of manufacture: 09/2012 Measuring principle: Optical / non-contact Measuring range (X/Y): approx. 200 × 200 mm Measuring range (Z): Height measurement via autofocus Measuring accuracy: up to approx. ±2 µm (depending on measurement conditions) Repeatability: Very high, operator-independent Camera: High-resolution CCD camera Illumination: Incident light / transmitted light / contour illumination Measuring functions: - Length, angle, radius, and diameter measurement - Contour and form measurement - Comparative measurement (OK/NOK) - Automatic dimension recognition Software: KEYENCE IM software for quick program creation Measuring time: A few seconds per component (even for multiple features) Nwodpfx Aey Htv Eeg Dof Condition: - Used - Well maintained - Fully operational - Ready for immediate use Machine dimensions: approx. 900 x 500 x 1500 mm Machine weight: approx. 32 kg The machine can be inspected by appointment. Subject to prior sale and changes or inaccuracies in the technical data and specifications.

Condition: ready for operation (used), Year of construction: 2020, An optical CNC 3D coordinate measuring machine Keyence is available. Display resolution: 0.1µm, repeatability: 2µm, measurement accuracy: +/-10µm, low magnification: 300mm/200mm, high magnification: 70mm/50mm, max. load capacity: 20kg, weight: approx. 30kg. Documentation available. An on-site inspection is possible. Nsdpfoy Hk Tbox Ag Dowf

Condition: used, Scope of delivery see photos Technical data see PDF file * Nwodpsvucgqofx Ag Djf

Condition: used, Year of construction: 2020, functionality: fully functional, measuring range X-axis: 3,000 mm, measuring range Y-axis: 3,000 mm, total height: 400 mm, total width: 800 mm, total length: 800 mm, overall weight: 50 kg, input voltage: 220 V, Equipment: documentation/manual, type plate available, Mobile coordinate measuring system KEYENCE WM-3000 (Wide Area Coordinate Measuring Machine). The system was delivered in November 2020 and is in well-maintained, fully functional condition. This is a complete measuring system including accessories, software, and transport cases. Scope of delivery • WM-3000 measuring head • WM-P3000 probe • WM-C3000 control/camera module • WM-S1 camera tripod • 3x WM-B1 batteries • WM-BC1 charger • OP-99032 power cable • Laptop with installed WM measuring software • Transport cases • Calibration certificate (09/2020) • Inspection report (Inspection Result) Condition • Fully functional • Visually well-maintained • Calibration from 09/2020 (factory recalibration recommended) • Sold from ongoing operations Nsdpey E Rv Hsfx Ag Dowf The WM-3000 is an optically guided 3D coordinate measuring system for large-volume measurement of components in the range of 300 mm to 3,000 mm. Measurement is performed using an active probe with camera tracking. Suitable for manufacturing, toolmaking, plant engineering, and quality assurance.

Condition: like new (used), Year of construction: 2021, operating hours: 300 h, Prices upon request XG x 2800 5x Ca E200L 4x CA Dc 40 e The system was used for only 90 days and is in as-new condition. The XG-X2800LJ is a 2D/3D laser profile sensor from the LJ-V7000 series by KEYENCE Germany. This advanced image processing system offers enhanced features and flexibility for demanding inspection applications. Technical Data: Laser Scanner / Profile Measurement: The XG-X2800LJ is specifically designed for profile measurement and 2D/3D image processing. Compatibility: It is compatible with line-scan cameras, LJ-V sensors, and 21-megapixel cameras. Flowchart-Based Programming: The XG-X is intended for advanced users, enabling programming in a flowchart style. Manuals and Software: User manuals and software are available for configuration and customization via PC, as well as for remote control and capturing images and results on a PC. Please note that any shown accessories are for illustrative purposes only and may not be included with the product. For more information, please visit the official KEYENCE website. If you have further questions or require assistance, I am happy to help! Nwedpfx Ager Rddzs Dsf

Condition: as good as new (ex-display), Year of construction: 2021, operating hours: 50 h, functionality: fully functional, Image processing system consisting of 5 million pixel B/W camera ( model number CA-H500M) and image processing controller (model number XG-X1500). The set includes cables and a white backlight (model number CA-DSW30). Type: Camera*1 Image pickup element:2/3" B/W CCD image receiving element, 11x high-speed square pixel capture, 5,050,000 pixel Cell size 3, 45 x 3, 45 µm Valid pixel count:4,990,000 pixels 2432 (H) x 2050 (V) Pixel transmission speed: 130 MHz (65 MHz x 2 channels) Scanning system: Full frame (61.2 ms), interlaced (40.3 ms) Nodpfxjmza Ile Ag Dswf Transmission system: Digital serial transmission Electronic shutter: 1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000, 0.05 ms to 9000 ms can be set with numerical values. Lens mount: C screw mount

Year of construction: 2018, condition: ready for operation (used), number of axes: 2, Optical measurement machine manufactured in 2018. This KEYENCE IM 7030 features a field of view dimension of 300 x 200 x 150 mm and offers advanced software capabilities including series measurement, statistics/analysis, and automatic measurement. If you are looking to get high-quality optical measurement capabilities, consider the KEYENCE IM 7030 machine we have for sale. Contact us for further details. • System type: Image dimension measuring system • Field of view dimensions: 300 × 200 × 150 mm Nwodpfxey Enfle Ag Def • Software capabilities: series measurement; measurement settings; statistics/analysis; single measurement; automatic measurement

Condition: like new (used), functionality: fully functional, measuring range X-axis: 190 mm, measuring range Y-axis: 190 mm, overall weight: 33 kg, workpiece weight (max.): 7 kg, travel distance X-axis: 200 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 75 mm, repeat accuracy: 0.002 mm, The measuring projector features a standard digital measuring mode: 300 mm × 200 mm (4× R50) and a precision measuring mode: 225 × 125 mm. It is equipped with a height sensor and a photo sensor. Accessories include a flat stylus, power cable, and control unit. A mouse and keyboard are also included in the scope of delivery. • Measuring head: Digital measuring projector with 300 x 300 mm measuring field • Light barrier • Height sensor • Display: 10.4" (XGA: 1024 × 768) Nwsdpfx Aey Edt Ejg Dof • Image sensor: B/W CMOS, 1", 6.6 megapixels • Lens system: Double telecentric lens • Flat stylus • Hard drive: 500 GB Price: €25,000 net for the device only Price: €26,000 net with table

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: Y5061080272, total width: 500 mm, total length: 600 mm, total height: 600 mm, overall weight: 20 kg, No reserve price – guaranteed sale to the highest bidder! Placing a bid commits you to timely collection between 23/06/2026 and 26/06/2026! TECHNICAL DETAILS Nodpjy D R D Uefx Ag Dewf Lens diameter: 120 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 600 x 500 x 600 mm Machine weight: 20 kg External reference: 58
