3D Coordinate Measuring Machine

Keyence XM-M1200

Condition: excellent (used), Year of construction: 2020, Very well-maintained measuring system from Keyence. Type: XM-M1200 (XM-C1000) with PC XM-1500 Year of manufacture: approx. 2020 Ledpfx Ajxgq Amjkyorn #8385

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 240 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 7.5 [kW] - C axis indexing precision : 0.1 [°] Ljdpfx Aeuhax Eokyjrn COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 6000 [rpm] GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of working hours : 56.433 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2,S3,S5 V+H - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump - Number of turning tool holders : 3 - Number of fixed tool holders : 7

Condition: like new (used), Year of construction: 2020, functionality: fully functional, For sale is a measuring system from Keyence, type XM- C1000 The measuring system is something special, as the points to be measured are scanned by hand Very user-friendly and intuitive system. Compact and easy to maintain Control unit and PC XM-1600 are included in the offer Also Measuring probe, exchangeable probes, alignment station, various clamping devices Clamping vice Mouse Touch probe Operating instructions On request, transport and loading can be organized throughout Europe for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Lsdpfsrq Ebiox Akyjrn Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: ready for operation (used), Year of construction: 2014, spindle speed (max.): 8,000 rpm, number of axes: 9, This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information. • Control: TRAUB TX8i-s CNC/PLC with 64-bit RISC processor and fiber-optic PC; color TFT flat-panel display; electronic handwheel • Software/extensions included: Polyform (C-axis programming), Helical (3D Y-axis interpolation), tapping without compensating chuck, parting tool breakage monitoring, parting tool ejection monitoring, axis shutdown, T-ATC • Main spindle: Motor spindle with hollow clamping system; 32 mm bore/bar capacity; C-axis max speed 8,000 rpm • Max stroke: 305 mm (L version) / 127 mm (K version) • Sub-spindle: Partial hollow clamping, C-axis; cleaning unit mounted on lower tool turret • Upper tool turret: X/Y/Z/H/B axes; 10 tool holders; dual drive • Lower tool turret: X/Y/Z/H axes; 9 tool holders; combined drive; separate counter-spindle operation • Measuring/feedback: Glass scales on X-axis (upper and lower turrets); rotary encoder on C-axis • Back working: 8-position back table with combined drive for up to 3 tools; prepared for internal coolant supply • Clamping: Clamping direction reversal device and counter clamping pressure device on main and counter spindles • Coolant system: Standard system with 3-bar and 8-bar pumps (50 Hz) in a 500-liter tank; additional 28-bar pump (50 Hz), 19 l/min flow rate • Extraction: Connection D 150 mm for central extraction Additional equipment Lodpfx Akex D Drceysrn • None specified (no robots, bar feeder, chip conveyor, or external automation listed)

Condition: good (used), Year of construction: 2015, Main and counter spindle 3 turrets Backside machining Fire extinguishing system Kraft & Bauer Lredoyx Tk Tjpfx Akyjn High-pressure system Büchele Bar feeder FMB Turbo 2-20

Condition: good (used), Year of construction: 2013, operating hours: 35,500 h, functionality: fully functional, Equipment: documentation/manual, CNC Swiss-type lathe Make: STAR Model: SV-32 Year: 11/2013 with: FANUC 16i TB control backside machining synchronous spindle turret Ljdpfxoyu Nqye Akyjrn driven tools C-axis high-pressure pump fire extinguishing system chip conveyor bar feeder magazine FMB TURBO 3-36

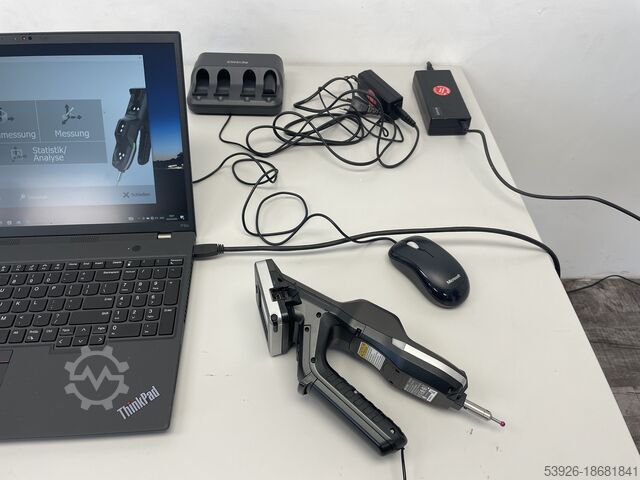

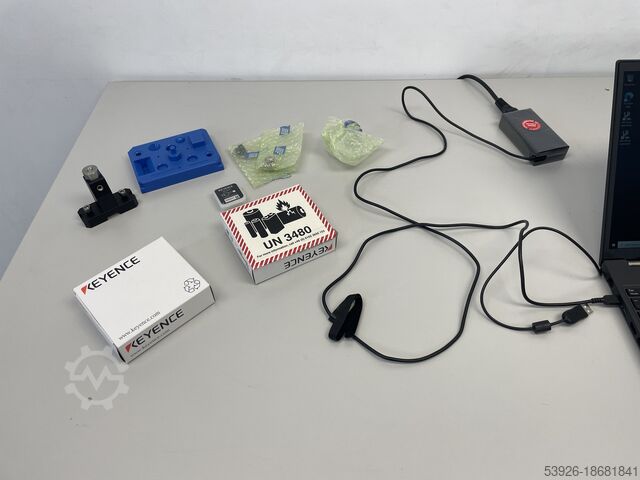

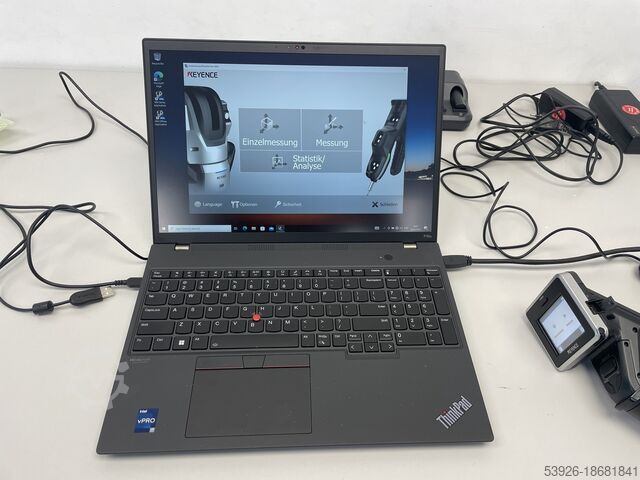

Year of construction: 2021, condition: like new (used), Mobile 3D coordinate measuring machine Keyence WM-3000 Like new machine, sold because of new purchase Technical data available at manufacturers website Ljdpfx Aksmrrb Seysrn Visit possible in 47877, Willich GERMANY

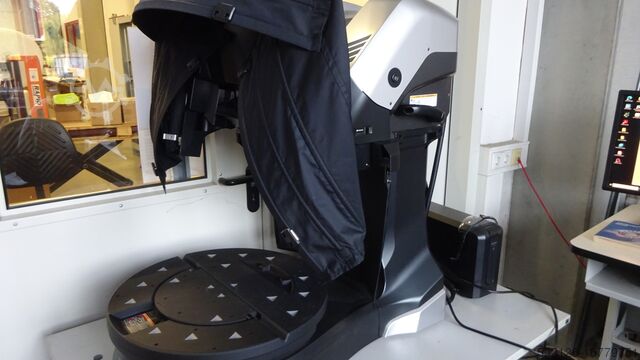

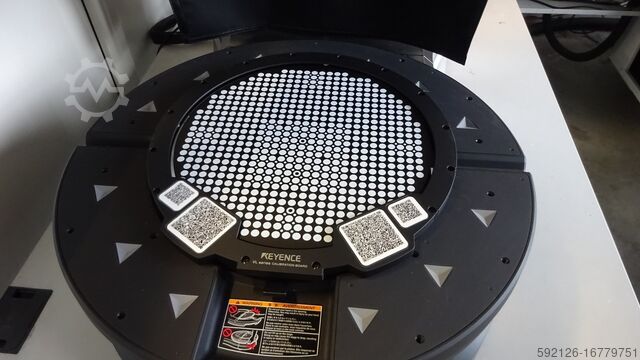

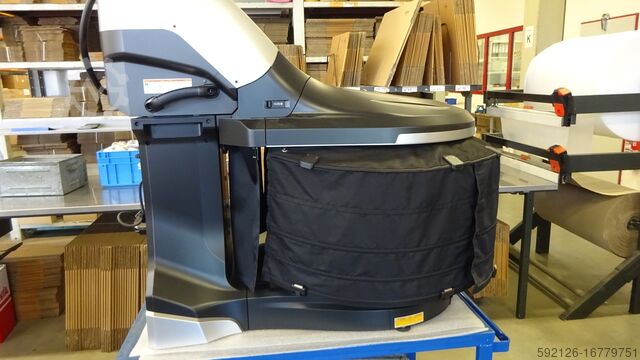

Condition: new, Year of construction: 2024, operating hours: 15 h, functionality: fully functional, type of input current: AC, input voltage: 240 V, measuring range X-axis: 580 mm, measuring range Y-axis: 300 mm, measuring range Z-axis: 200 mm, total width: 579 mm, total length: 916 mm, total height: 844 mm, overall weight: 45 kg, workpiece weight (max.): 50 kg, VL-770 3D measuring system with motorized rotary table Ø500mm - VL-770 measuring head Lsdpfx Aovzqp Hjkyern - VL-700 control unit - 500mm object table VL-750 - Measuring range with composition up to Ø500mm or 580x300mm - Cover (light shielding) - Software package (German) - Calibration plate - Software module for form and positional tolerances - Software module for CAD conversion Full description available in the brochure

Condition: new, Year of construction: 2025, The machine on offer is a new stock machine. We will be happy to provide you with a suitable quotation. Lsdsychtpspfx Akyorn

Condition: ready for operation (used), Two Keyence optical LED light-band micrometers are available. Repeatability: +/-0.03µm, sampling rate: 16000 measurements/s, light source: green InGaN LED. Documentation available. On-site inspection is possible. Lredpfx Aksv R Exueysn
