Eccentric press

KIESERLING

Condition: used, Straightener & polishing machine WRPT2, manufactured by KIESERLING Bars diameter : 10 - 35 mm Bars length : 3 - 6 m Scope of delivery includes : 1. Infeed pinch-roll with Bedpfx Asymcm Esh Ield - Motorised bottom roller - Vulkollan upper roller 2. WRPT2 straightening machines, made KIESERLING with - 2-roller straightener with upper roller height adjustment and upper/lower angle adjustment - Two geared motors with cardan shaft drive - Infeed guide - Side guide support - 1 set of side guides 3. Outfeed pinch-roll with - Motorised bottom roller - Vulkollan upper roller 4 Electric control panel with manual movement buttons Bars diameter: 10 - 35 mm Bars length: 3 - 6 m

Condition: used, Bar straightener WRPF 35-50, made by KIESERLING Bar diameter : 8 - 50 mm Speed : Up to 50 m/min Scope of supply includes : - Bar Loading channel - Input pinch-roll - Straightening machine WRPF35 - Exit pinch-roll - Bar Output channel - Electric equipment. (Option: NEW with HMI control desk) - Existing spare parts - Documentation Blsdpfxeymcmrj Ah Isd - Optional: Loading table - Optional: Unloading cradle Bar diameter: 8 - 50 mm Speed: Up to 50 m/min

Year of construction: 2025, condition: refurbished (used), Complete peeling line WDHF35/50/75 AS NEW, revamped & tested in our workshop. Function and h9 tolerance guaranteed. Working range Entry diameter: 7 - 38 mm Finishing diameter: 6 - 35 mm Bar length min.: 2,9 m (3,2 m at max. feeding speed) Bar length max.: 6,5 m Feeding speed: 4 - 50 m/min progressively adjustable Cutting head RPM: 675 / 1330 / 4500 rpm progressively adjustable Scope of supply KIESERLING WDHF 35/50/75 as described above, composed by: - Entry roll conveyor - Feeding rolls - Peeling machine - Exit carriage - New output pinch-roll Blodpoymb Uujfx Ah Isd - Exit channel - Revamping in our workshop - New hydraulic system - New lubrication system - New pneumatic - New electrical equipments - New complete set of tooling & consumables SAAR-HARTMETALL - Optionnal: Laser diameter control system for tool correction Entry diameter: 7 - 38 mm Finishing diameter: 6 - 35 mm Minimum bar length: 2,9 m (3,2 m at max. feeding speed) Maximum bar length: 6,5 m Feeding speed: 4 - 50 m/min progressively adjustable Cutting head RPM: 675 / 1330 / 4500 rpm progressively adjustable

Year of construction: 2017, condition: refurbished (used), Tube pointing machine AVS-25, made by KIESERLING - Initial diameter : 15 - 75 mm - Pointed diameter : 10 - 50 mm - Force : 25 tons - Cycles per minute : 800 Blsdjymacwspfx Ah Isd - Introduction speed adjustable without steps : 0 – 70 mm/s - Model of introduction duo : R25 - Tools : Rotating hammers Model of introduction duo: R25 Tools: Rotating hammers

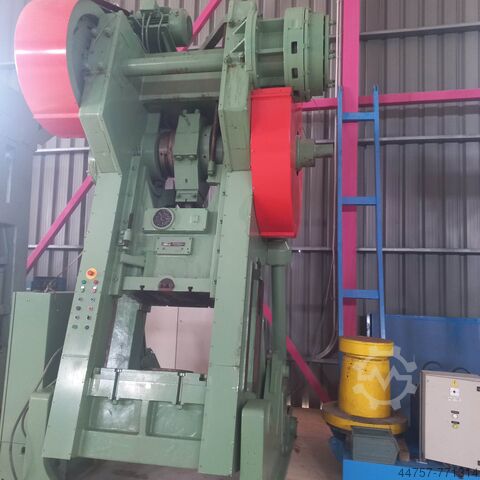

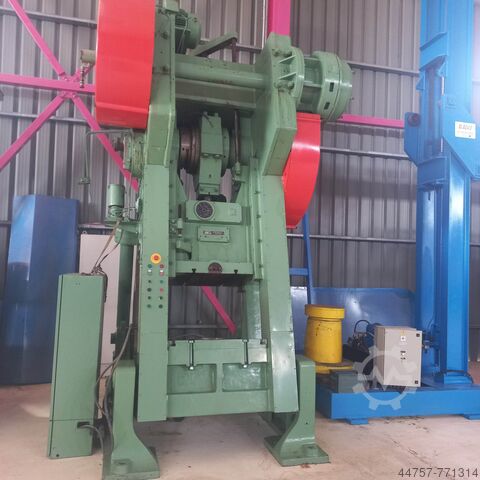

Year of construction: 1990, condition: ready for operation (used), Press force: 100t, throat depth: 320mm, table dimensions X/Y: 850mm/610mm, ram dimensions X/Y: 600mm/355mm, stroke range: 10mm-130mm, ram adjustment: 80mm, stroke rate: 56rpm, installation height: 300mm, machine dimensions X/Y/Z: approx. 1900mm/1900mm/3150mm, weight: approx. 9000kg. On-site inspection is possible. Bsdpsyiflmefx Ah Ield

Condition: used, Year of construction: 1981, functionality: fully functional, machine/vehicle number: M08I/8625, Offer Number: M08I/8625 Machinetype: 4 die - 4 blow transfer header Info: bushing cut-off , PKO Make: KIESERLING Type: K54 Constr. year: 1981/2011 diameter range: 8-22 mm number of dies: 4 number of stations (incl. cut off): 5 Bljdpsygv Ayofx Ah Isd output - pieces/min: 105 shaft length under head: 155 mm cutting length: 175 mm press power: 250 to Location: Germany

Condition: used, Year of construction: 1990, From the Gütersloh site we offer a well-maintained eccentric press Pressure 100 t Displacement 330 mm Hub 10-130 mm Speed 56 RPM Eccentric adjustment 80 mm Blsdpfxeyglzfs Ah Isd Table surface 830x600 mm Piston face 250x130 mm Table height 870 mm Taper hole in the piston 50 mm Machine weight approx. 11 t Space requirement approx. WxDxH 2100x1900x3000 mm

Condition: refurbished (used), Tube Straightener VRM60/75, made by KIESERLING Bodpfjvtpghex Ah Isld Tube diameter : 8 – 60 or 14 - 75 mm Tube length : Depending on accessories (loading table, channels). Minimum 0.5m The ratio diameter/thickness depends on the yield. Strength Example: - 300 N/mm2 = Max. 6.5mm - 400 N/mm2 = Max. 5.7mm - 500 N/mm2 = Max. 5.1mm - 600 N/mm2 = Max. 4.7mm *The first 4 photos are examples of revamping of similar machines that we can offer in case of interest. The following are pictures of the machine in its current state. Tube diameter: 8 – 60 or 14 - 75 mm Tube length: Depending on accessories (loading table, channels). Minimum 0.5m

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, Eccentric Press Manufacturer: Kieserling Model: Pedru 100 / 320 Year of Manufacture: 1988 Blsdpfx Ahjx U Tvbo Iod Table Size: 850 x 610 mm Clear Space between Uprights below Guideways: 400 mm Ram Length: 600 mm Ram Width: 355 mm Ram Bore: 50 x 85 mm Continuous Stroke Rate: 56 strokes/min Tool Height: 300 mm Installation Height: 310 mm Table to Ram Distance at Max Stroke: 310 - 520 mm Table Thru-Hole: 335 / 300 mm diameter x 45 mm Stroke Range: min. 10 mm - max. 130 mm Bore Length: 126 mm Table Plate Thickness: 90 mm Ram Adjustment: 80 mm Drive Capacity: 11 kW / 1500 rpm Weight: 9000 kg Floor Space Required: 1900 mm Height: 3150 mm Shearing Mechanism in Ram, Two-Hand Control, Additional Brake

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, Eccentric Press Manufacturer: Kieserling Model: Pedru 100 Year of manufacture: 1988 Table size: 850 x 610 mm Ram length: 600 mm Ram width: 355 mm Clearance below guides: 400 mm Ram length: 600 x 355 mm Ram hole: 50 x 85 mm Installation height: 310 mm Tool height: 300 mm Distance table to ram at max. stroke: 310 - 520 mm Table through-hole: 335 / 300 mm diameter x 45 mm Table plate thickness: 90 mm Stroke min.: 10 mm – max.: 130 mm Hole length: 125 mm Ram adjustment: 80 mm Power: 11 kW / 1500 rpm Weight: 9000 kg Floor space required: 1900 mm Height: 3150 mm Shearing device in ram, two-hand operation, additional brake Bledpjx U Tp Usfx Ah Isd
