Hydraulic cutting shear swing cut

KK-Industries Tafelscher KK kletzer SW 3200 x 16 mm

Condition: new, functionality: fully functional, Year of construction: 2026, control type: PLC-controlled, degree of automation: automatic, actuation type: hydraulic, controller manufacturer: ESTUN Automation, controller model: E21S, working width: 3,200 mm, cutting angle (min.): 1.5 °, cutting angle (max.): 1.5 °, stroke rate (min.): 10 1/min, stroke rate (max.): 10 1/min, sheet thickness (max.): 10 mm, sheet thickness aluminum (max.): 10 mm, sheet thickness brass (max.): 10 mm, sheet thickness copper (max.): 10 mm, sheet thickness steel (max.): 10 mm, sheet thickness stainless steel (max.): 6 mm, table height: 800 mm, back gauge adjustment: motor-driven, back gauge: 600 mm, back gauge travel distance R-axis: 600 mm, input voltage: 400 V, type of input current: three-phase, oil tank capacity: 200 l, overall weight: 10,000 kg, total length: 4,050 mm, total width: 2,050 mm, total height: 1,950 mm, warranty duration: 12 months, Equipment: CE marking, angle stop, centralized greasing system, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, type plate available, HYDRAULIC GUILLOTINE SHEAR 10 × 3200 ESTUN E21S Controller and Illuminated Cutting Line This hydraulic guillotine shear is designed for accurate straight-line cutting of sheet metal and strips made from steel, non-ferrous metals and other compatible materials. With a maximum cutting capacity of 10 mm and a working length of 3200 mm, it is a powerful solution for fabrication workshops and industrial production facilities. The machine combines a robust hydraulic system with a motorized back gauge and ESTUN E21S controller, providing quick and repeatable positioning. The illuminated cutting line helps the operator align each workpiece accurately before cutting. Hydraulic hold-downs secure the sheet along the entire cutting length. Ball transfer units integrated into the table simplify the positioning of large and heavy sheets while helping protect their surfaces. Front support arms and a front gauge with measuring scale provide additional support and improve accuracy during repeat work. The segmented blade design allows an individual damaged section to be replaced instead of the complete blade, helping reduce maintenance costs. Adjustable blade clearance enables the machine to be configured for different sheet thicknesses and materials. TECHNICAL DATA • Maximum sheet thickness: 10 mm • Maximum cutting length: 3200 mm • Blade rake angle: 1°30′ • Cutting frequency: 10 strokes/min • Back-gauge travel: 600 mm • Distance between side frames: 3450 mm • Blade length: 3300 mm • Table height: 800 mm • Motor power: 15 kW • Weight: 10,000 kg • Dimensions (L × W × H): 4050 × 2050 × 1950 mm • Controller: ESTUN E21S • Cutting-line indicator: Illuminated STANDARD EQUIPMENT • Motorized back gauge • Ball-guided back-gauge system Bjdeyt Itqspfx Ai Tsdi • Hydraulic sheet hold-downs along the full cutting length • Segmented, individually replaceable blades • Blade-gap adjustment • Ball transfer units on the worktable • Front material-support arms • Front gauge with measuring scale • Front and rear safety guards • Foot-control pedal • ESTUN E21S controller • Illuminated cutting line CONDITION, WARRANTY AND DOCUMENTATION • Brand-new machine • 12-month warranty • Warranty and post-warranty service • CE Declaration of Conformity • Operating and maintenance manual in English This guillotine shear combines high cutting capacity, straightforward control, accurate sheet positioning and practical safety equipment. It is suitable for general fabrication work and repeat industrial production. Delivery can be arranged throughout Europe and beyond. Transport costs are calculated individually according to the destination. Please provide the delivery address or postal code to receive a quotation. Please visit our website to view our other available metalworking machines.

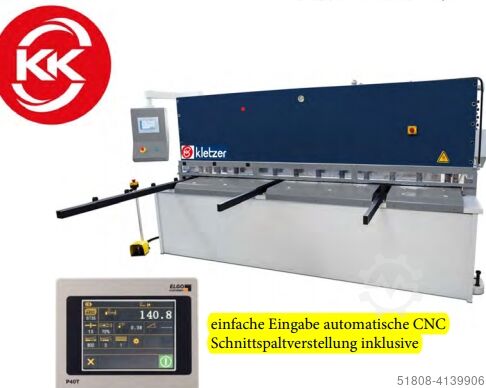

Condition: new, sheet length: 4100sheet thickness: 13,0total power requirements: 30weight approx.: 15500messurements (LxWxH): 4120x2240x2235 Our strong brand KK Kletzer                    TAFELSCHER Vibration cut version Model SWT has everything you need for cutting.  We have also raised the standard in the vibration cutting design and deliver ours as well  Plate shears with automatic cutting adjustment via the touchscreens Control ELGO P40T without surcharge.  NC slotted table shears KKI Technological advantages Fast and precise cuts Stable,  durable frame construction Automatic kerf adjustment Easy handling Low maintenance costs High safety standard Use of components from well-known manufacturers Low unit costs   Technical specifications:  Sheet thickness: 13 mm  Cutting length: 4,100 mm Bsdpsd Tm Rcjfx Ai Tedi Cutting angle: 2.3 °  number of hold-downs 19  Backgauge: 1,000 mm via CNC  Motor power: 30 kW  Strokes per minute 8  Projection: 50 mm  Length: 5120 mm  Width: 2240 mm  Height: 2235 mm  Weight: 15500 kg  • Stable swing cut design Cutting gap adjustment via the control - backgauge - kerf - Cutting length  • Ball screws for the back gauge • balls in the table  • Side stop 1,500 mm • 2 pcs. Support arms 1.000 mm  • Cut line lighting • Foldable up to 1,000 mm finger protection  Option:  pneumatic sheet support, EURO 4.900, -  We have many references!

Condition: used, Year of construction: 2000, sheet length: 4.100sheet thickness: 12total power requirements: 30weight approx.: 17350messurements (LxWxH): 4750 x 3400 x 2350back gauge: 1000New Price: approx. 100,000 EURO Condition: Used, very good condition Equipment: - Swing cut execution - NC preset control ELGO for rear gauge - Motorized rear gauge up to 1,000 mm on ball screw spindles, foldable Bdsdpfx Aijwiatve Tsi - Clearly arranged control panel mounted on a swivel arm - Hydraulic hold-downs positioned close to the cutting edge - Footswitch - Central manual cutting gap adjustment Accessories: - 1 side fence 1,500 mm with scale, T-slot, and tilting bolt - 2 sheet metal support arms 1,000 mm with T-slot - Easy replacement and resharpening of the blades - Adjustable cutting length for efficient processing - Lower blade 4-fold reversible - Upper blade 2-fold reversible Additional Details: - Operating manual in GERMAN - Machine and equipment comply with CE regulations

Condition: ready for operation (used), Year of construction: 2009, overall weight: 13,000 kg, total width: 3,000 mm, total height: 2,200 mm, cutting length (max.): 3,060 mm, product length (max.): 4,000 mm, CNC shearing machine manufactured in 2009. This Baykal HNC 3100x13 features a cutting capacity of 13 mm and a cutting length of 3,060 mm. It is equipped with a powerful 30 kW motor and operates at a working pressure of 260 bar. If you are looking to get high-quality shearing capabilities, consider the Baykal HNC 3100x13 machine we have for sale. Contact us for further details. • Cutting Capacity (St42): 13 mm Bodozc Rgxepfx Ai Tedi • Power Supply: 380 V / 50 Hz / 3 Ph • Motor Power: 30 kW • Working Pressure: 260 bar • Strokes per Minute: 14

Condition: used, Year of manufacture: 1986 Cutting bench, cutting shear Type: Hydraulic Bjdpfx Aijwnh Ncj Tsdi Manufacturer: Darley Type: GS 3100x13 Year: 1986 Control: Conventional Cutting width: 3100mm Cutting thickness: 13mm Electric Backgauge Motor-power: 22kW Incl. frontloader-arm Total dimensions: 3750x1900x2150mm Machine-weight: 10000kg - Year: 1986 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: like new (used), functionality: fully functional, CMU Shear 3000 x 8/10 Bdsdpfx Aiey R Diwj Toi Model 2E0 6/30 Motorized Backgauge Blade Angle Adjustment Used Machine Internal Code: SER 63

Condition: used, Year of construction: 2000, sheet length: 4100sheet thickness: 12total power requirements: 30weight approx.: 17350messurements (LxWxH): 4750 x 3400 x 2350back gauge: 1000Stroke/min: 8 Equipment: - Swing cut execution - NC preset control ELGO for rear gauge - Motorized rear gauge up to 1,000 mm on ball screw spindles, foldable Bdjdpfxezd H U Hj Ai Toi - Clearly arranged control panel mounted on a swivel arm - Hydraulic hold-downs positioned close to the cutting edge - Footswitch - Central manual cutting gap adjustment Accessories: - 1 side fence 1,500 mm with scale, T-slot, and tilting bolt - 2 sheet metal support arms 1,000 mm with T-slot - Easy replacement and resharpening of the blades - Adjustable cutting length for efficient processing - Lower blade 4-fold reversible - Upper blade 2-fold reversible Additional Details: -
