KLINGELNBERG HSS 350 – CNC gear and wormKLINGELNBERG
HSS 350
Machine data
- Machine type:
- KLINGELNBERG HSS 350 – CNC gear and worm
- Manufacturer:
- KLINGELNBERG
- Model:
- HSS 350
- Condition:
- ready for operation (used)
- Functionality:
- fully functional
Price & Location
- Location:
- POLIGONO INDUSTRIAL DE ITZIAR, PARCELA C2, Deba, ES
- Rental:
- is possible
Technical details
- Metric thread pitch (max.):
- 500 mm
- Metric thread pitch (min.):
- 1 mm
- Grinding length:
- 500 mm
- Grinding wheel diameter:
- 500 mm
- Rotational speed (min.):
- 1 rpm
- Metric thread diameter (min.):
- 10 mm
- Rotational speed (max.):
- 26 rpm
- Metric thread diameter (max.):
- 350 mm
- Clamping length:
- 1,200 mm
- Grinding wheel width:
- 60 mm
- Spindle speed (max.):
- 26 rpm
- Spindle speed (min.):
- 1 rpm
- Grinding spindle speed:
- 3,000 rpm
- Grinding spindle motor power:
- 12,000 W
- Grinding diameter:
- 350 mm
- Grinding wheel speed:
- 3,000 rpm
- Type of input current:
- three-phase
- Center width:
- 150 mm
- Equipment:
- rotational speed infinitely variable
Details about the offer
- Listing ID:
- A674-9401
- Update:
- 27.05.2025
Description
High-precision CNC grinding machine, perfect for gears, worm screws, and custom parts. Fully functional and ready to use.
🛠 Key technical specifications:
• Workpiece diameter (max./min.): 350 mm / 10 mm
• Clamping head bore diameter: 130 mm
• Max. distance between centers:
• With front centering tip: 750 mm
• With rear centering tip: 1200 mm
• Max. workpiece length: Unlimited
• Max. shaft diameter (left/right): 130 mm / 150 mm
• Max. grinding length: 500 mm
• Max. number of gear teeth: 30
• Module (max./min.): 25 / 0.5
• Pitch (max./min.): 500 / 1 mm
• Pressure angle (max./min.): 30° / 0°
• Max. helix angle: 45°
⚙️ Grinding System Features:
• Grinding wheel diameter (max./min.): 500 mm / 300 mm
• Grinding wheel speed (stepless): 75 – 3000 rpm
• Max. cutting speed: 45 m/s
• Drive motor power: 12 kW
• Workpiece spindle speed (stepless): 1 – 26 rpm
📐 Grinding Wheel Widths:
• For thread grinding: 15 mm
• For worm screws up to module 12: 25 mm
• For module 12 to 20: 40 mm
• For module 20 to 25: 60 mm

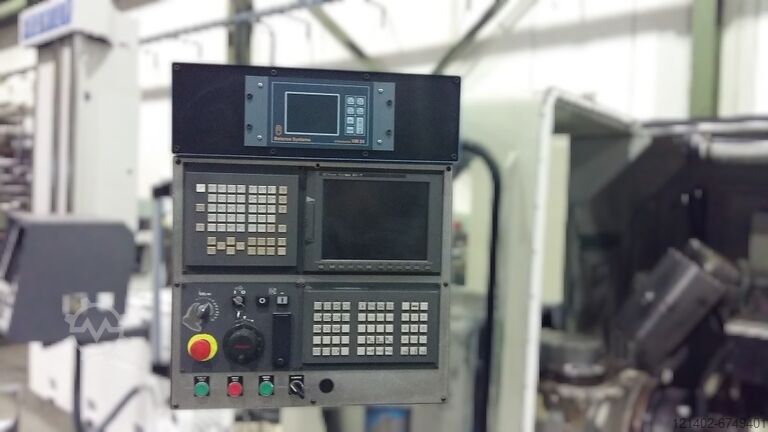

💻 CNC Control: FANUC Series 21-It
Cjdjhq Uh Hopfx Abwehc
✅ Ideal for:
• Gear manufacturers
• Worm screw production
• Precision machining workshops
• Industrial machinery repair
📌 Limited-time offer due to machinery update
Take advantage of this opportunity to acquire a high-performance CNC grinding machine with professional specs and immediate availability!
