Gear Testing Machine

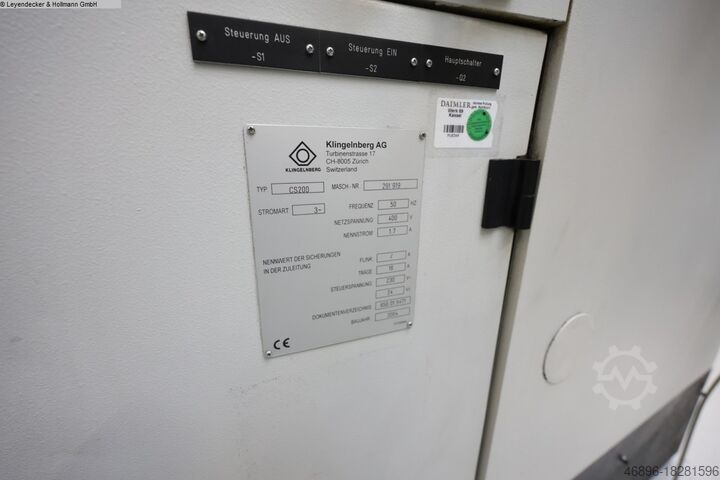

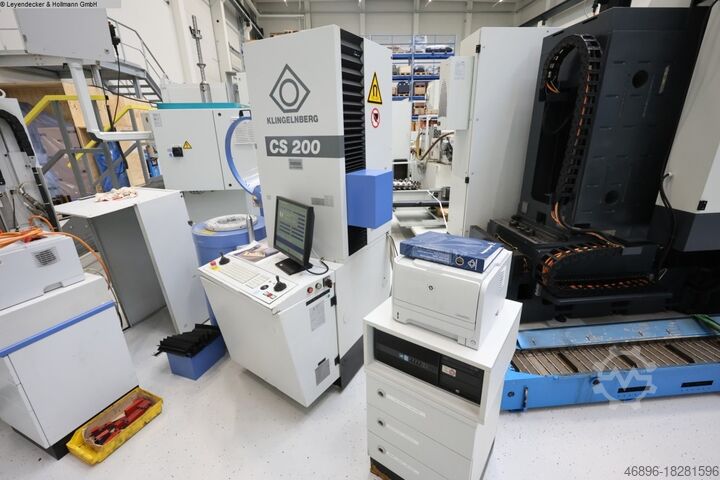

KLINGELNBERG-OERLIKON CS 200

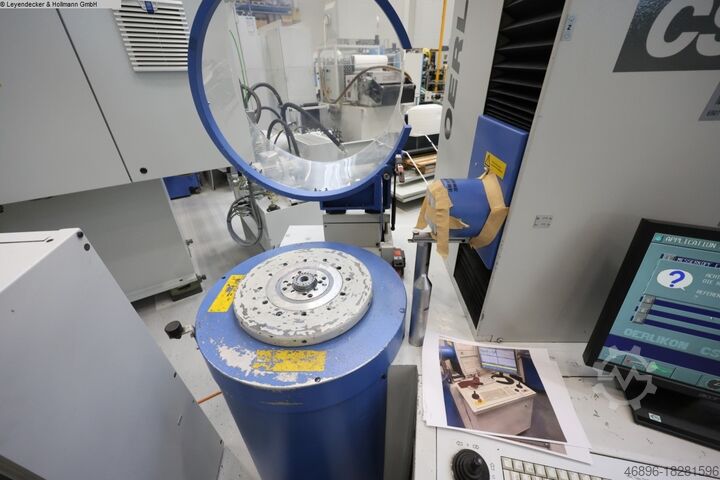

Year of construction: 2004, condition: used, z-travel 200 mm clamping diameter of cutter heads max. 550 mm max. permissible cutter head weight 150 kg mounting plaute diameter for cutter heads 360 mm taper for cutter heads, nominal diameter 500 mm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m Cutter Head Set-Up- and -Measuring Machine In the manufacturing process for spiral-toothed bevel gears, the quality of Gedpsvq Sd Rsfx Aa Isil the gear cutting gear cutting tools used plays a decisive role. Particularly in dry milling, high gear cutting quality and a long service life can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Year of construction: 2018, condition: ready for operation (used), A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible. Giodpfx Aajw Rqwae Iol

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t Giodpjul Efmofx Aa Ijl dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator Giodpfexb Ufuox Aa Isl

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a External cylindrical grinding machine EMAG Weiss WPG 7 - external cylindrical grinding at the highest level and on the smallest footprint. Footprint of the WPG 7 is only 1,800 x 2,400 mm. The machine is perfect for machining small shafts or pinions. The WPG 7 can be loaded manually as well as by automated solutions (such as chain conveyors and linear gantry). CONTROL Fanuc 0i TECHNICAL DATA Workpiece length: max. 250 mm grinding Ø: max. 80 mm Center height: 100 mm Center length: 380 mm Workpiece weight: max. 30kg Grinding wheel Ø: max. 500x 80 mm Price, delivery time and equipment of the machine according to agreement. Giedpfx Aetlrkbea Iol

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Giedpfx Asw T Tb Hja Ijl Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Condition: good (used), cylindrical grinding machine Gjdpfx Aaotrgndj Isil

Condition: ready for operation (used), Centre height: 175mm, centre width: 1000mm, max. external grinding diameter: 350mm, max. grinding length: 1000mm, max. workpiece weight: 130kg, grinding wheel dimensions X/Y/Z: 400mm/80mm/127mm. Machine dimensions X/Y/Z: approx. 2700mm/1700mm/1700mm, weight: approx. 3300kg, operating hours: approx. 21315h. An on-site inspection is possible. Giodpfxew Dfhbo Aa Iol

Condition: good (used), Year of construction: 2008, Gear grinding machines Reishauer RZ303 Gisdpoxz E S Eefx Aa Iel

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 100 kg, wheel width: 400 mm, grinding wheel diameter: 400 mm, helix angle: 45 °, table diameter: 180 mm, table load: 100 kg, wheel diameter: 400 mm, overall weight: 10,000 kg, travel distance Z-axis: 660 mm, Equipment: documentation/manual, CNC Gear Grinding Machine HOFLER HELIX 400KK Diameter-Ø max: 400mm Dimeter-Ø min: 10mm Number of teeth variable Profilhöhe max: 35mm Modul: 1-10 Grinding head inclinaison: 45° Spindle speed max: 5400 1/min Counter height max: 745mm Table weight: 100 kg Total weight ca. 10000 kg Werkzeugdaten: Grinding wheel-Ø max: 300mm Grinding wheel-Ø min: 80mm Width max.: 30mm bore-Ø: 160mm Siemens 840 D Alle Achsen CNC gesteuert Ölnebelabsaugung Gjdpfx Aajx Nfwae Ieil Filtration unit Hydraulic clamping Dittel balancing unit Accessories with machine available : Various grinding wheel available 1 Diamnod disc Tailstock rotative and fixed( fest und mitlaufend )
