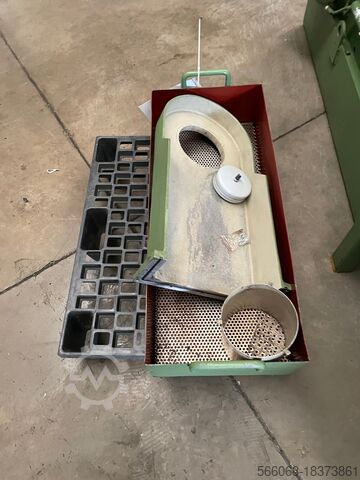

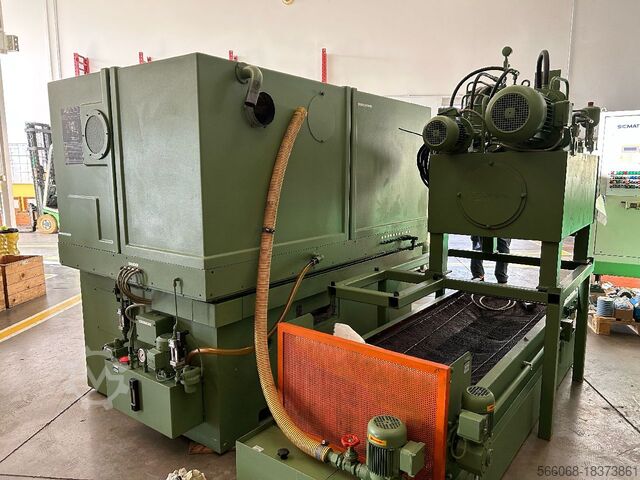

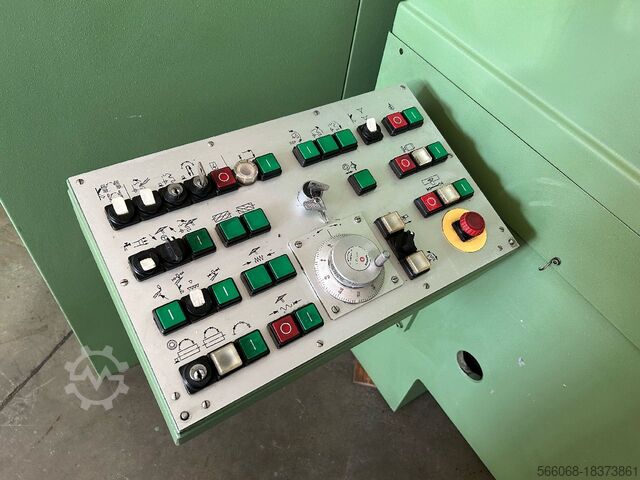

Roller milling cutter grinding machine

Klingelnberg SNC 30

Condition: excellent (used), Year of construction: 1988, TECHNICAL DATA. Max. clamping length: 90 mm Tool clamping height with tapered shank: 50 mm Tool clamping height with straight shank: 45 mm Max. helix angle: 45° Iedpowwkacefx Agdeap Number of clamping positions: 1 to 99 Max. slide travel: 550 mm Max. grinding wheel diameter: 350 mm Min. grinding wheel diameter: 150 mm Grinding wheel speed (variable): up to 2700 rpm Swivel range of grinding spindle axis: 0° to 15° Grinding slide feed rate (variable): 0.05 to 16 mm/min (with 3rd and 4th axis: 0.05 to 8 mm/min) Workpiece spindle taper: ISO Taper No. 40 Grinding Wheel Data CBN and diamond cup grinding wheel: Ø200 mm → Min. DFF: 66 (3rd axis), 76 (4th axis) Ø250 mm → Min. DFF: 16 (3rd axis), 26 (4th axis) CBN-ES cone grinding wheel: Ø200 mm → Min. DFF: 50 (3rd axis), 60 (4th axis) Ø250 mm → Min. DFF: 0 (3rd axis), 10 (4th axis)

Condition: excellent (used), Year of construction: 1992, Universal tool grinder Michael Deckel S11 very good condition !!! Technical data: >> Year of manufacture 1992 >> serial no. 1651 Clamping range : >> Clamping area of the tool slide 500 x 180mm >> Max. tool diameter between centers 130mm >> Max. Max. tool diameter with flying clamping in universal dividing head 620mm >> Max. Tool length between centers 270mm >> T-slots machine stand 12mm >> T-slots grinding head, tool slide and accessories 8mm Range of motion: >> Working paths grinding stroke 190mm grinding stroke during swirl grinding 190mm cross adjustment tool slide 100mm vertical adjustment grinding head 325mm longitudinal adjustment grinding spindle 5mm >> Coarse adjustment travel tool carrier 220mm Grinding head carrier 800mm Universal dividing head on tool slide 330mm >> Swivel angle Grinding head carrier 360 degrees Grinding head 360 degrees Tool carrier 360 degrees grinding spindle: Iaedpfx Agsm E T Ansdjp Three-phase drive motor 1.1KW at 2800 rpm Spindle speed, stepless 2000 to 10000 rpm Max. Grinding wheel diameter 125mm Max. Cutting disc diameter 200mm Djduu2 Dimensions: Weight 520 Kg Dimensions ( depth x width x height ) 800 x 1100 x 1760mm Space requirement ( including operation ) 2,5 x 2,3 m Accessories and equipment: >> Opto-electronic measuring device with microscope and digital display >> Radius grinding device SK40 >> Handwheel device for tool slide >> Suction device >> Machine lamp To the machine : Offered is a universal tool grinding machine of the brand Michael Deckel S11. The machine is suitable for grinding high-precision parts. With the S11, individual parts and small batches are ground amazingly fast, economical and flexible and with the highest ease of use. The Deckel S11 is in very good condition. Mechanically and electrically tested. Take the opportunity to inspect and try out this machine on site under power.

Year of construction: 1987, condition: ready for operation (used), Center width: 400-800mm, rotational speed: 1000-2700/min, workpiece diameter: 10-300mm, grinding wheel diameter: 40-300mm, swivel angle: -45 to 45°, length: 3000mm, width: 2500mm, height: 2275mm, with oil mist separation system Hoffmann (new filter inserts), filter system gravity belt filter Faudi, hydraulic unit, additional grinding head for grinding worm gears, grinding mandrels diameter 50, 40, 27, 22, holder for SK40 and MK5, driver sets for different clamping diameters, operating instructions, circuit diagrams in paper form, an inspection is possible. Iajdpfx Asrgahxogdop

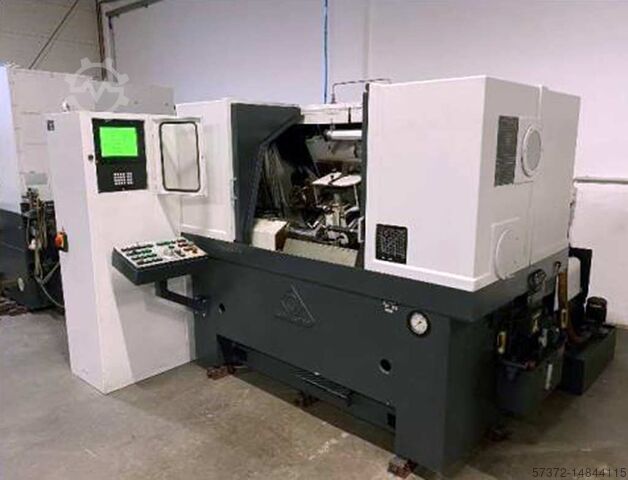

Condition: good (used), Year of construction: 1989, functionality: fully functional, machine/vehicle number: 4059, Specifications Manufacturer KLINGELNBERG Model SNC 30 Year 1989 Iaedpfxevu Digo Agdop Condition Used Serial Number 4059 Stock Number AF1534 Min-max diameter 0 - 300mm Sharpening depth 90 mm Min-max helix angle 45° Max wheel slide stroke 550 mm Min-max wheel diameter 150 - 300 mm Wheel revolutions 2700 giri/min Description Equipment Arbors Wheels other accessory Manual instructions

Condition: excellent (used), HOLEX SK40 collet chuck for ER collets – robust design, ideal for use on CNC machining centers. • Type SK40 – DIN 69871 • ER collet (diameter Ø16 mm) Iaodpfx Aow S Itbogdep • Chuck lengths: 70 mm, 100 mm, 110 mm (depending on model) • Max. speed 12,000–15,000 rpm • Torque up to 70 Nm • Balancing class G6.3 – stable operation at high speeds • Brand HOLEX – Hahn+Kolb Germany • Very good, warehouse condition • Available individually or as a larger set

Condition: good (used), functionality: fully functional, machine/vehicle number: S11-016, We are selling our Deckel S11. The machine is operational, and a digital readout can optionally be purchased as well. Iedpfx Aew A Rrvsgdjap

Condition: ready for operation (used), Year of construction: 1990, functionality: not functional, Michael Deckel S 11 tool grinding machine. The machine is operational and in good condition. Accessories: grinding wheel arbors, collets, operating manuals. Iaedpfxeyhxcce Agdop
