Tool Room Milling Machine - Universal
KNUTH MF 1V

Name: KNUTH MF 1V
Brand: KNUTH
Availability: InStock

Year of construction

2003

Condition

Used

Location

Eislingen/Fils Germany

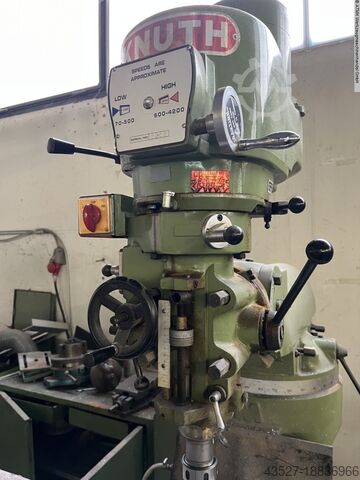

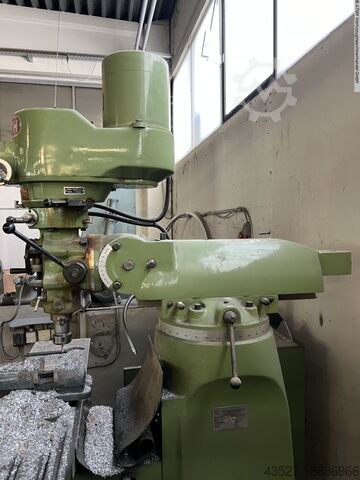

Tool Room Milling Machine - Universal KNUTH MF 1V

Machine data

Machine type:: Tool Room Milling Machine - Universal

Manufacturer:: KNUTH

Model:: MF 1V

Year of construction:: 2003

Condition:: used

Price & Location

Location:: Eislingen Hauptlager

Call

Details about the offer

Listing ID:: A167-73471

Reference number:: 1009-2319

Update:: 03.07.2026

Description

x-travel:760 mm
y-travel:290 mm
z-travel:370 mm
turning speeds:60 - 4200 U/min
table::750 x 230
quill stroke:127 mm
Laedjt U Rm Ujpfx Amvog
quill feed:(3) 0,04; 0,08; 0,13 mm/U
feed range:19 - 890 (x) mm/min
spindle cone:SK 30
column arm:171 - 476 mm
total power requirement:2,4 kVA
weight of the machine ca.:0,95 t
dimensions of the machine ca.:2,05 x 1,63 x 2,07 m

3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with
Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)
