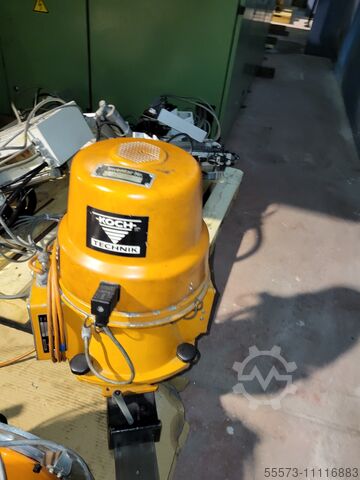

Type 603

KOCH

Condition: used, Year of construction: 2006, drilling depth: 28 mm, Used Koch Drilling and Dowel Insertion Machine, Sprint-PTP-3 Technical data of the machine: Workpiece dimensions: Length Y: 110-800mm Width X: 20-1200mm Thickness Z: 14-60mm Material: Chipboard/MDF/Softwood Machine with 2 working areas. 2 workpieces with a maximum width of 600mm each can be loaded independently of each other. Working height 900mm - with horizontal drilling station - with glue application and dowel insertion station - with 1 oscillating conveyor - Drilling distance vertically Z above the support table: 35 mm - 1 stop rail on the left and right - Mechanical digital displays for height adjustment - Work cycle triggered by a manual button Koch Numeric with 1 NC axis (X) Positioning control with PC (Windows XP Professional PC) Including widened machine frame for a maximum workpiece width of 1200mm 2 additional workpiece clamping cylinders Center stop for 4 working areas (removable for wide workpieces) Horizontal drilling station with 1 drilling spindle: Max. drilling depth 28mm Drill chuck Ø10mm Total drill length 70mm Drill speed 7200 rpm With dowel hole blow-out Glue application and dowel insertion station Dowel diameter: 8mm Dowel length 30mm Dowel projection 7-14 mm Set to 11mm Tolerance for wood dowels: --- Dowel length +/- 1 mm --- Dowel diameter +0.1/-0.2 mm With electronic glue monitoring (ELC) A monitoring device is installed before the glue valve, which measures the glue flow during each work cycle. If no glue is injected at a valve, the machine interrupts its work cycle and displays the corresponding glue valve in the control cabinet. Electrical values: Cgsdpfx Aszbunkjf Heu Connection value: 400V, 50 Hz, 3 phases Voltage fluctuations max +6% to 10% Air connection 1 x R 1/2" internal thread 7 bar Extraction air velocity: approx. 30m/sec

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, For sale: KOCH net saw—optimized for fast and precise trimming of furniture components, especially drawer sides. The machine ensures a clean, net cut (with no tears or edge defects)—a solution significantly faster than cutting on panel saws. Key features and specifications: - PLC control—automatic operation (separately retrofitted) - Buffer magazine for workpieces - Pusher beam on hydraulic system—feeds part to next operation - Maximum machine span: 2 m - Maximum feed speed: 12 m/min - Drive can be activated from both sides of the machine Cgsdpfxoyyyfye Af Hou - Top scoring saw blades for cutting components from above - Spindle speed approx. 4,500–5,000 rpm (motors: 2,100 rpm) - Complete safety covers and safety sensors - Ready production of 'drawer ribbon' (final-sized drawer banding) The top saws are used for producing complete drawer bands (ready-to-install components). Example: a 640 mm long piece is surfaced/truncated from above and divided into 3 parts, so by adding the drawer front and bottom, you have a finished drawer without any additional side processing. Performance: For a sample drawer side (350 x 100 mm): approx. 25,000–30,000 pieces per shift (highly efficient production). Location: Elbląg Loading is the responsibility of the buyer/assistance available on site. Please feel free to get in touch—I’ll be happy to answer any questions.

Condition: excellent (used), functionality: fully functional, 5 Koch conveyor separators from a cleanroom production. Only PP without glass fibers was processed! The devices are in like-new condition. One device with an additional vacuum discharge valve. 4 machine hoppers. The original price was approximately €14,500. Csdpfx Afsxdfxwj Hsgu The price is for one unit.

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, feed length X-axis: 500 mm, feed length Y-axis: 350 mm, feed length Z-axis: 350 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 350 mm, feed rate X-axis: 25 m/min, feed rate Y-axis: 25 m/min, feed rate Z-axis: 25 m/min, spindle speed (max.): 10,000 rpm, spindle speed (min.): 50 rpm, total height: 2,500 mm, total width: 5,200 mm, total length: 2,700 mm, table width: 375 mm, table length: 600 mm, table height: 120 mm, type of input current: three-phase, table load: 250 kg, overall weight: 6,000 kg, input voltage: 400 V, workpiece weight (max.): 250 kg, distance table to spindle center: 500 mm, Equipment: rotational speed infinitely variable, 1997 Heckler & Koch BA 18 – 4 Axis CNC Machining Centre – Siemens Sinumerik Machine Manufacturer: Heckler & Koch Model: BA 18 Machine Type: 4 Axis Machining Centre Year: 1997 Condition: Old but working well High-Precision German CNC Machining Centre for Sale in Ireland Used Machine Tools Ireland is pleased to offer this 1997 Heckler & Koch BA 18 4-Axis CNC Machining Centre, a robust German-built vertical milling and drilling centre renowned for accuracy, reliability, and heavy-duty construction. This machine is equipped with a Siemens Sinumerik CNC control, making it a solid choice for workshops requiring dependable CNC milling with integrated 4th-axis capability. Key Features & Highlights Heckler & Koch BA 18 CNC Machining Centre 4-Axis configuration Siemens Sinumerik CNC control Single spindle version Rigid German construction Automatic tool changer Ideal for precision milling & drilling Suitable for general engineering, toolmaking & production machining Technical Specifications – Heckler & Koch BA 18 (Single Spindle) General Machine type: Vertical Milling & Drilling Centre Axes: 4 Axis Control: Siemens Sinumerik Spindle type: Single spindle Tool holder: SK40 Cgodpfxeyatkbj Af Heu Travels (Programmable Working Area) X-Axis: 500 mm Y-Axis: 350 mm Z-Axis: 350 mm Spindle & Performance Spindle motor power: 9 kW (40% duty) Spindle speed range: Infinitely variable 50 – 10,000 rpm Torque: 50 Nm (40% duty) 35 Nm (100% duty) Power transmission: Toothed belt drive Tool System Tool magazine: Chain magazine Tool capacity: 36 tools Tool change: Automatic Average chip-to-chip time: Approx. 5 seconds Maximum tool weight: 4 kg Maximum tool diameter: 63 mm (125 mm with free auxiliary positions) Maximum tool length: 225 mm Accuracy & Feed Rates Positioning tolerance (VDI/DGQ 3441): 0.020 mm Mean position variation (X/Y): 0.008 mm Feed rates (X / Y / Z): 0 – 25 m/min Feed force per axis: 5000 N Measuring system: Rotary encoder with glass scales Table & Load Maximum table load (including table weight): 250 kg Distance table left/right: 400 mm Table to spindle nose: Max: 500 mm (620 mm without table) Min: 150 mm (270 mm without table) Electrical & Utilities Connection voltage: 3 × 380/220 V, 50 Hz Connected load: Approx. 28 kVA Pneumatic supply: Max. 8 bar Sound level at rated operation: Approx. 78 dB(A) Dimensions & Weight Machine dimensions (L × W × H): Approx. 5200 × 2700 × 2700 mm Transport dimensions: Approx. 3600 × 2000 × 2500 mm Machine weight (incl. control cabinet): Approx. 6000 kg Ideal Applications Precision CNC milling Drilling & tapping operations Toolmaking & jig work Small to medium batch production General engineering workshops Why Buy From Used Machine Tools Ireland? Trusted Irish supplier of quality used CNC machinery Machines honestly described & professionally inspected Nationwide & export delivery available Competitive pricing Notes: *Specifications are given in good faith but not guaranteed*

Condition: like new (used), Two virtually new soundproof enclosures, each designed for 4 Busch pumps from Koch Technik, are for sale. Cjdpfx Aoy Tt Dpef Hsgu Price per unit: €350 If both enclosures are purchased together, the total price is €600.

Condition: good (used), Approx. 221 Corlettes / Multi-Boxes, width 2m / 2.50m / 2.70m, partly stackable - used - : Prices (net) per unit ex location: €149 Price (net) Type 3 – stackable: €169 per unit, ex location! Manufacturer: Cordes und Koch Type: Corlette / Multi Box Dimensions (L × W × H in cm) Cgjdpfoxc E Hljx Af Hou Type 1 = 13 units (only sold as a complete lot) 250 x 115 x 180 Colour: blue Type 2 = 2 units 270 x 115 x 240 Colour: green Type 3 = 192 units, approx. 62 stackable Minimum purchase: 10 units 200 x 115 x 180 Colour: blue Type 4 = 14 units (only sold as a complete lot) 270 x 115 x 188 Colour: green Condition: good Available: immediately Location: 63128 Dietzenbach

Condition: good (used), Approx. 111 Corlettes, Cordes und Koch, width 1.30 / 2m / 2.40m – used – : Prices per unit ex location (net): Type 1 + 2 (2m wide): only €99 each Type 3 (1.30m wide): only €69 each Type 4 (2.40m wide): only €99 each For complete purchase (preferred): €8,950 (net) Manufacturer: Cordes und Koch Type: Corlette / Multi-Box Year of manufacture: unknown Collapsible Not stackable Depth: 1.15m Type 1 – approx. 70 units Width: approx. 2m Height: approx. 1.80m Type 2 – approx. 32 units Cedpfxjyhxlqo Af Hsgu Width: approx. 2m Height: approx. 1.92m Type 3 – approx. 6 units Width: approx. 1.30m Height: approx. 1.80m Type 4 – approx. 3 units Width: approx. 2.40m Height: approx. 1.80m Condition: good, see photos Available: immediately Location: Nuremberg

Condition: ready for operation (used), Year of construction: 1981, functionality: fully functional, machine/vehicle number: 8109/30, Drilling and Dowel Inserting Machine with PLC + Part Return | 8 heads For sale: a professional through-feed drilling and dowel inserting machine for the production of furniture components, particularly drawer sides. The machine is equipped with PLC control, automatic part return, and an expanded head arrangement (including rear heads), enabling the complete operation to be performed in a single pass—without re-feeding the workpiece. Technical Specifications: - Number of heads/motors: 8 - Head configuration: front/side/rear (double-sided machining in a single cycle) - Control: PLC - Part return: yes (closed production loop) - Maximum working width: 2000 mm - Power supply: 400 V - Pneumatics: yes - Year of manufacture: 1981 Codpfoyzg Udsx Af Hegu - Manufacturer: Gerhard Koch (Germany) - Condition: operational, in ongoing serial production Performance: Approx. 6,000 drawer sides per 8-hour shift Thanks to the rear heads, components that typically require two passes are processed in one, significantly reducing cycle times and increasing productivity. Applications: - Drawer sides - Cabinet components - Batch and repeat production - Automated production lines Key advantages: - Single pass processing instead of two - High repeatability - Stable, heavy-duty construction - Perfect for mass production - Proven German technology Location: Elbląg Please contact me for further information.

Condition: like new (used), functionality: fully functional, Of the total 24 material containers, 8 units are currently still available. All containers are offered without material conveying devices. Only 4 units feature an extraction box beneath the container. External dimensions are 120 x 120 x 200 cm (length x width x height). Cgjdpfxewpp Ebo Af Hju Capacity is approx. 1,250 litres. The containers are in very good condition and originate from a cleanroom production environment where only PP material was processed.

Year of construction: 1995, condition: excellent (used), The line consists of the following components: 1) Weinig Profimat 23 milling machine 2) Band Feeder KOCH -T-100-B (250x4550) Cjdpshm Exdjfx Af Hjgu 3) Weinig Uniplan milling machine 4) Band Feeder KOCH T-100-B (250x7050) 5) Tenoning machine KOCH SF -3 5a) Bottom feeding belt for waste (at tenoning machine 300x6050) 5b) Side feeding belt for wastes (at tenoning machine 300x1800) 6) Belt feeder KOCH T-100-B (250x5020) 7) Belt feeder KOCH T-100-A (300x3050) 8) Belt feeder KOCH T-100-B (300x3500) 9) Band feeder KOCH T-100-B (300x4530) 10) Weinig U2G milling machine 11) Feeding belt KOCH (250x4050) Line worked very few hours, is like new. Year of production machines included in the line is 1995. In addition, for each machine I add a set of Leitz cutters for the window with a profile of euro 68. The cost of a new line is currently more than 1 million euros.
