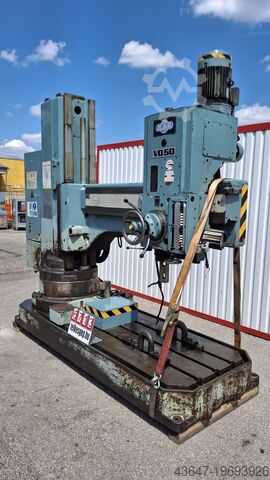

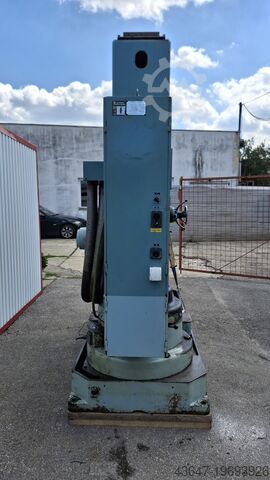

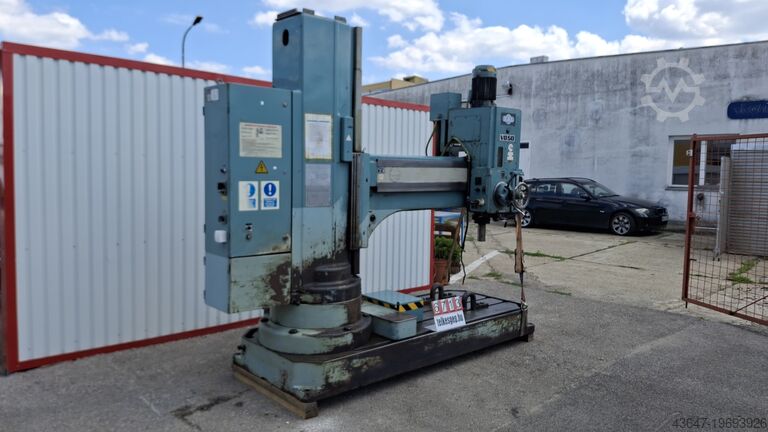

Radial Drilling Machine, Kovosvit VO 50

Kovosvit MAS VO 50

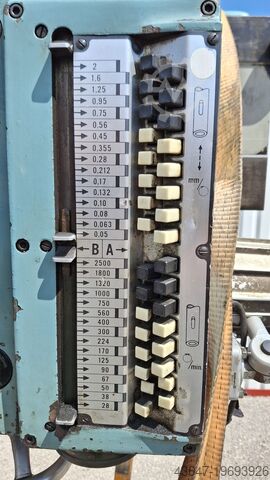

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, power: 4 kW (5.44 HP), tool diameter: 50 mm, spindle mount: MK 5, height adjustment type: electric, rotational speed (max.): 2,500 rpm, rotational speed (min.): 28 rpm, total width: 1,145 mm, total length: 3,100 mm, total height: 3,390 mm, table width: 986 mm, table length: 1,820 mm, overall weight: 4,200 kg, Equipment: documentation/manual, Morse 5 taper in the spindle, max. drilling capacity in steel Ø 50 mm, arm length 1250 mm, base clamping surface 1820 x 986 mm, max. Ø boring capacity in steel – without guide: 120 mm, with guide: 200 mm, spindle stroke: 310 mm, vertical arm travel 750 mm, spindle speed: 16 steps, range: 28-2500 rpm, feed rate 0.05 - 2 mm/min, 16 steps, spindle motor power at 1430 rpm: 4 kW, total power consumption 6 kVA, machine dimensions L x W x H: 3100 x 1145 x 3390 mm, machine weight 4200 kg, the machine can be fully tested in our warehouse in Přerov upon agreement. Hjdpfx Ajzzfbaoltont

Year of construction: 1999, condition: used, Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle axis to base plate: 320-1380mm, max. arm height adjustment: 750mm, max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°, spindle head diameter: 75h6, spindle diameter at front bearing: 55mm, length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with documentation. An on-site inspection is possible. Hnjdpfx Aszuzzisltst
