Krüsi Maschinenbau AG Krüsimatic G2

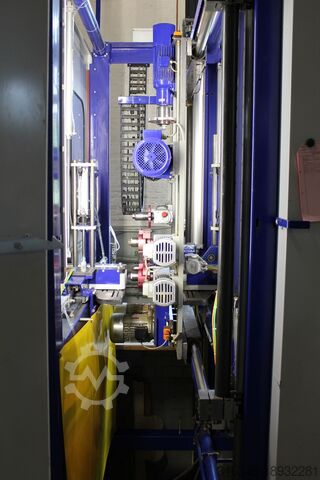

Condition: good (used), Year of construction: 1996, KRÜSI chalet building machine / log house production line type CM 40 Manufacturer Krüsi Maschinenbau AG CH-9105 Schönengrund AR Year of manufacture 1996 S/N 431 Condition: good, technically checked and cleaned / ready for operation Functional principle Machining of timber for chalet construction / log house production The beams can be processed in one pass - cutting to length - horizontal- and vertical milling of the necks / grooves in one clamping - drilling - milling the face grooves workpiece: - Cutting height max. 200nn - Cutting width max. 250mm Robust construction in welded design. Machine (horizontal and vertical milling unit) with 4 special milling motors, with hardened and ground guides for highest machining accuracy. Carriage guided by dust-protected and preloaded ball-bearing rollers. Working range up to 200 x 250 mm. Completely ready for operation, with contactor control, motors protected by thermal relays. Electrical equipment for voltage 380 V, 50 Hz, with protective bonnets, central connection for on-site chip extraction, with 2 eccentric clamps, without milling tool (folder). With hydropneumatic horizontal and vertical feed electrically controlled, Nwsdpfxou Uh T Ds Ag Nop together with the start-up of the milling motors. Rapid traverse and feed infinitely adjustable. Completely wired and installed, including air maintenance unit. Stains with a thickness of more than 14 cm must be processed in two tensions. Such patches have to be re-milled by the amount of the extra thickness. Machine protection bonnets over the moving parts with gas spring weight compensation Machine description / equipped with: 1. sawing unit: Manual feed Spindle adjustment with analogue dimension display Saw blade-Ø max. / bore-o 400 / 30 mmm Carbide tipped with chip depth limiter (synchronous operation) Adjustable riving knife Motor speed min 1 / 2900 Power kW 2,2 2. CM milling unit ( log house unit ) Hydropneumatic feed Spindle adjustment with digital dimension display Horizontal milling unit Cutter Ø 180mm cutter width max.130mm from cutter width 60 mm use only aluminium alloy cutters with reversible cutting edges 2 motors hydro-pneumatic feed kW each 2,2 Hydropneumatic feed Rapid traverse and working feed infinitely adjustable 3. drilling unit: Manual feed Spindle adjustment with analogue dimension display Drill holder collet ER 25 Clamping Ø max. mm 16 Drill Ø max. mm 32 Motor min'1 1450, kW 1,8 4. face milling unit Hydropneumatic feed Spindle adjustment with digital dimension display Fraser- Ø max. mm 230 Cutter width max. mm60 Motor min1 / 2900, kW 3,0 2 V-belts SPZ 9,5x1000 La Pneumatic On-site operating pressure min/max MPa (bar) 0.7/1 (7/10) Air consumption Nm3/h 8 Electrical system Operating voltage V / Hz 380, 50 Rated power kW 8.8 -15.8 depending on version On-site back-up fuse A 3 x 25 tr

Condition: used, Year of construction: 2010, Chalet construction machineused, good condition, little usedmake Krüsitype CMI 40year of manufacture 2010CE type-approvedbsi 140 mm round timber corner jointssaw 1xdrilling 1xrouting 3xworkpiece height 200 mmworkpiece width 250 mmweight approx. 2200 kgTotal connected load approx. kWStorage location 97447 Gerolzhofen, free loaded, unpackedHandover in actual condition as inspected,without guarantee and warranty Nedevwfqqjpfx Ag Njwp
