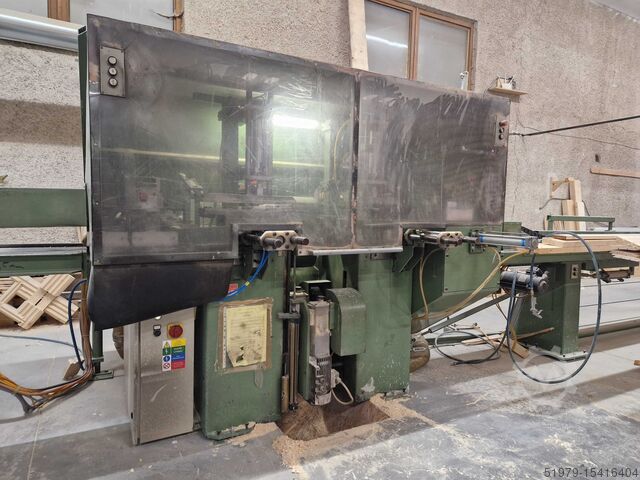

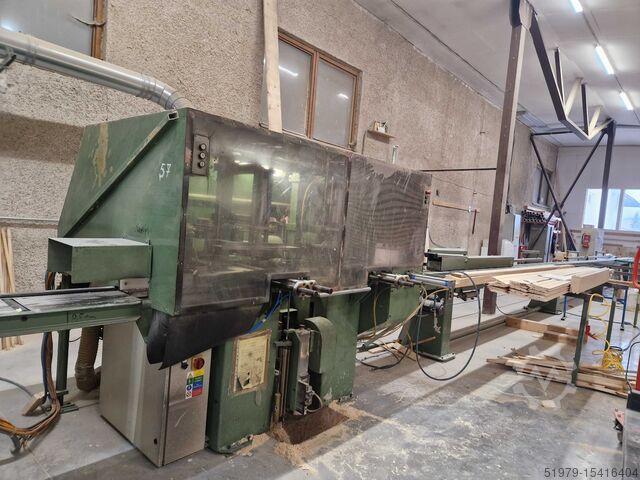

BLOCK-HOUSE CNC working centre

Krüsi CM-40

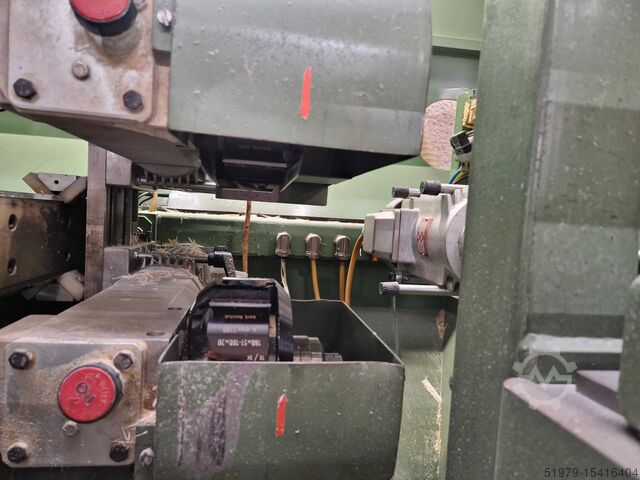

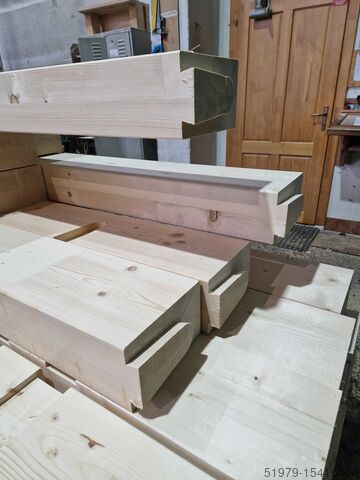

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, KRÜSI chalet building machine / log house production line type CM 40 Year of construction 2002 Krüsi CM40, consisting of the following components: Circular saw ( cross-cut saw ) Horizontal and vertical log house router Groove milling machine (horizontal) boring mill Infeed table 6m Outfeed table 6 m Ndsdjzvrf Iepfx Aa Rsa KRÜSI chalet building machine / log house production line type CM 40 Manufacturer Krüsi Maschinenbau AG CH-9105 Schönengrund AR Year of manufacture 1996 CE-marked Ie Dkovfv Tfjk Ddfetk Condition: good, technically checked and cleaned / ready for use Functional principle Processing of wood for chalet construction / log house construction The beams can be processed in a single operation - Cutting to length - Horizontal and vertical milling of necks / grooves in one clamping operation - Drilling - Milling the face grooves Workpiece: - Cutting height max. 200mm - Cutting width max. 250mm Robust construction in welded design. Machine (horizontal and vertical milling unit) with 4 special milling motors, with hardened and ground guides for maximum machining accuracy. Slide guidance with dust-protected and preloaded ball-bearing rollers. Working range up to 200 x 250 mm. Completely ready for use, with contactor control, motors protected by thermal relay. Electrical equipment for voltage 380 V, 50 Hz, with protective covers, Central connection for on-site chip extraction, with 2 eccentric clamps, without milling tool (folder). With hydropneumatic horizontal and vertical feed, electrically controlled, together with the start-up of the milling motors. Rapid traverse and feed infinitely variable. Fully wired and installed, including air maintenance unit. Patches with a thickness of more than 14 cm must be processed in two tensions. Machine description / equipped with: 1. sawing unit: Manual feed Spindle adjustment with analog dimension display Saw blade-Ø max. / bore-o 400 / 30 mmm Carbide-tipped with cutting depth limiter (synchronous operation) Adjustable riving knife Motor speed min. 1 / 2900 Power kW 2.2 2nd CM milling unit ( log house unit ) Hydropneumatic feed Spindle adjustment with digital dimension display Horizontal trimming unit Milling cutter Ø 180mm Milling cutter width max.130mm From cutter width 60 mm only use aluminum alloy cutters with reversible cutting edges 2 hydropneumatic feed motors kW 2.2 each Hydropneumatic feed Rapid traverse and work feed infinitely adjustable 3rd drilling unit: Manual feed Spindle adjustment with analog dimension display Drill holder collet ER 25 Clamping Ø max. mm 16 Drill Ø max. mm 32 Motor min'1 1450, kW 1.8 4. face milling unit Hydropneumatic feed Spindle adjustment with digital dimension display Cutter Ø max. mm 230 Cutter width max. mm60 Motor min1 / 2900, kW 3.0 2 V-belts SPZ 9.5x1000 La Pneumatic Operating pressure on site min/max MPa (bar) 0.7/1 (7/10) Air consumption Nm3/h 8 Electrical system Operating voltage V / Hz 380, 50 Rated power kW 8.8 -15.8 depending on version On-site back-up fuse A 3 x 25 tr

Condition: new, Year of construction: 2025, warranty duration: 12 months, cutting height (max.): 120 mm, cutting width (max.): 200 mm, power: 16 kW (21.75 HP), Equipment: rotational speed infinitely variable, Machine for processing components for modern log house construction with the perfect price-performance ratio for beginners, small productions, or as a supplement for special parts. Loading and positioning of the components is done manually – after starting the processing unit with the 2-hand buttons, the milling process runs automatically. Optional rolling tables and positioning stops are available for positioning the components. Njdpfx Aewnt Htja Rjda

Condition: new, Year of construction: 2025, GANNOMAT "MASTER 325" FRAME DOWEL AND MORTISE BORING MACHINE Specifically designed for staircase construction Complete in standard configuration according to price list 01/19/D, featuring: - Precision collet chuck for ER40 collets Ø 3-26 mm, incl. collets Ø 10 / 13 / 16 / 20 - Pole-switchable motor 1400/2800 rpm, 1.5 kW - Line laser with bracket - Boring unit, continuously rotatable from the front (65°-0°-65°) - Position setting via digital counter - Position adjustment for 2 levels, pneumatic (0-100 mm) - Maximum boring depth 200 mm - Precision indexing rail with 12 mm pitch with central detent and lateral adjustment 320 mm - Complete stop system consisting of: Nedexdttpepfx Aa Reda 1 center stop and 1 stop for oversized frames 1 stop rod, approx. 850 mm long (can be reversed from left to right) 2 flip stops - Mortising unit lowerable, with 2 program cams (400V, 3Ph, 50Hz, 1.5 kW) Extraction funnel, dust-tested, Ø 80 mm Double miter stop adjustable from 0°-60° Pneumatic clamping of the X-axis with on/off switch at the indexing handle Pair of auxiliary workpiece supports, swiveling (left and right) Clamp column re-positionable to the front Chassis with 4 wheels for easy machine movement 1 piece Collet extension Ø 20 mm, incl. collet for drill shank Ø 9 mm 1 piece Baluster drill bit Ø 25 mm, chrome steel, with centering tip Available: at short notice

Condition: excellent (used), Ayen drilling units with Festo control system Nsdjw I R Iaepfx Aa Reda 4 drilling units, 1.5 kW, stroke 240 mm. 2 units with bevel gear as sawing units; individual sale possible.
