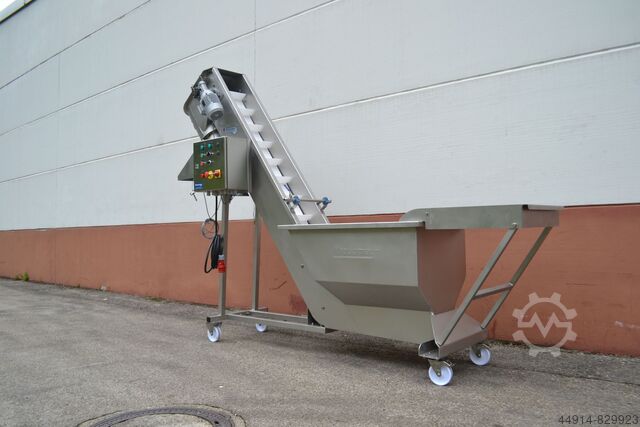

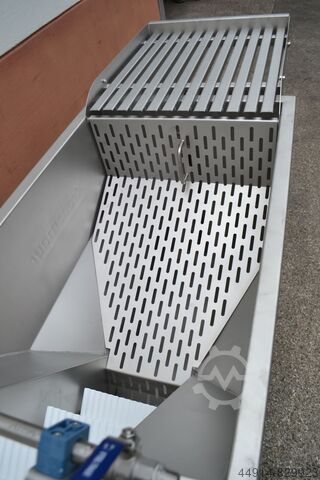

Washelevator with mill

Kreuzmayr Maschinenbau KWEM 1000

Year of construction: 2022, operating hours: 150 h, Condition: new, capacity up to 8000kg/std with grinder 5,5kW with shredder belt (plastic chain) speed steplessly adjustable Gjlo Hnafohcdwweuc Powerful blower Cleaning water circulation pump

Year of construction: 2025, Condition: new, Singlebeltpress up to 800 kg/h on fresh apples including automatic belttensioning and regulatingsystem Gusls S Un Djhcdwwsc integrated highpressure-beltcleaning-system inverter for beltspeed Wash&Grinding Unit with 3,0 Kw full stainless-steel construction

Condition: new, Year of construction: 2024, Functionality: fully functional, Technical description with the following main data: Load capacity 1000kg static line load useful stroke 775mm overall height 85 mm total height 860 mm platform length 1450 mm platform width 1140 mm Material smooth sheet metal Lifting time approx. 20 sec. for full useful stroke Lowering time load dependent E-connection 3 x 400 V/ 50 Hz + protective grounding, w. 16 A CEE-plug and 4 meter cable motor 1,1 kW Painting blue-grey RAL 7031 Gelsiwi Inohcdwwsuc Unit placement free standing Control box dead man control incl. 2 m cable Total weight approx. 270 kg Standard version: The lifting tables comply with EN 1570 E and are CE marked. The steel parts are cleaned, primed with anti-rust paint and painted with two-component polyurethane paint. The lifting tables are equipped as standard with aluminum safety shut-off bars on all sides and with mounting supports for repair and service. Our lifting tables are dimensioned for approx. 5 strokes/hour with full load in 8 hours /day. For more intensive operation we offer special lifting tables.

Year of construction: 2022, Condition: new, Kreuzmayr puree compact system for pitting and straining various fruits. 2 pcs. destoning-passing machines mounted on the frame Mash tube heater and pasteurizer for 1000 kg/h output Oil or gas burners can be added to the boiler as required Gjlehx Ebyohcdwwouc

Year of construction: 2020, Condition: new, 1000l/h Stainless steel frame on 4 adjustable feet Minimum / Maximum Level sensor in the pressure tank Guolecx Smbjhcdwwjc Stainless steel pressure vessel The product is pressed through a multi-nozzle head in the tank ; Product Pump: Inlet check valve of the product Sight glass at the inlet of the product CO2 pressure control valve for installation on the CO2 bottle Sight glass in the pressure vessel Max. Pressure : 6 bar incl . electronic control incl . booster pump

Year of construction: 2025, Condition: new, Nominal capacity 3000kg/h (depending on fruits & operating condition, up to 6000kg/h) Gslheygmwecdwwouc Yield up to 75% Belt width/length: 1000mm/approx. 7000mm Working width/high: 900mm/0-50mm continuously Belt speed continuously variable 1,0-5,2m/min Electrical supply: Drive motor 2,2 kW 400V Washing motor: 0,25 kW 400V Waterconsumption for belt cleaning: Approx. 3 l/operating minute Weight approx. 2300kg Dimensions: (lxwxh) 2750x1890x1690mm without high-pressure cleaner and without compressor

Year of construction: 2024, Condition: new, Functionality: fully functional, Kreuzmayr citrus juicer KCE 1000 Guslhcdeq Huxiswwoc Newly developed industry standard citrus juicer Hourly output Approx. 2500 kg oranges (depending on the size of the fruit) Juice yield approx. 50%, i.e. approx. 1250 l/h juice Drive power 9.0 kW Weight 700 kg Total height of the machine 2600mm Feeding height of the fruit approx. 1950mm Peel discharge screw Integrated juice finisher for fine filtration of the juice after pressing The machine can be operated with dry oranges (without washing), The juice does not come into contact with the peel, thus minimizing the amount of peel oil in the juice

Year of construction: 2025, Condition: new, lxbxh 7500x2550x3000mm stainless steel frame Guelscltl Eohcdwwec with aluminium bottom and aluminium outside walls and roof this container is made for changing systems on trucks with hydraulic feet, to lower down the platform to the ground - Central control panel (for belt press and washing elevator): it is fixed that it is not on the belt press. It is either in the center of the container or on the washing elevator. - Canvas cover: Additional hanging cover side doors: on the heater side in two parts - Water supply: Connection and system in 1" - Hydraulic system: Operation with 24V DC and 400V power supply; 24V DC magnetic valves
